SPVSseries_ALPS.pdf

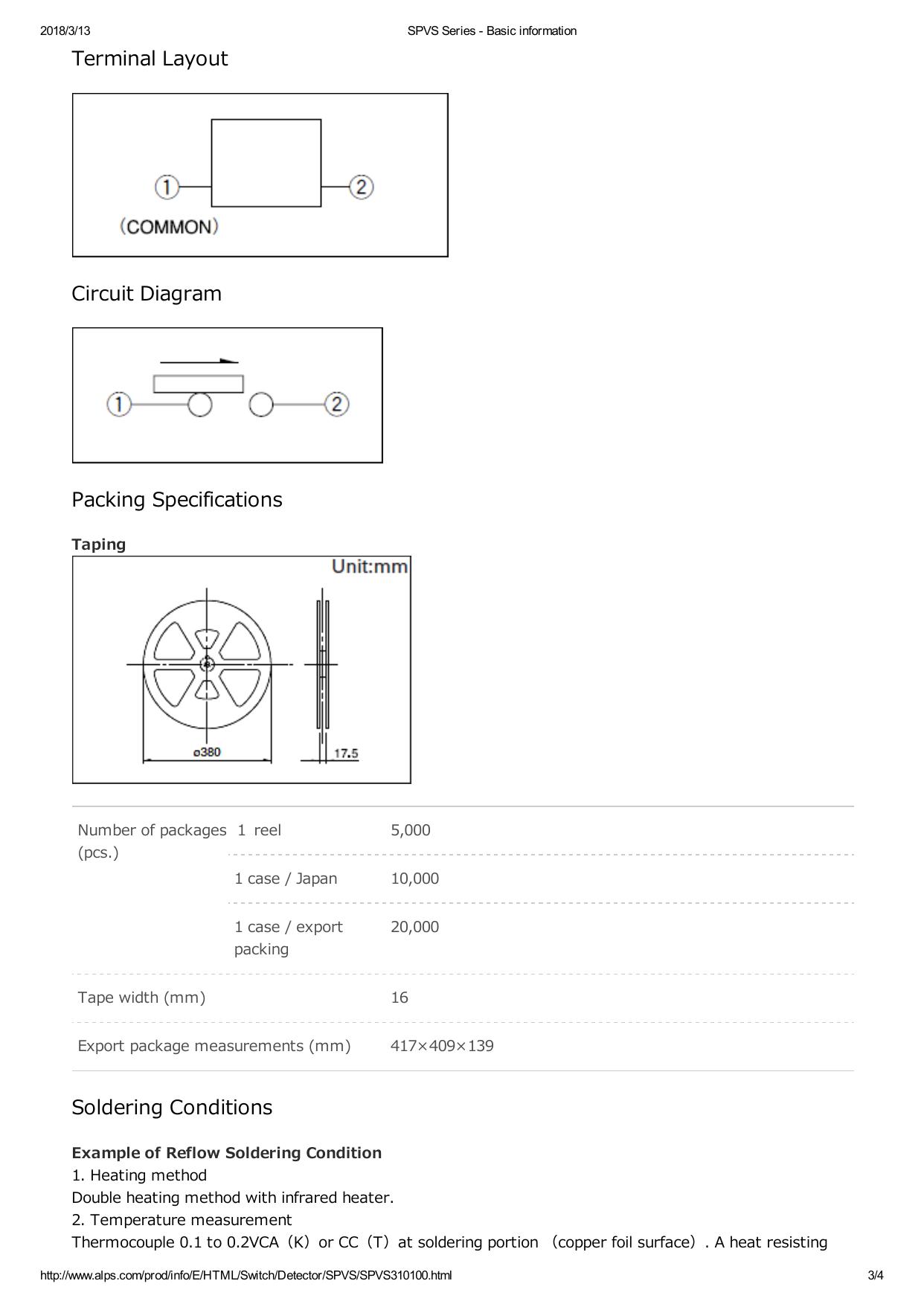

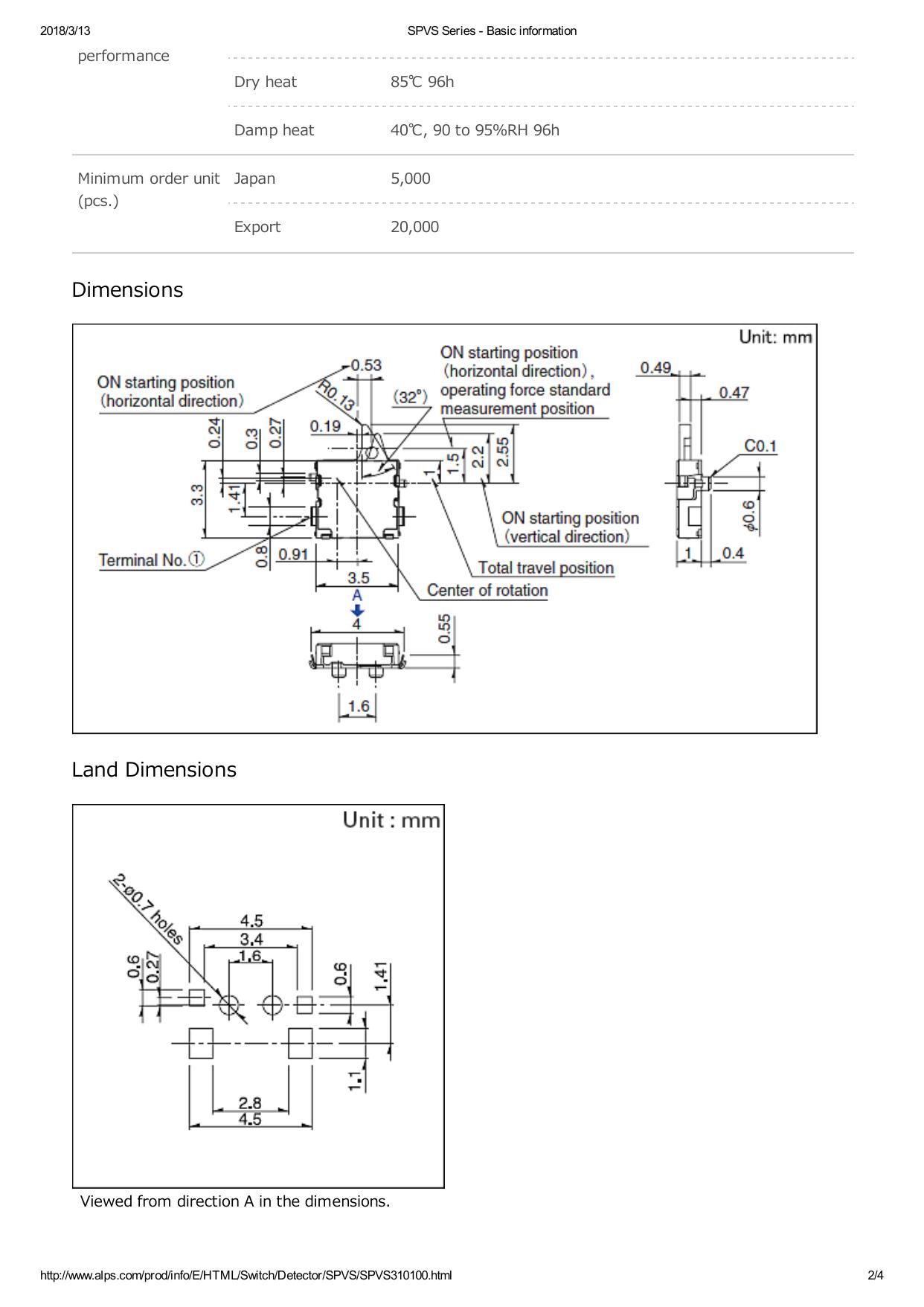

2018/3/13 SPVS Series - Basic information Compact Two-way Operation Type SPVS Series Poles 1 Positions 1 Terminal type For PC board (Reflow) Operating force 0.35N max. Lever length Standard Operating direction Right Circuit N/O Location lug With Frame leg With Operating temperature range -40℃ to +85℃ Rating (max.)/(min.) (Resistive load) 1mA 5V DC/50μA 3V DC Electrical performance 2Ω max./5Ω max. Contact resistance （Initial/After operating life） Insulation resistance 100MΩ min. 100V DC Mechanical performance Durability Voltage proof 100V AC for 1 minute Terminal strength 0.5N for 1 minute Actuator strength 5N Operating life without load 50,000 cycles 5Ω max. Operating life with 50,000 cycles 5Ω max. load Rating （max.）（Resistive load） Environmental Cold -40℃ 96h http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVS/SPVS310100.html 1/4 2018/3/13 SPVS Series - Basic information performance Dry heat 85℃ 96h Damp heat 40℃, 90 to 95%RH 96h Minimum order unit Japan (pcs.) Export 5,000 20,000 Dimensions Land Dimensions Viewed from direction A in the dimensions. http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVS/SPVS310100.html 2/4 2018/3/13 SPVS Series - Basic information Terminal Layout Circuit Diagram Packing Specifications Taping Number of packages １ reel 5,000 (pcs.) 1 case / Japan 10,000 1 case / export 20,000 packing Tape width (mm) 16 Export package measurements (mm) 417×409×139 Soldering Conditions Example of Reflow Soldering Condition 1. Heating method Double heating method with infrared heater. 2. Temperature measurement Thermocouple 0.1 to 0.2VCA（K）or CC（T）at soldering portion （copper foil surface）. A heat resisting http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVS/SPVS310100.html 3/4 2018/3/13 SPVS Series - Basic information tape should be used for fixed measurement. 3. Temperature profile A(℃) B(℃) C(s) D(℃) E(℃) F(s) 230 40 180 150 120 3s max. 260 (1) The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, surface depending on the PC board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. (2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Reference for Hand Soldering Soldering temperature 350±5℃ Soldering time 3s max. Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. This products can be used in vehicles. Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVS/SPVS310100.html 4/4
