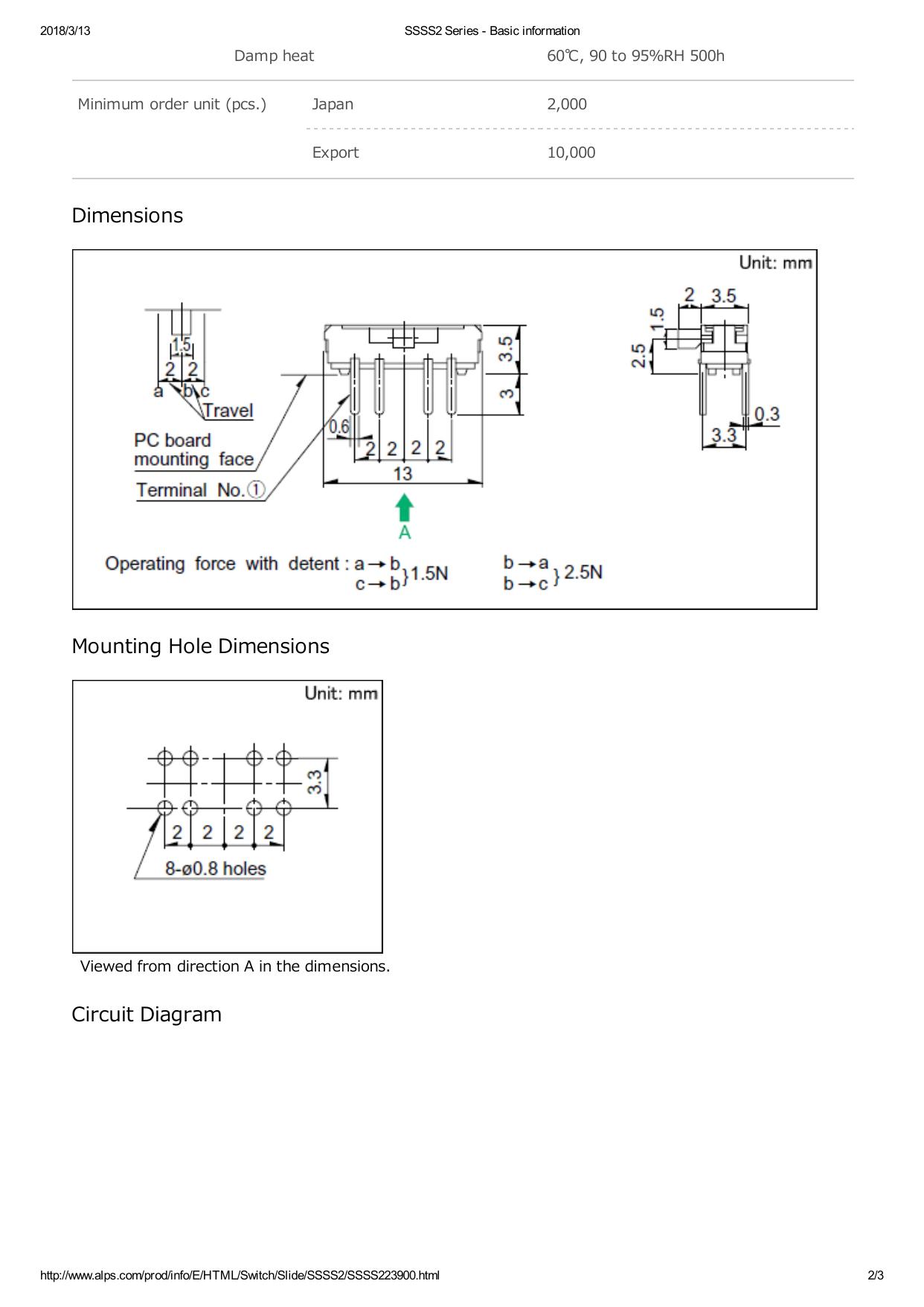

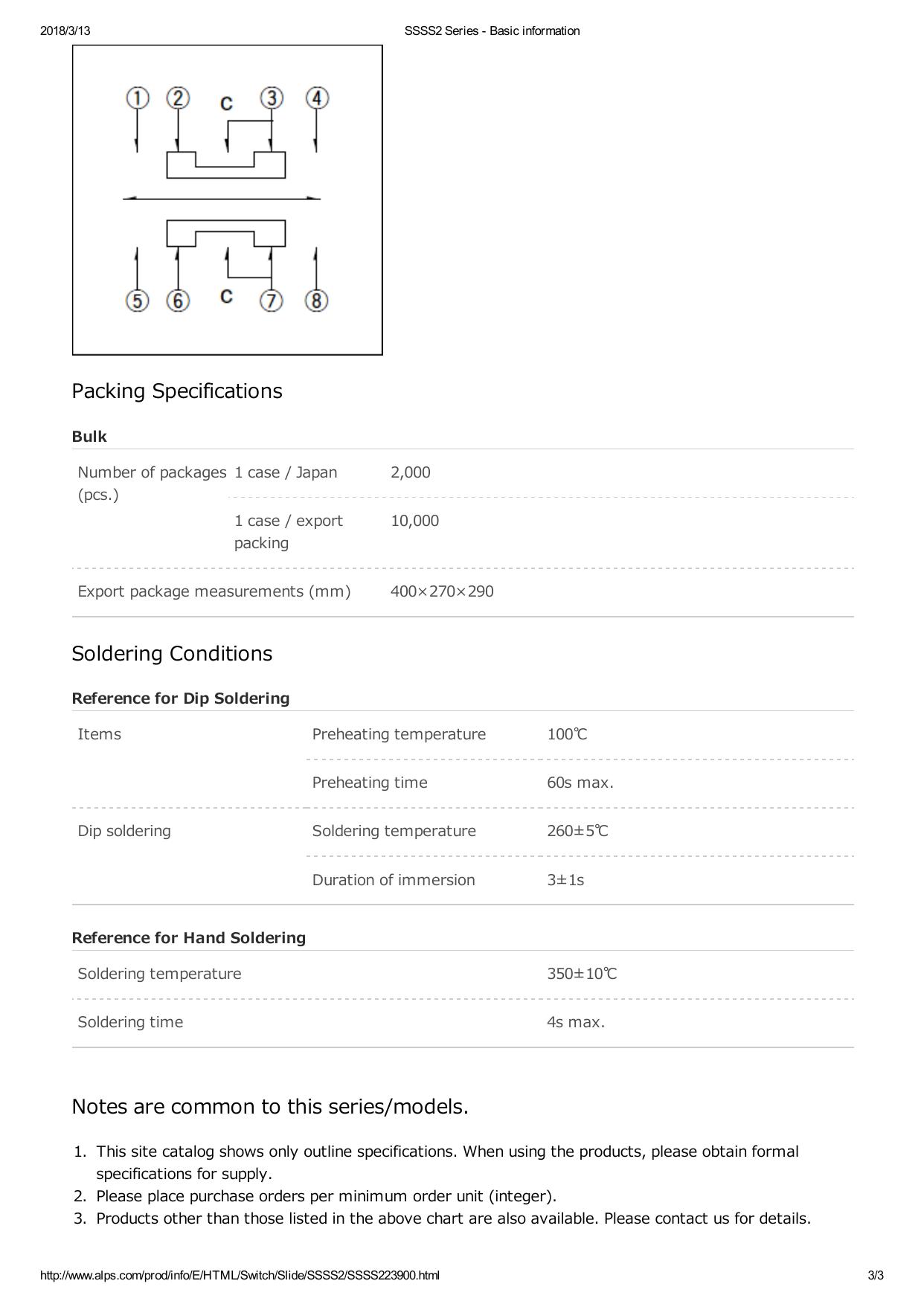

2018/3/13 SSSS2 Series - Basic information 3.5(H)mm, 2.0mm-travel Type SSSS2 Series Travel 2mm Actuator directions Horizontal Actuator length 2mm Poles 2 Positions 3 Operating force Refer to the dimensions. Changeover timing Non shorting Soldering Manual, Dip Operating temperature range -40℃ to +85℃ Rating (max.)/(min.) (Resistive load) 0.3A 6V DC/50µA 3V DC Electrical performance Contact resistance (Initial performance/After lifetime) 70mΩ max./130mΩ max. Insulation resistance 100MΩ min. 500V DC Voltage proof 500V AC for 1 minute Terminal strength 3N for 1 minute Mechanical performance Actuator strength Durability Environmental performance Operating direction 20N Pulling direction 10N Operating life without load 10,000 cycles 100mΩ max. Operating life with load (at max. rated load) 10,000 cycles 130mΩ max. Cold -20℃ 500h Dry heat 85℃ 500h http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS2/SSSS223900.html 1/3 2018/3/13 SSSS2 Series - Basic information Damp heat Minimum order unit (pcs.) 60℃, 90 to 95%RH 500h Japan 2,000 Export 10,000 Dimensions Mounting Hole Dimensions Viewed from direction A in the dimensions. Circuit Diagram http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS2/SSSS223900.html 2/3 2018/3/13 SSSS2 Series - Basic information Packing Specifications Bulk Number of packages 1 case / Japan (pcs.) 1 case / export 2,000 10,000 packing Export package measurements (mm) 400×270×290 Soldering Conditions Reference for Dip Soldering Items Dip soldering Preheating temperature 100℃ Preheating time 60s max. Soldering temperature 260±5℃ Duration of immersion 3±1s Reference for Hand Soldering Soldering temperature 350±10℃ Soldering time 4s max. Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS2/SSSS223900.html 3/3
