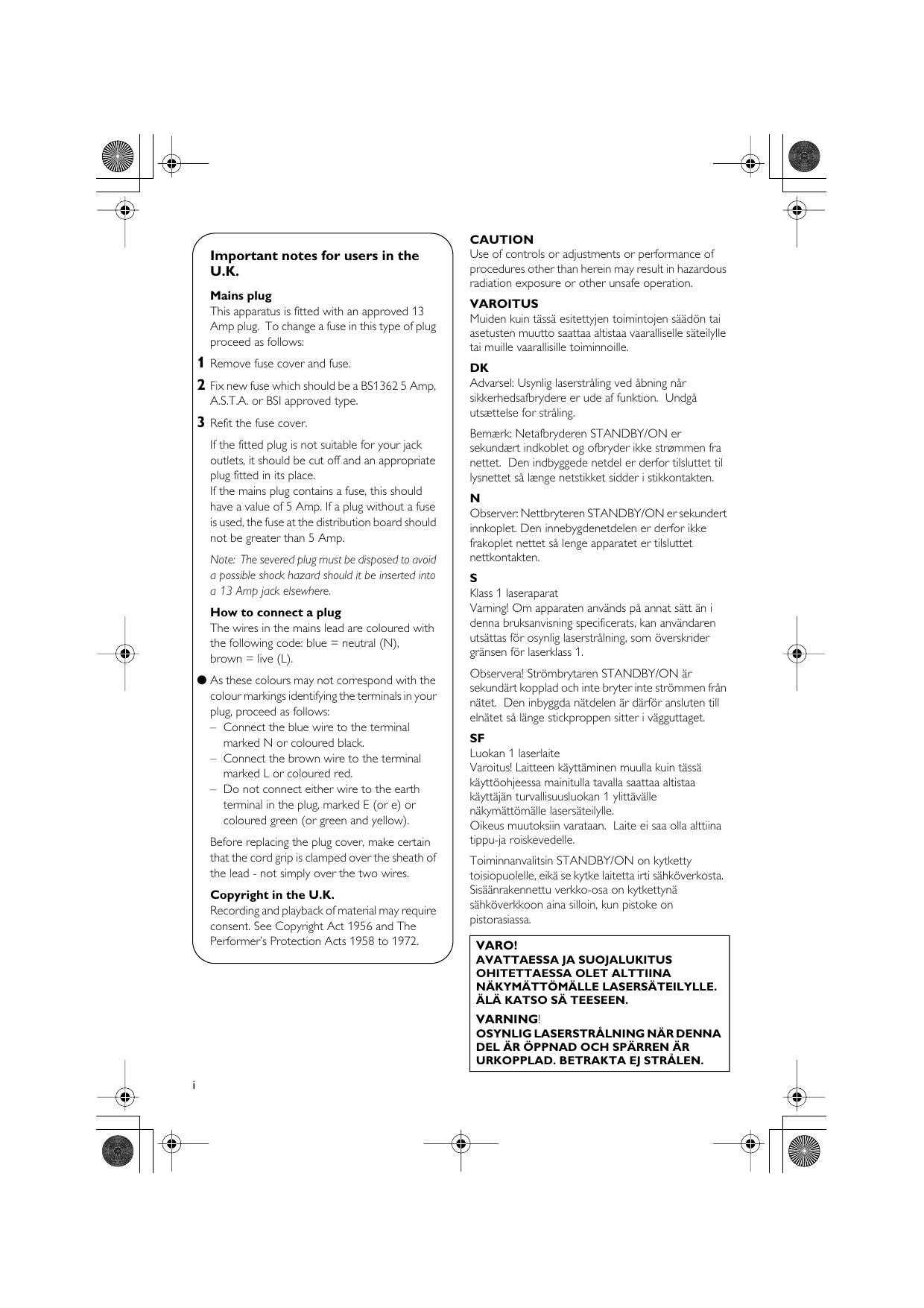

B DVD PLAYER DVD-S550 OWNER’S MANUAL Important notes for users in the U.K. Mains plug This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover. If the fitted plug is not suitable for your jack outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp. Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp jack elsewhere. How to connect a plug The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). ● As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow). Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K. Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. VAROITUS Muiden kuin tässä esitettyjen toimintojen säädön tai asetusten muutto saattaa altistaa vaaralliselle säteilylle tai muille vaarallisille toiminnoille. DK Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen STANDBY/ON er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. N Observer: Nettbryteren STANDBY/ON er sekundert innkoplet. Den innebygdenetdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten. S Klass 1 laseraparat Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1. Observera! Strömbrytaren STANDBY/ON är sekundärt kopplad och inte bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget. SF Luokan 1 laserlaite Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle. Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle. Toiminnanvalitsin STANDBY/ON on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko-osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa. VARO! AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄ TEESEEN. VARNING! OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. i CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The unit is not disconnected from the AC power source as long as it is connected to the wall outlet,even if this unit itself is turned off.This state is called the standby mode.In this state,this unit is designed to consume a very small quantity of power. ATTENTION L’emploi de commandes, de réglages ou un choix de procédures différents des spécifications de cette brochure peut entraîner une exposition à d’éventuelles radiations pouvant être dangereses. L ’appareil n ’est pas isolé de la source d ’alimentation aussi longtemps qu ’il reste branché sur une prise murale,même lorsqu ’il est éteint.Il est alors dit en mode «Veille ».Dans ce mode, l ’appareil consomme très peu de courant. ACHTUNG Die Verwendung von Bedienungselementen oder Einstellungen oder die Durchführung von Bedienungsvorgängen, die nicht in dieser Anleitung aufgeführt sind, kann zu einem Kontakt mit gefährlichen Laserstrahlen führen. OBSERVERA Användning av kontroller och justeringar eller genomförande av procedurer andra än de som specificeras i denna bok kan resultera i att du utsätter dig för farlig strålning. ATTENZIONE Uso di controlli o regolazioni o procedure non specificamente descritte può causare l’esposizione a radiazioni di livello pericoloso. PRECAUCIÓN El uso de los controles o los procedimientos de ajuste o utilización diferentes de los especificados en este manual pueden causar una exposición peligrosa a la radiación. CAUTION: INVISIBLE LASER RADIATION WHEN OPEN DO NOT STARE INTO BEAM DANGER: INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO THE BEAM Das Gerät ist nicht vom Netz getrennt, solange der Netzstecker noch mit der Wandsteckdose verbunden ist, selbst wenn das Gerät ausgeschaltet wurde. Dieser Betriebszustand wird als Bereitschaftsmodus bezeichnet. In diesem Zustand nimmt das Gerät eine sehr geringe Menge Strom auf. Enheten är inte urkopplad från nätet så länge som den är ansluten till vägguttaget även om enheten i sig självt är avstängd. Detta kallas för beredskapsläge och i detta tillstånd konsumerar apparaten minimalt med ström. L’unità non è scollegata dall’impianto elettrico di casa sintanto che rimane collegata ad una presa di corrente anche se è spenta. Questo modo viene chiamato “modo di attesa”. In esso, l’unità consuma una quantità molto bassa di energia per mantenere in memoria le impostazioni da voi fatte. Aunque el propio aparato se encuentre apagado, éste no se desconectará de la fuente de CA siempre que se mantenga enchufado a la toma de corriente. Este estado recibe el nombre de “modo de espera”. En este estado, este aparato ha sido diseñado para consumir una cantidad muy pequeña de energía. CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÆTTELSE FOR STRÅLING. ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. UNNGÅ EKSPONERING FOR STRÅLEN. VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN. VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄ TEILYLLE. ÄLÄ KATSO SÄTEESEEN. VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETSEN. DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU. ii CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. 1 2 3 4 5 6 7 8 9 10 11 12 13 iii To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference. Install this sound system in a well ventilated, cool, dry, clean place — away from direct sunlight, heat sources, vibration, dust, moisture, or cold. In a cabinet, allow about 2.5cm (1 inch) of free space all around this unit for adequate ventilation. Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds. Do not expose this unit to sudden temperature changes from cold to hot, nor locate this unit in an environment with high humidity (i.e., a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury. Avoid installing this unit in a location where foreign objects may fall onto this unit or where this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or discoloration on the surface of this unit. – Burning objects (i.e., candles), as they may cause fire, damage to this unit, and/or personal injury. – Containers with liquid in them, as they may fall, spilling the liquid and causing an electrical shock to the user and/or damage to this unit. Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury. Do not plug in this unit to a wall outlet until all connections are complete. Do not operate this unit upside-down. It may overheat, possibly causing damage. Do not use excessive force on switches, knobs and/or cords. When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord. Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth. Use only the voltage specified on this unit. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than as specified. To prevent damage by lightning, disconnect the power cord from the wall outlet during an electrical storm. 14 Do not attempt to modify or fix this unit. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reason. 15 When not planning to use this unit for long periods of time (i.e., vacation), disconnect the AC power plug from the wall outlet. 16 Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that this unit is faulty. 17 Before moving this unit, press STANDBY/ON to set the unit in standby mode, then disconnect the AC power plug from the wall outlet. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. When playing DTS encoded CDs, excessive noise will be heard from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel DTS Digital Surround™ decoder system must be connected to the digital output of the player. LASER SAFETY This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device. DANGER This unit emits visible laser radiation when open. Avoid direct eye exposure to beam. When this unit is plugged into a wall outlet, do not place your eyes close to the opening of the disc tray and other openings or look inside. Contents Introduction Region Codes....................................................................2 Supplied accessories........................................................2 Notes about discs ............................................................2 Cleaning discs....................................................................2 Patent information...........................................................2 Functional Overview Front and Rear Panels.....................................................3 Remote Control...............................................................4 Preparation General Notes on connections ....................................5 Digital Connections.........................................................5 Analog Connections........................................................5 Video Connections..........................................................6 S-Video terminal ..............................................................6 Composite Video terminal .........................................6 Component Video terminal ......................................6 SCART Connection ......................................................6 Getting Started Inserting batteries into the Remote Control ............7 Using the remote control .......................................................7 Turning on the power ....................................................7 Selecting the color system that corresponds to your TV.........................................................................7 Setting language preference...........................................8 Setting the OSD Language.....................................................8 Setting the Audio, Subtitle and Disc menu language.............................................................................................9 Disc Operations Basic Playback .................................................................10 General Operation ........................................................10 Pausing playback ........................................................................10 Selecting track/chapter...........................................................10 Searching backward/forward..............................................10 Stopping playback.....................................................................10 Selecting various repeat/shuffle functions ................11 Repeat and Shuffle ...................................................................11 Repeating a section within a chapter/track................11 Operations for video playback (DVD/VCD/SVCD) .. 11 Using the Disc Menu ..............................................................11 Zooming in...................................................................................11 Resuming playback from the last stopped point.....11 On-Screen Display (OSD) ..................................................12 Special DVD Features ...................................................13 Playing a Title ..............................................................................13 Camera Angle.............................................................................13 Audio ...............................................................................................13 Subtitles ..........................................................................................13 Special VCD & SVCD Features.................................. 13 Playback Control (PBC) ....................................................... 13 Preview Function...................................................................... 13 Playing MP3/DivX/JPEG/Kodak Picture CD............... 14 General Operation.................................................................. 14 Selecting a folder and track/file......................................... 15 Repeat and Shuffle................................................................... 15 Special picture disc features ....................................... 15 Preview Function (JPEG)...................................................... 15 Zoom picture ............................................................................. 16 Playback with multi-angles................................................... 16 Scan Effect .................................................................................... 16 Playing MP3 music and JPEG picture simultaneously ............................................................................ 16 Setup Menu General Setup menu..................................................... 17 Locking/Unlocking the disc for viewing........................ 17 Dimming player’s front panel display ............................ 17 Programming disc tracks (not for Picture CD/ MP3) ................................................................................................ 17 OSD Language........................................................................... 18 Screen Saver................................................................................ 18 Sleep Timer ................................................................................. 18 DivX® VOD registration code ........................................ 19 Audio Setup Menu ........................................................ 19 Setting the analog output .................................................... 19 Setting the Digital output..................................................... 20 CD Upsampling......................................................................... 20 Night Mode ................................................................................. 21 Video Setup Menu......................................................... 21 TV Type......................................................................................... 21 Setting the TV Display........................................................... 21 Progressive ................................................................................... 22 Picture Setting ............................................................................ 22 Switching the YUV/RGB....................................................... 23 Preference Setup Menu ............................................... 24 Audio, Subtitle, Disc Menu ................................................. 24 Restricting playback by Parental Control.................... 24 PBC (Playback Control) ....................................................... 24 MP3/JPEG Menu ....................................................................... 25 Changing the Password ........................................................ 25 Restoring to original settings.............................................. 25 Language Code .......................... 26 Troubleshooting ........................ 28 Glossary ...................................... 30 Specifications ............................. 31 1 Introduction Thank you for purchasing this unit. This Owner’s Manual explains the basic operation of this unit. – Do not use a disc printed on its surface by a commercially available label printer. Cleaning discs Region Codes DVD discs must be labeled for ALL regions or Region 2 in order to play on this Player. You cannot play Discs that are labeled for other regions. ALL 2 Supplied accessories – Remote control – Batteries (two AA size) for remote control – Audio pin cable – Video pin cable – Owner’s Manual • When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular motion. • Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog records. Patent information Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Notes about discs – This unit is designed for use with DVD video, Video CD, Super video CD, Audio CD, CD-R, CD-RW, DVD+RW, DVD+R, DVD-R and DVD-RW. This unit can play: – MP3, picture (Kodak, JPEG) files on CDR(W). – JPEG/ISO 9660 format – Maximum 30 characters display. – DivX® disc on CD-R[W]/DVD+R[W]/ DVD-R[W] (3.11, 4.x and 5.x) – CD-R and CD-RW cannot be played unless finalized. – Some discs cannot be played depending on the recording conditions such as PC environment and application software. The characteristics and condition of the discs; materials, scratches, curvature, and etc., may result in failure. – Be sure to use only CD-R and CD-RW discs made by reliable manufacturers. – Do not use any non standard shaped discs (heart, etc.) – Do not use disc with tape, scals, or paste on it, damage to the unit may result. 2 ”DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Functional Overview Front and Rear Panels STANDBY/ON – turns on this unit or sets it to the standby mode Disc tray / OPEN/CLOSE – opens or closes the disc tray PROGRESSIVE indicator – lights up when the unit enters Progressive mode 9 STOP – stops playback ; PAUSE – pauses playback B PLAY – starts playback Front panel display – shows information about the operational status of the unit * Press button for about two seconds. AC Power Cord – connects to a standard AC outlet COAXIAL digital audio output – connects to a digital (coaxial) input of your AV receiver or stereo system OPTICAL digital audio output – connects to a digital (optical) input of your AV receiver or stereo system VIDEO output (composite video out) – connects to a video input on your AV receiver AUDIO OUT (Left/Right) – connect to AUDIO inputs of your AV receiver or stereo system AV terminal – connects to a SCART cable COMPONENT video outputs – connect to an AV receiver with Y PB/CB PR/CR inputs S VIDEO output – connects to an S-Video input on your AV receiver Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit. 3 Functional Overview Remote Control TOP MENU/RETURN – display the top-level disc menu (DVD) / go back to previous menu (VCD) MENU – access menu of a disc (DVD) / switch PBC on/off (VCD) B/ | – turn this unit ON or go to standby-on mode 1 2 3 4 5 6 7 8 9 TOP MENU RETURN 0 MENU 1 2 3 4 – (left/right/up/down) select an item in the menu ENTER/OK – acknowledge menu selection ON SCREEN SETUP ON SCREEN – access or remove player’s On Screen Display menu ENTER OK STOP PLAY PAUSE SUBTITLE ANGLE ZOOM AUDIO S – search backward* / go to a previous chapter or track REPEAT A B STOP ( 9 ) – stop playback PLAY ( B ) – start playback PAUSE ( ; ) – pause playback temporarily / frame-by-frame playback REPEAT – repeat chapter, track, title, disc / shuffle chapter, track A-B – repeat a specific segment SCAN – preview the content of a track or whole disc (VCD) / play the first 6 seconds or less of each track (CD) MUTE – disable or enable sound output * Press and hold button for about two seconds. 4 0-9 numeric keypad – select numbered items in a menu SETUP – access or remove player’s setup menu SCAN MUTE DVD T – search forward* / next chapter or track SUBTITLE – subtitle language selector ANGLE – select DVD camera angle ZOOM – enlarge video image AUDIO – audio language and format selector Preparation General Notes on connections Never make or change connections with the power switched on. • Depending on the equipment you wish to connect, there are various ways you could connect this unit. Possible connections are shown in the following drawings. • Please refer to the manuals of other equipment as necessary to make the best connections. • Do not connect this unit via your VCR. The video quality could be distorted by the copy protection system. • Do not connect this unit’s audio out jack to the phono in jack of your audio system. Note: – If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all. Make sure to select the appropriate audio format at menu screen included on the disc. Pressing AUDIO once or more may change not only audio languages but also audio formats, and the selected format appears for several seconds on the status window. Analog Connections Use audio/video cable supplied with this unit to connect AUDIO OUT L (left) and R (right) jacks of this unit to corresponding input jacks of your audio equipment such as Stereo amplifier. Digital Connections This unit has COAXIAL and OPTICAL digital out jacks. Connect one or both of them to your AV receiver equipped with Dolby digital, DTS, or MPEG decoder using each specific cable (separate purchase). R L (supplied) Stereo amplifier R 1 R L CD/DVD L O C COAXIAL IN AV receiver OPTICAL IN Left speaker Right speaker Subwoofer Left front speaker Left surround speaker Center speaker Surround back speaker Right front speaker Right surround speaker You will need to set this unit’s digital output to ALL (see page 20 “DIGITAL OUTPUT”). 5 Preparation Video Connections If your AV receiver has video output jacks, connect your receiver (and then to your TV) so that you can use one TV for several different video sources (LD, VCR etc.) by simply switching the input source selector of your receiver. The player has three types of video output jacks. Use one of them in accordance with the input jacks of the equipment to be connected. S-Video terminal S (separate) video connection achieves a clearer picture than composite video connection by separating color and luminance when transmitting signals. Use commercially available S-video cable. Receiver (and TV) with S-video input is required. Composite Video terminal Use audio/video cable supplied with this unit when connecting the player to a TV. Component Video terminal (supplied)V S Y S VIDEO INPUT VIDEO PB C B PR C R COMPONENT VIDEO IN AV receiver VIDEO OUT COMPONENT VIDEO OUT S VIDEO OUT VIDEO IN COMPONENT VIDEO IN S VIDEO IN Component video connection achieves high fidelity in reproducing colors (better performance than S-video connection), separating video signal into luminance (Y, terminal color-coded as green), and color difference (Pb, blue/Pr, red). Use commercially available coaxial cables. Receiver (and TV) with component input is required. Observe the color of each jack when connecting. If your receiver does not have component output jacks, connecting the player’s component output directly to your TV’s component input can reproduce better video image. Note: – You need to set this unit’s component output to YUV (see page 23 “Switching the YUV/RGB”). SCART Connection If your TV has only terminal for video input, and you want to connect it directly to this unit, you can use this unit’s SCART output jack. Note: – Ensure that the “TV” indication on SCART cable is connected to the TV set and “DVD” indication on SCART cable is connected to this unit. 6 Getting Started Step1: Inserting batteries into the Remote Control 3 1 2 1 Open the battery compartment. 2 Insert two batteries type R06 or AA, following the indications (+ –) inside the compartment. 3 Close the cover. Using the remote control Remote control sensor Point the remote control at the sensor, within approximately 6 m (20 feet) of the unit. 30° 30° Step2: Turning on the power 1 Connect the AC power cord to the power outlet. 2 Turn on the TV and your AV receiver. 3 Select the appropriate input source at the AV receiver that was used to connect to this unit. Refer to the equipment owner’s manual for detail. 4 Turn this unit on. 5 Set the TV to the correct Video IN channel. (eg. EXT1, EXT2, AV1, AV2, AUDIO/VIDEO, etc. Refer to your TV owner’s manual for detail) ➜ The front display lights up and the default screen appears on the TV. Step3: Selecting the color system that corresponds to your TV This DVD Player is compatible with both NTSC and PAL. Select the color system that matches your TV. VIDEO SETUP PAGE TV TYPE TV DISPLAY PROGRESSIVE PICTURE SETTING COMPONENT Handling the remote control • Do not spill water or other liquids on the remote control. • Do not drop the remote control. • Do not leave or store the remote control in the following types of conditions: – high humidity such as near a bath – high temperature such as near a heater or stove – extremely low temperature – dusty places PAL NTSC MULTI 1 Press SETUP. 2 Press 2 repeatedly to select {VIDEO SETUP PAGE}. 3 Press 34 to highlight {TV TYPE}, then press 2. 7 Getting Started 4 Press 34 to highlight one of the options below: PAL Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format. NTSC Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc (VCD only) and output in NTSC format. MULTI Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc. 5 Select an item and press ENTER/OK. Helpful Hint: – Before changing the current TV Standard setting, ensure that your TV supports the ‘selected TV Type’ system. – If there is not proper picture on your TV, wait for 15 seconds for auto recover. CHANGING PAL TO NTSC 1. ENSURE THAT YOUR TV SYSTEM SUPPORTS NTSC STANDARD. 2. IF THERE IS A DISTORTED PICTURE DISPLAYED ON THE TV, WAIT 15 SECONDS FOR AUTO RECOVER. OK TIPS: 8 Cancel To return to the previous menu, press 1. To remove the menu, press SETUP. Step4: Setting language preference You can select your own preferred language settings.This DVD Player will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead. The OSD language in the system menu, will remain once selected. Setting the OSD Language GENERAL SETUP PAGE DISC LOCK DISPLAY DIM PROGRAM OSD LANGUAGE SCREEN SAVER SLEEP DIVX(R) VOD CODE ENGLISH DANISH GERMAN SPANISH FRENCH 1 Press SETUP. 2 Press 1 2 to select {GENERAL SETUP PAGE}. 3 Press 34 to highlight {OSD LANGUAGE}, then press 2. 4 Press 34 to select a language and press ENTER/OK. Getting Started Setting the Audio, Subtitle and Disc menu language PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL PBC MP3/JPEG NAV PASSWORD DEFAULT ENGLISH DANISH GERMAN SPANISH FRENCH ITALIAN DUTCH 1 Press STOP 9 twice, then press SETUP. 2 Press 2 repeatedly to select {PREFERENCE PAGE}. 3 Press 34 to highlight one of the options below at a time, then press 2. – ‘Audio’ (disc’s soundtrack) – ‘Subtitle’ (disc’s subtitles) – ‘Disc Menu’ (disc’s menu) 4 Press 34 to select a language and press ENTER/OK. If the language you want is not in the list, then select {OTHERS}, then use the numeric keypad (0-9) on the remote to enter the 4-digit language code (see page 26 “Language Code”) and press ENTER/OK. 5 Repeat steps 3–4 for other language settings. TIPS: To return to the previous menu, press 1. To remove the menu, press SETUP. 9 Disc Operations IMPORTANT! – If the inhibit icon ( or X) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – Depending on the DVD or VIDEO CD, some operations may be different or restricted. – Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player malfunction. Basic Playback 1 Press STANDBY/ON on the front panel to turn on the DVD player. 2 Press OPEN/CLOSE / on the front panel to open disc loading tray. 3 Place the chosen disc in the tray, with the label facing up. 4 Press OPEN/CLOSE / again to close the tray. ➜ After recognizing this disc, the player begin to playback automatically. ➜ If you press PLAY B when the tray is open, this unit closes the tray and starts playback. General Operation Unless otherwise stated, all operations described are based on Remote Control use. Pausing playback 1 During playback, press PAUSE ;. ➜ Playback will pause and sound will be muted. 2 Press PAUSE ; again to select the next picture frame. 3 To resume normal playback, press PLAY B. Selecting track/chapter • Press S / T or use the numeric keypad (0-9) to key in a track/chapter number. ➜ If repeat mode is active, pressing S / T will replay the same track/chapter. Searching backward/forward • Press and hold S / T, then press PLAY B to resume normal playback. ➜ While searching, pressing S / T again will decrease/increase the search speed. Stopping playback • Press STOP 9. TIPS: 10 The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. Disc Operations Selecting various repeat/shuffle functions Operations for video playback (DVD/VCD/SVCD) Repeat and Shuffle Using the Disc Menu • While playing a disc, press REPEAT continuously to choose a ‘Play Mode’. Depending on the disc, a menu may appear on the TV screen once you load in the disc. DVD To select a playback feature or item • Use 1 234 or numeric keypad (0-9) on the remote, then press ENTER/OK to start playback. ➔ RPT ONE (repeat chapter) ➔ RPT TT (repeat title) ➔ SHUFFLE (shuffle) ➔ RPT SHF (shuffle repeat) ➔ RPT OFF (repeat off) VCD/SVCD/CD ➔ RPT ONE (repeat track) ➔ RPT ALL (repeat disc) ➔ SHUFFLE (shuffle) ➔ RPT SHF (shuffle repeat) ➔ RPT OFF (repeat off) MP3/DivX ➔ RPT ONE (repeat track) ➔ RPT FLD (repeat folder) ➔ SHUFFLE (random play) ➔ RPT OFF (repeat off) Helpful Hint: – For VCD, repeat playback is not possible if the PBC mode is switched on. Repeating a section within a chapter/track To access or remove the menu • Press MENU on the remote. Zooming in This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture. 1 During playback, press ZOOM repeatedly to display the picture with different scales. ➜ Use 1 234 to pan through the enlarged picture. ➜ Playback will continue. 2 Press ZOOM repeatedly to return to the original size. Resuming playback from the last stopped point 1 While playing a disc, press A-B at your chosen starting point. 2 Press A-B again at your chosen end point. ➜ The section A and B can be set only within the same chapter/track. ➜ The section will now repeat continuously. Resume playback of the last 10 discs is possible, even if the disc was ejected or the power switched off. • Load one of the last 10 discs. ➜ “LOADING” appears. • Press PLAY B and the disc will be played back from the last point. 3 To exit the sequence, press A-B. To cancel resume mode • In stop mode, press STOP 9 again. TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. 11 Disc Operations On-Screen Display (OSD) OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback. 1 During playback, press ON SCREEN. ➜ A list of available disc information appears on the TV screen. DVD MENU TITLE CHAPTER AUDIO SUBTITLE 02/14 02/14 5.1CH ENG BITRATE VCD/SVCD MENU TRACK DISC TIME TRACK TIME REPEAT 02/14 0:49:17 0:03:43 OFF BITRATE 2 Press 34 to view the information and press ENTER/OK to access. 3 Use the numeric keypad (0-9) to input the number/time or press 34 to make the selection, then press ENTER/OK to confirm. ➜ Playback will change to the chosen time or to the selected title/chapter/track. Title/Chapter/Track selection (DVD/ VCD) 1 Press 34 to select {TITLE} or {CHAPTER} (DVD) or {TRACK} (VCD). 2 Press ENTER/OK. 3 Select a title, chapter or track number using the numeric buttons. TIPS: 12 Time Search (DVD/VCD) 1 Press 34 to select {TT TIME} or {CH TIME} (DVD) or {TRACK TIME} or {DISC TIME} (VCD). ➜ {TT TIME} refers to the total time of the current title, and the {CH TIME} refers to the total time of the current chapter. 2 Press ENTER/OK. 3 Enter hours, minutes and seconds from left to right using the numeric buttons. (e.g. 0:34:27) Audio/Subtitle/Angle (DVD) You can change {AUDIO}, {SUBTITLE} or {ANGLE} if available on the disc you are playing. 1 Press 34 to select {AUDIO}, {SUBTITLE} or {ANGLE}. 2 Press ENTER/OK. 3 For Audio and Subtitle, Press 34 to highlight your selection and press ENTER/OK. or For Angle, Select an angle using the numeric buttons. Repeat/Time Display (DVD/VCD) 1 Press 34 to select {REPEAT} or {TIME DISP.}. 2 Press ENTER/OK. 3 Press 34 to highlight your selection and press ENTER/OK. Time display (CD) Each time you press ON SCREEN, the time display changes as follows; Total Elapsed Total Remain Single Remain Single Elapsed The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. Disc Operations Special DVD Features Playing a Title 1 Press MENU. ➜ The disc title menu appears on the TV screen. 2 Use 1 234 or numeric keypad (0-9) to select a play option. 3 Press ENTER/OK to confirm. Camera Angle • Press ANGLE repeatedly to select different desired angle. Audio Changing the Audio Language and/or format • Press AUDIO repeatedly to select different audio languages. Special VCD & SVCD Features Playback Control (PBC) For VCD with Playback Control (PBC) feature (version 2.0 only) • Press MENU to toggle between ‘PBC ON’ and ‘PBC OFF’. ➜ If you select ‘PBC ON’, the disc menu (if available) will appear on the TV. ➜ Use the S / T or the numeric keypad (0-9) to select a play option. • During playback, pressing TOP MENU/RETURN will return to the menu screen (if PBC is on). If you want to skip the index menu and playback directly from the beginning, • Press MENU on the remote control to switch to PBC off. Preview Function Subtitles • Press SUBTITLE repeatedly to select different subtitle languages. 1 Press SCAN. 2 Press 34 to highlight {TRACK DIGEST}, {DISC INTERVAL} or {TRACK INTERVAL}. 3 Press ENTER/OK to open one option. SELECT DIGEST TYPE: TRACK DIGEST DISC INTERVAL TRACK INTERVAL Note: – You can select {TRACK INTERVAL} only during playback, with PBC Off. TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. 13 Disc Operations TRACK DIGEST This function will minimize the picture of every track in order to display every six of these tracks on the screen to help you know the content of every track on the disc. DISC INTERVAL This function is used to divide a disc into six parts by regular intervals and display them on one page to preview the whole disc. TRACK INTERVAL This function is used to divide a single track into six parts by regular intervals and display them on one page to help you preview the selected track. Playing MP3/DivX/JPEG/Kodak Picture CD General Operation 1 Load a disc. ➜ The disc reading time may exceed 30 seconds due to the complexity of the directory/file configuration. ➜ The data disc menu appears on the TV screen. 2 Playback will start automatically. If not press PLAY B. 00:00 00:00 001/020 Favorite MP3 Piano MP3 Cello MP3 Jazz MP3 Live (example for 6 thumbnail pictures display) 4 Use 1 234 to select a track or use numeric keypad (0-9) to input the selected track number next to {SELECT}. 5 Press S / T to open the previous or next page. 6 Press ENTER/OK to confirm. To quit preview function • Use 1 234 to highlight {EXIT} and press ENTER/OK to confirm. During playback, you can; • Press S / T to select another track/file in the current folder. • Press ; to pause playback. Helpful Hint: – It may not be possible to play certain MP3/ JPEG/DivX/MPEG-4 disc due to the configuration and characteristics of the disc or condition of the recording. To return to preview menu • Use 1 234 to highlight {MENU} and press ENTER/OK to confirm. For CD • At stop mode, press SCAN on the remote control. ➜ Each track will be played for a few seconds. TIPS: 14 The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. Disc Operations Selecting a folder and track/file Special picture disc features 1 Press 34 to select the folder and press ENTER/OK to open the folder. 2 Press 34 to select a track/file. 3 Press ENTER/OK to confirm. ➜ Playback will start from the selected file to the end of the folder. 1 Load a Picture disc (Kodak Picture CD, JPEG). ➜ For Kodak disc, the slide show will begin. ➜ For JPEG disc, the picture menu appears on the TV screen. Repeat and Shuffle When the Picture CD/MP3 CD menu is shown on the screen; • Press REPEAT continuously to access different ‘Play Mode’. ➜ FOLDER: files will be played back once. ➜ REPEAT ONE: one file being played repeatedly. ➜ REPEAT FOLDER: all files in one folder being played repeatedly. ➜ SHUFFLE: all files in the current folder being played at random order. 2 Press PLAY B to start the slide-show playback. Preview Function (JPEG) This function shows the content of the current folder or the whole disc. 1 Press STOP 9 during playback. ➜ 12 thumbnail pictures will appear on the TV screen. 2 Press S / T to display the other pictures on the previous/next page. 3 Use 1 234 to highlight one of the picture and press ENTER/OK to start playback OR Move the cursor to highlight on the bottom of the page to start playback from the first picture on the current page. 4 Press MENU to return to Picture CD menu. TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. 15 Disc Operations Zoom picture 1 During playback, press ZOOM repeatedly to display the picture with different scales. 2 Use 1 234 to view the zoomed picture. Playback with multi-angles 1 Load a disc that contains music and picture. ➜ The disc menu appears on the TV screen. • During playback, press 1 234 to rotate the picture on the TV screen. 1: rotate the picture anti-clockwise 2: rotate the picture clockwise 3: flip the picture vertically 4: flip the picture horizontally 2 Select an MP3 track. 3 During MP3 music playback, select a picture from the TV screen and press PLAY B. ➜ The picture files will be played back one after another until end of the folder. Scan Effect 4 To quit simultaneous playback, press MENU followed by STOP 9. • Press ANGLE repeatedly to choose different scan effect. ➜ Various of scan effect appears on the top left hand corner on the TV screen. TIPS: 16 Playing MP3 music and JPEG picture simultaneously Helpful Hint: – Some files on Kodak or JPEG disc may be distorted during playback due to the configuration and characteristics of the disc. The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. Setup Menu The setup is carried out via the TV, enabling you to customize the DVD Player to suit your particular requirements. General Setup menu 1 Press SETUP. 2 Press 1 2 to select ‘General Setup’ icon. 3 Press ENTER/OK to confirm. GENERAL SETUP PAGE DISC LOCK DISPLAY DIM PROGRAM OSD LANGUAGE SCREEN SAVER SLEEP DIVX(R) VOD CODE Dimming player’s front panel display You can select different levels of brightness for the front panel display. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {DISPLAY DIM}, then press 2. 100% Select this for full brightness. 70% Select this for medium brightness. 40% Select this for dimming the display. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. Programming disc tracks (not for Picture CD/MP3) Locking/Unlocking the disc for viewing Not all discs are rated or coded by the disc maker. You can prevent a specific disc from playing by locking the disc. Up to 40 discs can be locked. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {DISC LOCK}, then press 2. LOCK Select this to block the playback of the current disc. Subsequent access to a locked disc requires six-digit password. The default password is ‘000 000’ (see page 25 “Changing the Password”). UNLOCK Select this to unlock the disc and allow future playback. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. TIPS: You can play the contents of the disc in the order you want by programming the tracks to be played. Up to 20 tracks can be stored. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {PROGRAM}, then press 2 to select {INPUT MENU}. 2 Press ENTER/OK to confirm. 1 04 6 __ 2 10 7 __ 3 11 8 __ 4 __ 9 __ 5 __ 10 __ To return to the previous menu, press 1. To remove the menu, press SETUP. 17 Setup Menu To input your favorite tracks/chapter 3 Use the numeric keypad (0-9) to enter a valid track/chapter number. 4 Use 1 234 to move the cursor to the next position. ➜ If the track number is more than ten, press T to open the next page and proceed with programming or, ➜ Use 1 234 to highlight {NEXT} on the program menu, then press ENTER/ OK. 5 Repeat steps 3–4 to input another track/ chapter number. If you want to remove a track 6 Use 1 234 to move the cursor to the track you want to remove. 7 Press ENTER/OK to remove this track from the program menu. To start program playback 8 Use 1 234 to highlight {START} on the program menu, then press ENTER/OK. ➜ Playback will start with the selected tracks under the programmed sequence. To exit program playback 9 Use 1 234 to highlight {EXIT} on the program menu, then press ENTER/OK. OSD Language This menu contains various language options for display language on the screen. For details, see page 8. Screen Saver This function is used to turn the screen saver on or off. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {SCREEN SAVER}, then press 2. ON Select this if you wish to turn off the TV screen when disc playback is stopped or paused for more than 15 minutes. OFF Select this to disable the screen saver function. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. Sleep Timer This feature automatically sets the DVD player in standby mode after the amount of time you have set. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {SLEEP}, then press 2. 2 Press 34 to select a setting. ➜ You can select from 15, 30, 45 and 60 minutes. Select {OFF} to cancel the sleep timer function. 3 Press ENTER/OK to confirm your selection. TIPS: 18 To return to the previous menu, press 1. To remove the menu, press SETUP. Setup Menu DivX® VOD registration code Yamaha provide you with the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit at www.divx.com/vod. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {DIVX(R) VOD CODE}, then press 2. ➜ The registration code will appear. 2 Press ENTER/OK to exit. 3 Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player. Helpful Hints: – All the downloaded videos from DivX® VOD can only be played back on this DVD player. – Time search feature is not available during DivX movie playback. TIPS: Audio Setup Menu 1 Press SETUP. 2 Press 1 2 to select ‘Audio Setup’ icon. 3 Press ENTER/OK to confirm. AUDIO SETUP PAGE ANALOG OUTPUT DIGITAL AUDIO CD UPSAMPLING NIGHT MODE Setting the analog output Set Analog Output to match your DVD Player’s playback capability. 1 In ‘AUDIO SETUP PAGE’, press 34 to highlight {ANALOG OUTPUT}, then press 2. STEREO Select this to change channel output to stereo which delivers sound from only the two front speakers. LT/RT Select this if your DVD player is connected to a Dolby Prologic decoder. VIRTUAL SURROUND Select this to reproduce the surround channels virtually. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. To return to the previous menu, press 1. To remove the menu, press SETUP. 19 Setup Menu Setting the Digital output The options included in Digital Audio are: ‘Digital Output’ and ‘LPCM Output’. In ‘AUDIO SETUP PAGE’, press 34 to highlight {DIGITAL AUDIO}, then press 2. Press the 34 to highlight an option. Enter its submenu by pressing 2. Move the cursor by pressing the 34 to highlight the selected item. 1 2 3 4 DIGITAL OUTPUT Set the Digital output according to your optional audio equipment connection. OFF Turn off the digital output. ALL If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/ receiver. PCM ONLY Only if your receiver is not capable of decoding multi-channel audio. LPCM OUTPUT If you connect the DVD Player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc., you may need to adjust ‘LPCM Output’. Discs are recorded at a certain sampling rate. The higher the sampling rate, the better the sound quality. 48K Playback a disc recorded at the sampling rate of 48kHz. 96kHz (if available on disc) PCM data stream will be converted to 48kHz. TIPS: 20 To return to the previous menu, press 1. To remove the menu, press SETUP. 96K Playback a disc recorded at the sampling rate of 96kHz. If the 96kHz disc is copy protected, the digital output will be muted to comply with the standards. CD Upsampling This feature allows you to convert your music CD to a higher sampling rate using sophisticated digital signal processing for better sound quality. If you have activated the upsampling, the player will automatically switch to stereo mode. 1 In ‘AUDIO SETUP PAGE’, press 34 to highlight {CD UPSAMPLING}, then press 2. OFF Select this to disable CD-upsampling. 88.2 kHz (X2) Select this to convert the sampling rate of the CDs twice higher than the original. 176.4 kHz (X4) Select this to convert the sampling rate of the CDs four times higher than the original. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. Note: – This setting is only applicable for the signals output from the analog jacks. Setup Menu Night Mode In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favorite action movie without disturbing others at night. 1 In ‘AUDIO SETUP PAGE’, press 34 to highlight {NIGHT MODE}, then press 2. ON Select this to level out the volume. This feature is only available for movies with Dolby Digital mode. OFF Select this when you want to enjoy the surround sound with its full dynamic range. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. Video Setup Menu 1 Press SETUP. 2 Press 1 2 to select ‘Video Setup’ icon. 3 Press ENTER/OK to confirm. VIDEO SETUP PAGE TV TYPE TV DISPLAY PROGRESSIVE PICTURE SETTING COMPONENT Setting the TV Display Set the aspect ratio of the DVD Player according to the TV you have connected. The format you select must be available on the disc. If it is not, the setting for TV display will not affect the picture during playback. 1 In ‘VIDEO SETUP PAGE’, press 34 to highlight {TV DISPLAY}, then press 2. 2 Press 34 to highlight one of the options below: 4:3 PAN SCAN Select this if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen. 4:3 LETTER BOX Select this if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed. 16:9 Select this if you have a widescreen TV. 3 Select an item and press ENTER/OK. TV Type This menu contains the options for selecting the color system that matches the connected TV. For details, see page 7. TIPS: To return to the previous menu, press 1. To remove the menu, press SETUP. 21 Setup Menu Progressive This feature is only applicable if you have connected this DVD Player to a Progressive Scan TV through the Y Pb Pr jacks (see page 6). 1 In ‘VIDEO SETUP PAGE’, press 34 to highlight {PROGRESSIVE}, then press 2. OFF To disable Progressive Scan function. ON To enable Progressive Scan function. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. Notes on activating Progressive: – Ensure that your TV has progressive scan. – Connect with YPbPr video cable. CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE “STANDARD DEFINITION” OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR VIDEO MONITOR COMPATIBILITY WITH THIS MODEL 525P AND 625P DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. This unit is compatible with the complete line of YAMAHA products, including the projectors DPX1000, LPX-510 and the plasma monitor PDM4210E. TIPS: 22 To return to the previous menu, press 1. To remove the menu, press SETUP. Picture Setting This DVD Player provides three predefined sets of picture color settings and one personal setting which you can define yourself. 1 In ‘VIDEO SETUP PAGE’, press 34 to highlight {PICTURE SETTING}, then press 2. STANDARD Select this for standard picture setting. BRIGHT Select this will make the TV picture brighter. SOFT Select this will make the TV picture softer. PERSONAL Select this to personalize your picture color by adjusting the brightness, contrast, tint and color (saturation). 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. 3 If you select {PERSONAL}, then proceed to steps 4–7. ➜ The ‘PERSONAL PICTURE SETUP’ menu appears. PERSONAL PICTURE SETUP BRIGHTNESS CONTRAST TINT COLOR 0 0 0 0 Setup Menu 4 Press 34 to highlight one of the following options. BRIGHTNESS Increase the value will brighten the picture or vice versa. Choose zero (0) for average setting. CONTRAST Increase the value will sharpen the picture or vice versa. Choose zero (0) to balance the contrast. TINT Increase the value will darken the picture or vice versa. Choose zero (0) for average setting. Switching the YUV/RGB This setting allows you to toggle the output of the video signal between RGB (on scart) and Y Pb Pr (YUV). 1 In ‘VIDEO SETUP PAGE’, press 34 to highlight {COMPONENT}, then press 2. YUV Select this for Y Pb Pr connection. RGB Select this for Scart connection. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. COLOR Increase the value will enhance the color in your picture or vice versa. Choose zero (0) to balance the color. 5 Press 1 2 to adjust the setting that best suit your personal preference. 6 Repeat steps 4–5 for adjusting other color features. 7 Press ENTER/OK to confirm. TIPS: To return to the previous menu, press 1. To remove the menu, press SETUP. 23 Setup Menu Preference Setup Menu 1 Press STOP 9 twice to stop playback (if any), then press SETUP. 2 Press 1 2 to select the ‘Preference Setup’ icon. 3 Press ENTER/OK to confirm. PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL PBC MP3/JPEG NAV PASSWORD DEFAULT Audio, Subtitle, Disc Menu These menus contain various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 9. Restricting playback by Parental Control Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes. TIPS: 24 To return to the previous menu, press 1. To remove the menu, press SETUP. 1 In ‘PREFERENCE PAGE’, press 34 to highlight {PARENTAL}, then press 2. PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL PBC MP3/JPEG NAV PASSWORD DEFAULT 1 KID SAFE 2G 3 PG 4 PG 13 5 PGR 6R 7 NC 17 8 ADULT 2 Press 34 to highlight a rating level for the disc inserted and press ENTER/OK. ➜ To disable Parental controls and have all Discs play, select {8 ADULT}. 3 Use the numeric keypad (0-9) to enter the six-digit password (see page 25 “Changing the Password”). ➜ DVDs that are rated above the level you selected will not play unless you enter your six-digit password. Helpful Hints: – VCD, SVCD, CD have no level indication, so parental control function has no effect on these type of discs. This applies to most illegal DVD discs. – Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs. PBC (Playback Control) You can set the PBC to ON or OFF. This feature is available only on Video CD 2.0 with playback control (PBC) feature. For details, see page 13. Setup Menu MP3/JPEG Menu MP3/JPEG Navigator can be set only if the disc is recorded with menu. It allows you to select different display menus for easy navigation. 1 In ‘PREFERENCE PAGE’, press 34 to highlight {MP3/JPEG NAV}, then press 2. WITHOUT MENU Select this to display all the files contained in the MP3/Picture CD. WITH MENU Select this to display only the folder menu of the MP3/Picture CD. 2 Press 34 to select a setting, then press ENTER/OK to confirm your selection. Changing the Password The same password is used for both Parental Control and Disc Lock. Enter your six-digit password when prompted on the screen. The default password is 000 000. 1 In ‘PREFERENCE PAGE’, press 34 to highlight {PASSWORD}, then press 2 to select {CHANGE}. PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL PBC MP3/JPEG NAV PASSWORD DEFAULT TIPS: CHANGE 2 Press ENTER/OK to enter the ‘Password Change Page’. OLD PASSWORD NEW PASSWORD CONFIRM PWD OK 3 Use the numeric keypad (0-9) to enter your old six-digit password. ➜ When doing this for the first time, key in ‘000 000’. ➜ If you forget your old six-digit password, key in ‘000 000’. 4 Enter the new six-digit password. 5 Enter the new six-digit password a second time to confirm. ➜ The new six-digit password will now take effect. 6 Press ENTER/OK to confirm. Restoring to original settings Setting the DEFAULT function will reset all options and your personal settings to the factory defaults, except your password for Parental Control and Disc Lock. 1 In ‘PREFERENCE PAGE’, press 34 to highlight {DEFAULT}, then press 2 to select {RESET}. 2 Press ENTER/OK to confirm. ➜ All settings will now reset to factory defaults. To return to the previous menu, press 1. To remove the menu, press SETUP. 25 Language Code These pages can be used to select other languages.This does not affect the options in “AUDIO”, “SUBTITLE” or “DISC MENU”. Abkhazian Afar Afrikaans Albanian Amharic Arabic Armenian Assamese Avestan Aymara Azerbaijani Bashkir Basque Belarusian Bengali Bihari Bislama Bokmål, Norwegian Bosnian Breton Bulgarian Burmese Castilian, Spanish Catalan Chamorro Chechen Chewa; Chichewa; Nyanja Chichewa; Chewa; Nyanja Chinese Chuang; Zhuang Church Slavic; Slavonic; Church Slavonic; Church Chuvash Cornish Corsican Croatian Czech Danish Dutch Dzongkha English Esperanto Estonian Faroese Fijian Finnish French Frisian Gaelic; Scottish Gaelic Gallegan Georgian 26 6566 6565 6570 8381 6577 6582 7289 6583 6569 6589 6590 6665 6985 6669 6678 6672 6673 7866 6683 6682 6671 7789 6983 6765 6772 6769 7889 7889 9072 9065 6785 6785 6786 7587 6779 7282 6783 6865 7876 6890 6978 6979 6984 7079 7074 7073 7082 7089 7168 7176 7565 German Gikuyu; Kikuyu Greek, Guarani Gujarati Hausa Hebrew Herero Hindi Hiri Motu Hungarian Icelandic Ido Indonesian Interlingua (International) Interlingue Inuktitut Inupiaq Irish Italian Japanese Javanese Kalaallisut Kannada Kashmiri Kazakh Khmer Kikuyu; Gikuyu Kinyarwanda Kirghiz Komi Korean Kuanyama; Kwanyama Kurdish Kwanyama; Kuanyama Lao Latin Latvian Letzeburgesch; Limburgan; Limburger; Limburger; Limburgan; Limburgish; Limburger; Lingala Lithuanian Luxembourgish; Macedonian Malagasy Malay Malayalam Maltese Manx 6869 7573 6976 7178 7185 7265 7269 7290 7273 7279 7285 7383 7379 7368 7365 7369 7385 7375 7165 7384 7465 7486 7576 7578 7583 7575 7577 7573 8287 7589 7586 7579 7574 7585 7574 7679 7665 7686 7666 7673 7673 7673 7678 7684 7666 7775 7771 7783 7776 7784 7186 Language Code These pages can be used to select other languages.This does not affect the options in “AUDIO”, “SUBTITLE” or “DISC MENU”. Maori Marathi Marshallese Moldavian Mongolian Nauru Navaho, Navajo Navajo; Navaho Ndebele, North Ndebele, South Ndonga Nepali Northern Sami North Ndebele Norwegian Norwegian Bokmål; Bokmål, Norwegian Nynorsk; Nyanja; Chichewa; Chewa Nynorsk, Norwegian; Occitan (post 1500); Proven Old Bulgarian; Old Slavonic; Old Church Slavonic; Old Old Slavonic; Church Oriya Oromo Ossetian; Ossetic Ossetic; Ossetian Pali Panjabi Persian Polish Portuguese Provençal; Occitan (post) Pushto Quechua Raeto-Romance Romanian Rundi Russian Samoan Sango Sanskrit Sardinian Scottish Gaelic; Gaelic Serbian Shona Sindhi Sinhalese Slovak Slovenian Somali 7773 7782 7772 7779 7778 7865 7886 7886 7868 7882 7871 7869 8369 7868 7879 7866 7878 7889 7878 7967 6785 6785 6785 7982 7977 7983 7983 8073 8065 7065 8076 8084 7967 8083 8185 8277 8279 8278 8285 8377 8371 8365 8367 7168 8382 8378 8368 8373 8375 8376 8379 Sotho, Southem South Ndebele Spanish; Castilian Sundanese Swahili Swati Swedish Tagalog Tahitian Tajik Tamil Tatar Telugu Thai Tibetan Tigrinya Tonga (Tonga Islands) Tsonga Tswana Turkish Turkmen Twi Uighur Ukrainian Urdu Uzbek Vietnamese Volapük Walloon Welsh Wolof Xhosa Yiddish Yoruba Zhuang; Chuang Zulu 8384 7882 6983 8385 8387 8383 8386 8476 8489 8471 8465 8484 8469 8472 6679 8473 8479 8483 8478 8482 8475 8487 8571 8575 8582 8590 8673 8679 8765 6789 8779 8872 8973 8979 9065 9085 27 Troubleshooting Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, set this unit to the standby mode, disconnect the power cord, and contact the nearest authorized YAMAHA dealer or service center. Problem 28 Solution No power – Check if the AC power cord is properly connected. – Press the STANDBY/ON on the front of the DVD system to turn on the power. No picture – Refer to your TV’s manual for correct Video In channel selection. Change the TV channel until you see the DVD screen. – Check if the TV is switched on. Distorted picture – Sometimes a small amount of picture distortion may appear depending on the disc being played back. This is not a malfunction. Completely distorted picture or black/white picture with DVD – Make sure the disc is compatible with the DVD Player. – Ensure that the DVD Player’s TV Type is set to match that of the Disc and your TV. No sound or distorted sound – Adjust the volume. – Check that the speakers are connected correctly. No audio at digital output – Check the digital connections. – Check if your receiver can decode MPEG-2 or DTS and if not, please make sure the digital output is set to PCM ONLY. – Check if the audio format of the selected audio language matches your receiver capabilities. No sound and picture – Check that the RGB/SCART cable is connected to the correct device (See “Video Connections”). Disc can’t be played – The DVD+R/RW, DVD-R/RW, CD-R/RW must be finalized. – Ensure the disc label is facing up. – Check if the disc is defective by trying another disc. – If you have recorded a Picture CD or MP3 CD yourself, ensure that your disc contains at least 10 pictures or 5 MP3 tracks. – Region code incorrect. Picture freezes momentarily during playback – Check the disc for fingerprints/scratches and clean with a soft cloth wiping from centre to edge. The player does not respond to the Remote Control – Aim the Remote Control directly at the sensor on the front of the player. – Reduce the distance to the player. – Replace the batteries in the Remote Control. – Re-insert the batteries with their polarities (+/– signs) as indicated. Buttons do not work – To completely reset the player, unplug the AC cord from the AC outlet for 5-10 seconds. Troubleshooting Problem Solution Player does not respond to some operating commands during playback. – Operations may not be permitted by the disc. Refer to the instructions of the disc jacket. DVD Player cannot read CDs/ DVDs – Use a commonly available cleaning CD/DVD to clean the lens before sending the DVD Player for repair. Menu items cannot be selected – Press STOP twice before selecting System Menu. – Depending on the disc availability, some menu items cannot be selected. Unable to play DivX movies – Check that the DivX file is encoded in ‘Home Theater’ mode with DivX 5.x encoder. Unable to select Progressive Scan on/off – Check that the output of the video signal is switch to ‘YUV’. No sound during DivX movies playback – The audio code may not be supported by the DVD player. 29 Glossary Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of widescreens is 16:9. AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.). Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc. Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B,Y/Pb/ Pr, etc.). Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc. recorded on a DVD. Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does. DivX 3.11/4x/5x: The DivX code is a patent pending, MPEG-4 based video compression technology, developed by DivXNetworks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality. MP3: A file format with a sound data compression system. “MP3” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can. Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level. PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion. Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function. Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution. Region code: A system for allowing discs to be played back only in the region designated beforehand. This unit will only play discs that have compatible region codes.You can find the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions). S-Video: Produces a clear picture by sending separate signals for the luminance and the color.You can use S-Video only if your TV has S- video In jack. Surround: A system for creating realistic three dimensional sound fields full of realism by arranging multiple speakers around the listener. Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer). Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want. DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies. VIDEO OUT jack: Jack on the back of the DVD System that sends video to a TV. JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. 30 Specifications PLAYBACK SYSTEM AUDIO PERFORMANCE DVD Video Video CD & SVCD CD PICTURE CD CD-R, CD-RW DVD+R, DVD+RW DVD-R, DVD-RW VIDEO PERFORMANCE DA Converter 24bit Signal-Noise (1 kHz) 105dB Dynamic range (1 kHz) 100dB DVD fs 96 kHz fs 48 kHz SVCD fs 48 kHz fs 44.1kHz CD/VCD fs 44.1kHz Distortion and Noise (1 kHz) Video (CVBS) Output S-Video output TV STANDARD (PAL/50Hz) (NTSC/60Hz) RGB (SCART) output Component video output 1 Vpp into 75 ohm Y: 1 Vpp into 75 ohm C: 0.3 Vpp into 75 ohm 0.7 Vpp into 75 ohm Y: 1 Vpp into 75 ohm Pb/Cb Pr/Cr: 0.7 Vpp into 75 ohm AUDIO FORMAT Digital Number of lines Playback 625 Multistandard SCART Y Output Pb/Cb Output Pr/Cr Output S-Video Output Video Output Audio Output (L+R) Digital Output Euroconnector Cinch (green) Cinch (blue) Cinch (red) Mini DIN, 4 pins Cinch Cinch 1 coaxial, 1 optical IEC60958 for CDDA / LPCM/ MPEG1 IEC61937 for MPEG 2, Dolby Digital and DTS CABINET LASER Dimensions (w x d x h) Weight Output Power Beam divergence Semiconductor laser GaAlAs 650 nm (DVD) 780 nm (VCD/CD) 7 mW (DVD) 10 mW (VCD/CD) 60 degree 525 (PAL/NTSC) CONNECTIONS Mpeg/ Dolby Digital/ Compressed Digital DTS PCM 16, 20, 24 bits fs, 44.1, 48, 96 kHz MP3(ISO 9660) 24, 32, 56, 64, 96, 128, 256 kbps fs, 16, 22.05, 24, 32, 44.1, 48 kHz WMA 32 kbps–192 kbps, mono, stereo Analog Sound Stereo Type Wave length 2Hz- 44kHz 2Hz- 22kHz 2Hz- 22kHz 2Hz- 20kHz 2Hz- 20kHz 0.003% 435 x 310 x 51 mm Approx. 2.6 Kg POWER SUPPLY Power inlet Power usage Power usage standby 230V, 50Hz Approx. 14W < 1W Specifications subject to change without prior notice 31 ©2004 YAMAHA YAMAHA YAMAHA YAMAHA YAMAHA YAMAHA YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A. CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA Printed All rights reserved. in Hungary IP 3139 246 13751
