固纬LCR-8110G高精度LCR测试仪使用说明书

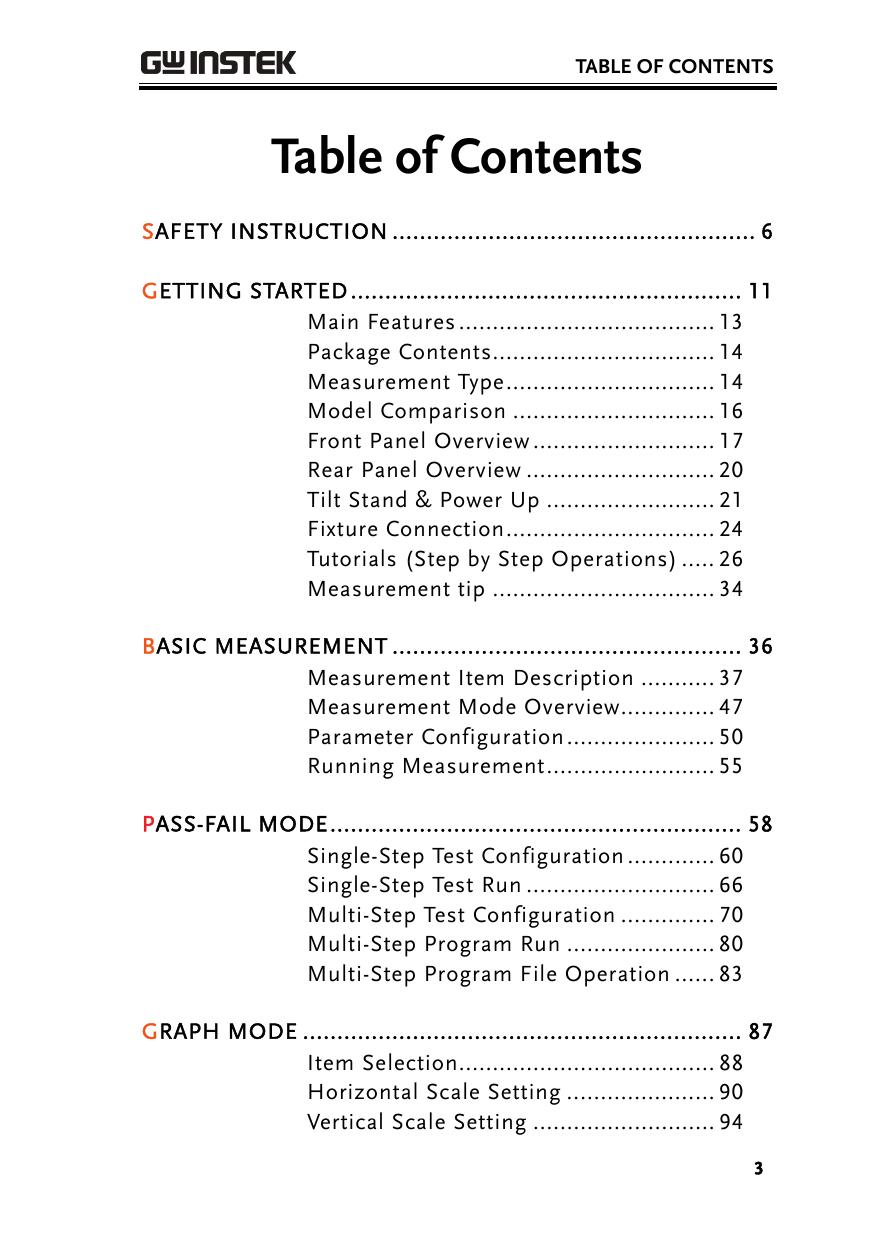

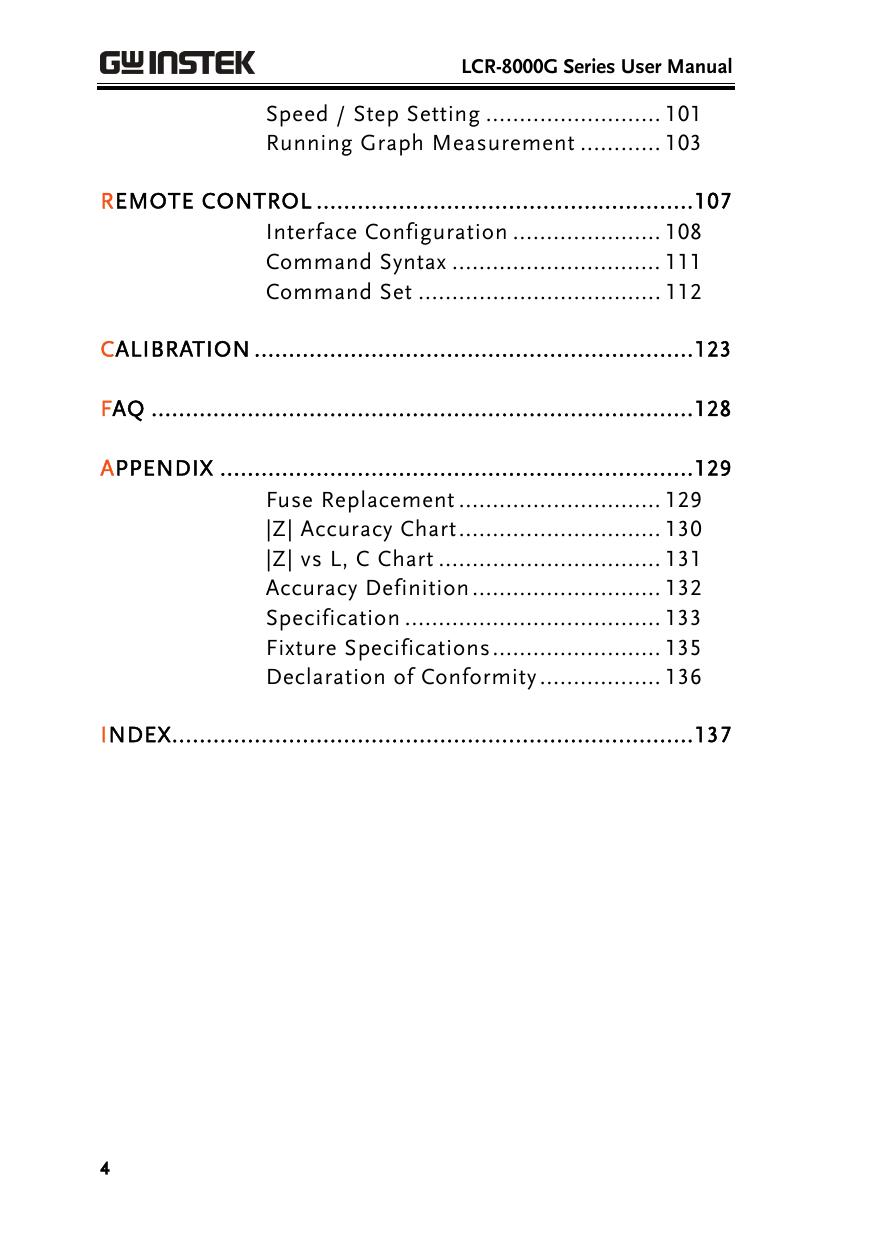

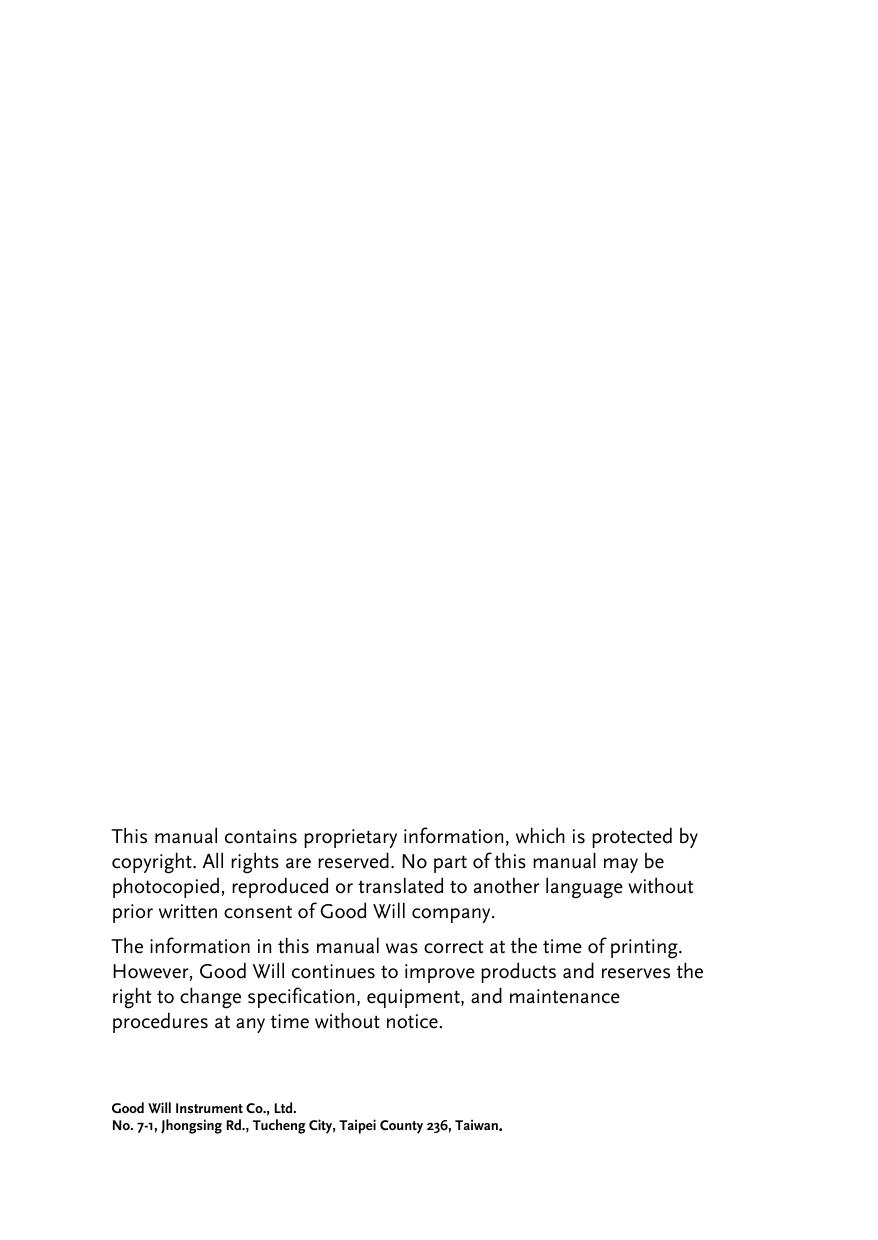

Precision LCR Meter LCR-8000G Series USER MANUAL GW INSTEK PART NO. 82CR-81010MA1 ISO-9001 CERTIFIED MANUFACTURER This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the right to change specification, equipment, and maintenance procedures at any time without notice. Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan. TABLE OF CONTENTS Table of Contents SAFETY INSTRUCTION ..................................................... 6 GETTING STARTED ......................................................... 11 Main Features ...................................... 13 Package Contents ................................. 14 Measurement Type ............................... 14 Model Comparison .............................. 16 Front Panel Overview ........................... 17 Rear Panel Overview ............................ 20 Tilt Stand & Power Up ......................... 21 Fixture Connection ............................... 24 Tutorials (Step by Step Operations) ..... 26 Measurement tip ................................. 34 BASIC MEASUREMENT ................................................... 36 Measurement Item Description ........... 37 Measurement Mode Overview .............. 47 Parameter Configuration ...................... 50 Running Measurement ......................... 55 PASS-FAIL MODE ............................................................ 58 Single-Step Test Configuration ............. 60 Single-Step Test Run ............................ 66 Multi-Step Test Configuration .............. 70 Multi-Step Program Run ...................... 80 Multi-Step Program File Operation ...... 83 GRAPH MODE ................................................................ 87 Item Selection ...................................... 88 Horizontal Scale Setting ...................... 90 Vertical Scale Setting ........................... 94 3 LCR-8000G Series User Manual Speed / Step Setting .......................... 101 Running Graph Measurement ............ 103 REMOTE CONTROL ....................................................... 107 Interface Configuration ...................... 108 Command Syntax ............................... 111 Command Set .................................... 112 CALIBRATION ................................................................ 123 FAQ ............................................................................... 128 APPENDIX ..................................................................... 129 Fuse Replacement .............................. 129 |Z| Accuracy Chart .............................. 130 |Z| vs L, C Chart ................................. 131 Accuracy Definition ............................ 132 Specification ...................................... 133 Fixture Specifications ......................... 135 Declaration of Conformity .................. 136 INDEX ............................................................................ 137 4 TABLE OF CONTENTS 5 LCR-8000G Series User Manual SAFETY INSTRUCTION This chapter contains important safety instructions that you must follow when operating or storing an LCR-8000G series LCR meter. Following these instructions will ensure your safety and keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument. WARNING Warning: Identifies conditions or practices that could result in injury or loss of life. CAUTION Caution: Identifies conditions or practices that could result in damage to the LCR-8000G or to other properties. DANGER High Voltage Attention Refer to the Manual Protective Conductor Terminal Earth (ground) Terminal 6 SAFETY INSTRUCTION Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines General Guideline CAUTION  Do not place any heavy object on the instrument.  Avoid severe impact or rough handling that leads to damaging the instrument.  Do not discharge static electricity to the instrument.  Do not block or obstruct the cooling fan vent opening.  Do not perform measurement at circuits directly connected to Mains (Note below).  Do not disassemble the instrument unless you are qualified as service personnel. (Measurement categories) EN 61010-1:2001 specifies the measurement categories and their requirements as follows. the LCR-8000G falls under category I.  Measurement category IV is for measurement performed at the source of low-voltage installation.  Measurement category III is for measurement performed in the building installation.  Measurement category II is for measurement performed on the circuits directly connected to the low voltage installation.  Measurement category I is for measurements performed on circuits not directly connected to Mains. 7 LCR-8000G Series User Manual Power Supply WARNING Fuse  AC Input voltage: 115V/230V, 50/60Hz  The power supply voltage should not fluctuate more than 10%.  Connect the protective grounding conductor of the AC power cord to an earth ground, to avoid electrical shock.  Fuse type: T3A/250V  Make sure the correct type of fuse is installed before power up.  To ensure fire protection, replace the fuse only with the specified type and rating.  Disconnect the power cord before fuse replacement.  Make sure the cause of fuse blowout is fixed before fuse replacement.  Disconnect the power cord before cleaning.  Use a soft cloth dampened in a solution of mild detergent and water. Do not spray any liquid.  Do not use chemicals or cleaners containing harsh materials such as benzene, toluene, xylene, and acetone.  Location: Indoor, no direct sunlight, dust free, almost non-conductive pollution (Note below)  Relative Humidity: < 80%  Altitude: < 2000m  Temperature: 0°C to 40°C WARNING Cleaning the LCR8000G Operation Environment 8 SAFETY INSTRUCTION (Pollution Degree) EN 61010-1:2001 specifies the pollution degrees and their requirements as follows. The LCR-8000G falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.  Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The pollution has no influence.  Pollution degree 2: Normally only non-conductive pollution occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.  Pollution degree 3: Conductive pollution occurs, or dry, nonconductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight, precipitation, and full wind pressure, but neither temperature nor humidity is controlled. Storage environment Disposal  Location: Indoor  Relative Humidity: < 80%  Temperature: −40°C to 70°C Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact. 9 LCR-8000G Series User Manual Power cord for the United Kingdom When using an LCR-8000G series LCR meter in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue: Neutral Brown: Live (Phase) As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows: The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol or coloured Green/Green & Yellow. The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Blue or Black. The wire which is coloured Brown must be connected to the terminal marked with the letter L or P or coloured Brown or Red. If in doubt, consult the instructions provided with the equipment or contact the supplier. This cable/appliance should be protected by a suitably rated and approved HBC mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm2 should be protected by a 3A or 5A fuse. Larger conductors would normally require 13A types, depending on the connection method used. Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard. 10 GETTING STARTED GETTING STARTED This chapter describes the LCR-8000G series in a nutshell, including their main features, model comparison, front / rear panel appearance, and power up sequence. Use the Tutorial section for a quick access to the main functionalities, step by step. Main Features Main Features ............................................................. 13 Package contents Package Contents ....................................................... 14 Measurement item Measurement items ................................................... 14 Measurement combination ........................................ 15 Equivalent Circuits ...................................................... 15 Panel overview Front Panel Overview ................................................. 17 Rear Panel Overview ................................................... 20 Model Comparison Major Model Differences............................................ 16 Tilt stand / Power Tilt stand ..................................................................... 21 up Power up ..................................................................... 22 Select AC mains frequency (50/60Hz)....................... 23 11 LCR-8000G Series User Manual Fixture connection Fixture structure ..........................................................24 Tutorial Basic measurement (without Pass/Fail test) .............26 Fixture connection .......................................................25 Pass/Fail test (Single step) .........................................28 Pass/Fail test (Multiple step)......................................30 Graph mode.................................................................32 Measurement tip Measurement tip ............................................ 34 12 GETTING STARTED Main Features Performance Operation Interface  20Hz ~ 10MHz wide test frequency (LCR8110G)  6 digit measurement resolution  10mV ~ 2V measurement drive level (DC/20Hz~3MHz)  0.1% basic measurement accuracy  Spot frequency measurement  Multi-step measurement, maximum 64 programs with up to 30 steps each  Actual measurement value display  Measurement in absolute value or percentage difference from the nominal value  Pass/Fail test  Precision fixture with four-wire + ground connection  Fixture trimming, open and closed connection  Bar display mode for easy adjustment of variable components  Graph mode for visual representation of measurement data  Retains panel setup after power-Off  Large LCD display, 320x240 resolution  Intuitive user interface, comprehensive measurement functions  GPIB  RS-232C 13 LCR-8000G Series User Manual Package Contents Ensure all the package contents are included and defect-free before using the LCR-8000G. If any of the contents in your package are missing or damaged, please contact your nearest GW Instek distributor. Standard Accessories Optional Accessories  LCR 8000G model  LCR User manual  Power Cord  Calibration certificate  LCR-12 test fixture  LCR-13 SMD/test chip fixture  LCR-05 Axial/Radial component fixture*  LCR-09 SMD/test chip fixture  GRA-404 rack mount (19” 4U)  LCR-07 conventional test leads*   LCR-08 SMD clip tweezers* GTL-232 RS232C cable, 9-pin (null modem)  LCR-06A Kelvin leads* GTC-001 Instrument cart *Frequency: DC~1MHz  Measurement Type Measurement items Primary measurement Capacitance (C) Inductance (L) Reactance (X) Susceptance (B) (=1/X) Impedance (R) Admittance (Y) (=1/Z) DC Resistance (RDC) Secondary measurement AC Resistance (RAC) Quality factor (Q)(=1/D) Dissipation factor (D) Angle (θ) (for Z and Y) Conductance (G) 14 GETTING STARTED Measurement combination :Available, :Not available, 1st measurement :Combination doesn’t exist. 2nd measurement Q Circuit model Graph *Prog D RAC G Angle Series Parallel Capacitance (C) Inductance (L) Reactance (X) Susceptance (B) Impedance (Z) Admittance (Y) DC Resistance(RDC) Quality factor (Q) Dissipation factor (D) AC Resistance (RAC) Conductance (G) Angle (θ) *Prog: Multi-step program Equivalent Circuits Series or Parallel C+R C+D C+Q Series X+R X+D X+Q Parallel C+G B+G B+D L+R L+Q L+D B+Q B+R L+G 15 LCR-8000G Series User Manual Model Comparison Major Model Differences Model LCR-8101G LCR-8105G LCR-8110G Measurement Frequency 20Hz~1MHz 20Hz~5MHz 20Hz~10MHz 20Hz~≤3MHz: 0.01V~2Vrms 20Hz~≤3MHz: 0.01V~2Vrms Drive Signal Level 20Hz~1MHz: 0.01V~2Vrms AC >3MHz~5MHz: >3MHz~10MHz: 0.01V~1Vrms 0.01V~1Vrms 0.01V~2V DC Drive Signal Short 20Hz~1MHz: Circuit Current 100uA~20mA rms AC 20Hz~≤3MHz: 100uA~20mA rms 20Hz~≤3MHz: 100uA~20mA rms >3MHz~5MHz: >3MHz~10MHz: 100uA~10mA 100uA~10mA rms rms 100uA~20mA DC Drive Signal Accuracy (open circuit) AC DC 16 20Hz~1MHz: ± 2% ± 5mV 20Hz~≤1MHz: ± 2% ± 5mV 20Hz~≤1MHz: ± 2% ± 5mV >1MHz~5MHz: >1MHz~10MHz: ± 5% ± 10mV ± 5% ± 10mV ± 2% ± 5mV GETTING STARTED Front Panel Overview Main Display Function Keys Local Key Menu Key Single/ Repetitive Key Menu Local Calibration Key D/Q p S V/A k n M  Unit Keys Trig m Clear Key Code Clear Enter DISCHARGE TEST DEVICE BEFORE CONNECTING L FORCE Power Switch Main display Function keys Current Return H SENSE Enter Key H FORCE Numerical Keys Low Potential High Potential Current Out 320 by 240, DST LCD display. F1 F6 Local key Local Menu key Menu Single/Repetitive key L SENSE Precision LCR Meter DC , 20 1M Hz LCR-8101G Arrow Keys Code Key H F Trigger Key Sing/Rep Assigned to the menu on the right side of the display. When the instrument is under remote control mode, sets the instrument back into local panel operation. For remote control details, see page107. Shows the main menu on the display. Selects Single measurement mode (manual triggering) or Repetitive measurement mode (automatic triggering). See page55 for details. 17 LCR-8000G Series User Manual Calibration key Unit keys Trigger key Calibration Enters unit when editing values. D/Q Dissipation factor or Quality factor V/A Voltage or Ampere H Henry (for Inductance) F Farad (for Capacitance) Ω Ohm (for Resistance, Impedance) S Siemens (for Susceptance, Admittance) k Kilo (103) M Mega (106) p Pico (10–12) n Nano (10-9) µ Micro (10–6) m Milli (10–3) Trig Manually triggers measurement. Available only in Single measurement mode (page55). Selects menu items or parameters. The Up/Down and Left/Right keys are used in pairs. Arrow keys Code key Code Clear key Clear 18 Enters the calibration mode. See page123 for calibration details. Enters system codes for changing drive Voltage/Current display (page57) or frequency adjustment resolution (page52). Clears all previous entries when editing values. GETTING STARTED Enter key Enter Enters numeric values. Numerical keys Measurement terminals Power switch Confirms the entered value or selection. Accepts measurement fixture. For connection details, see page24. LFORCE Current return LSENSE Low potential HSENSE High potential HFORCE Current output L FORCE L SENSE HSENSE HFORCE Turns On or Off the main power. For power up sequence, see page22. 19 LCR-8000G Series User Manual Rear Panel Overview GPIB Port Display Contrast Knob RS-232C Port Voltage Selector Fuse Holder Mains Socket RS232 GPIB AC 115 / 230V FUSE 250V T 3A 50 / 60Hz 115V WARNING SER.NO. LABEL GPIB GPIB port / RS-232C port Accepts remote control cables. RS232 GPIB: 24-pin female RS-232C: DB-9 pin male See page107 for remote control details. Sets the display contrast level. See page22 for details. Voltage selector / Fuse holder / Mains socket Voltage selector sets the AC mains Voltage, 115V or 230V. 115V Display contrast knob Fuse holder contains the main fuse, T3A/250V. For fuse replacement details, see page129. Mains socket accepts power cable. See page22 for power-up details. 20 GETTING STARTED Tilt Stand & Power Up Tilt stand Low angle High angle 21 LCR-8000G Series User Manual Power up 115V 115V 230V Panel operation 230V 1. Set the rear panel Voltage selector to the correct position according to the AC mains voltage. 2. Connect the power cord to the socket. 3. Turn On the power switch. The display becomes active in 2~3 seconds. Meter z LCR 1M H sion Preci DC , 20 4. Use the contrast knob on the rear panel to adjust the LCD display brightness. Counterclockwise: Dark *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D HI CLXBZY QDRG Parallel Hi +1.00% Hide Scale 53.388fF Lo –1.00% Abs % 50mVac 1.5000kHz Vm:549.8mV Range Auto Save Nom Im:724.9pA Speed Med 22 Clockwise: Light GETTING STARTED Select AC mains frequency (50/60Hz) Background Although the LCR-8000G works under both 50 and 60Hz power frequencies, we recommend selecting the frequency that matches the local setting to get the best measurement precision, especially at lower frequencies (< 100Hz). Panel operation 1. Press the Menu key, then F5 (System). The system menu appears. Menu F5 Precision LCR Meter LCR-8101 Software version 2.03 Oct 25 2008 Frequency RS-232 Graph mode GPIB Line frequency Beep GPIB address Average 1MHz : 50Hz : OFF :5 : 10 2. Press the Up/Down key and move the cursor to Line frequency. Line frequency : 50Hz 3. If necessary, press the Left/Right key to select the frequency, from 50 to 60Hz or from 60Hz to 50Hz. Line frequency : 60Hz 23 LCR-8000G Series User Manual Fixture Connection Fixture structure Background The standard fixture is a four-wire type with a common terminal for screen connection. The outer terminals (Hforce and Lforce) provide the current and the inner terminals (Hsense and Lsense) measures the potential. Diagram LFORCE LSENSE – Description 24 GND (Optional) HSENSE HFORCE + HFORCE Carries the signal current source. Connected to the + side of the device under test. HSENSE Together with Lsense, monitors the Potential. Connected to the + side of the device under test. LSENSE Together with Hsense, monitors the Potential. Connected to the – side of the device under test. LFORCE Accepts the signal current return. Connected to the – side of the device under test. GND If the test component has a large metal area NOT connected to either of the terminals, connect the GND clip to minimize noise level. GETTING STARTED Fixture connection Panel operation 1. Discharge the test component before connecting the fixture set. 2. Connect each fixture terminal to the front panel BNC connector with matching color. L FORCE L SENSE H SENSE H FORCE 3. Connect the fixture to the test component. If the component has polarity, connect the H side to the positive lead and the L side to the negative lead. Make sure the distance between the lead base and fixture clip is short enough. H side L side 4. If the test component has an outer case unconnected to either of the leads, connect the ground terminal for noise level reduction. 25 LCR-8000G Series User Manual Tutorials (Step by Step Operations) Basic measurement (without Pass/Fail test) Step Description 1. Connect fixture Connect the fixture to the DUT. Details Page24 2. Enter menu Press the Menu key, followed by F1 (AC measurement) or F2 (Rdc). Page47 3. Hide scale Press F4 (Show/Hide Scale) to hide the scale (or show the circuit diagram) Page49 4. Select measur- Press F1 (First) and F2 (Second) ement item repeatedly to select the measurement item. Page50 5. Select series/ parallel circuit If available, press F3 (Series/Parallel) to select the equivalent circuit model. 6. Set measurement frequency Press the Left/Right arrow key and move Page52 the cursor to the Frequency. Use the numerical and unit keys to set the level. 7. Set measurement Voltage Press the Left/Right arrow key and move Page54 the cursor to the Voltage. Use the numerical and unit keys to set the level. 8a. Select Single measurement Press the Sing/Rep key to select Single Page55 (manual trigger) measurement. To trigger measurement, press the Trig key. 8b. Select Repetitive measurement Page56 Press the Sing/Rep key to select Repetitive (automatic trigger) measurement. Press the Left/Right arrow key and move the cursor to Speed. Press the Up/Down key to select the speed. 26 Page50 GETTING STARTED Optional settings To hide the drive Voltage/Current, press Page57 the Code key, type 80, then press Enter. Page51 Set the Range (internal setting) to Auto, use the Left/Right key to move the cursor and Up/Down key to change the setting. 27 LCR-8000G Series User Manual Pass/Fail test (Single step) Step Description 1. Connect fixture Connect the fixture to the DUT. Details Page24 Page61 2. Set buzzer sound Press the Menu key, then F5 (System). Press the Up/Down arrow key to move the cursor to Beep, then use the Left/Right key to select setting (Off recommended). 3. Set Average Page62 Press the Menu key, then F5 (System). Press the Up/Down arrow key to move the cursor to Average, then use the numerical keys to enter an average number (1-256). Press enter to confirm the number. 4. Enter menu Press the Menu key, followed by F1 (AC measurement) or F2 (Rdc). Page47 5. Show scale Press F4 (Show/Hide Scale) to show the scale (or hide the circuit diagram) Page 49 6. Select measur- Press F1 (First) and F2 (Second) ement item repeatedly to select the measurement item. Page50 7. Select series/ parallel circuit If available, press F3 (Series/Parallel) to select the equivalent circuit model. Page50 8. Set measurement frequency Press the Left/Right arrow key and move Page52 the cursor to the Frequency. Use the numerical and unit keys to set the level. 9. Set measurement Voltage Press the Left/Right arrow key and move Page54 the cursor to the Voltage. Use the numerical and unit keys to set the level. 10a. Select Single Press the Sing/Rep key to select Single Page55 measurement (manual trigger) measurement. To trigger measurement, press the Trig key. 28 GETTING STARTED 10b. Select Repetitive measurement Page56 Press the Sing/Rep key to select Repetitive (automatic trigger) measurement. Press the Left/Right arrow key and move the cursor to Speed. Press the Up/Down key to select the speed. 11a. Select Absolute measurement Press F5 (Abs/%/∆) to select Abs. Press Page66 the Left/Right key to move the cursor to Lo (Low limit). Use the numerical and unit keys to set the Low limit. Repeat this for Hi (Hi limit) as well. 11b. Select Percentage measurement Press F5 (Abs/%/∆) to select %. Press the Page67 Left/Right key to move the cursor to the Nominal value. Use the numerical and unit keys to set the numerical level. Then move the cursor to Lo (Low limit) and set the percentage. Repeat this for Hi (Hi limit) as well. To save the latest measurement result as Nominal, press F6 (Save Nom). 11c. Select Delta Press F5 (Abs/%/∆) to select ∆. Press the Page68 measurement Left/Right key to move the cursor to the Nominal value. Use the numerical and unit keys to set the numerical level. Then move the cursor to Lo (Low limit) and set the Lo value difference. Repeat this for Hi (Hi limit) as well. To save the latest measurement result as Nominal, press F6 (Save Nom). Optional settings To hide the drive Voltage/Current, press Page57 the Code key, type 80, then press Enter. Page51 Set the Range (internal setting) to Auto, use the Left/Right key to move the cursor and Up/Down key to change the setting. 29 LCR-8000G Series User Manual Pass/Fail test (Multiple step) Step Description 1. Connect fixture Connect the fixture to the DUT. Details Page24 Page72 2. Set buzzer sound Press the Menu key, then F5 (System). Press the Up/Down arrow key to move the cursor to Beep, then use the Left/Right key to select setting (Off recommended). 3. Set Average Page73 Press the Menu key, then F5 (System). Press the Up/Down arrow key to move the cursor to Average, then use the numerical keys to enter an average number (1-256). Press enter to confirm the number. 4. Enter multiple Press the Menu key, then F3 (Multi step). Page74 step mode 5. Select measurement item Press the arrow keys to move the cursor to Step 01 Func. Press F1 (Prog) repeatedly to select the item. 6a. Set parameters Press the arrow keys to move the cursor Page76 to the parameters below. Use the numerical and unit keys for editing values or F1 (Prog) for selecting options. 6b. Add steps Move the cursor to the first empty step and press F1 (Prog). Page76 6c. Copy to the next step Press F2 (Copy). The selected step contents are copied and inserted to the next step. Page79 6d. Delete step Press F3 (Delete). The selected step is deleted. Page79 7. Save program Press F4 (Save). The edited program is saved. Page83 30 Page76 GETTING STARTED 8. Enter Run menu Press F6 (Run). The Run menu opens. Page80 9. Set Single or Repetitive Press the Sing/Rep key to select Single (manual trigger) or Repetitive (auto trigger). Page80 10. Start running If the test has not started yet, press F1 (Start) or Trig key. Press F6 (Set) to go back to the setup menu. File operation: new program Page80 Page74 Press F5 (File), then F4 (New). Press the Left/Right keys to move the cursor and press the Down key to select character. To confirm the file name, press the Enter key. A new file appears. To delete a character, press the Up key. To quit, press the Clear key. File operation: load Press F5 (File), then F1 (Load). Use the arrow keys to select the program and press F1 (Load). Page85 File operation: delete Press F5 (File), then F2 (Delete). Use the arrow keys to select the program and press F5 (Del). Page86 File operation: save as Press F5 (File), then F3 (Save as). Press the Page83 Left/Right keys to move the cursor and press the Down key to select character. To confirm the file name, press the Enter key. A new file appears. To delete a character, press the Up key. To quit, press the Clear key. 31 LCR-8000G Series User Manual Graph mode Step Description 1. Connect fixture Connect the fixture to the DUT. Details Page24 2. Enter graph mode Press the Menu key, then F4 (Graph). Page88 3. Select item Press F5 repeatedly to select the graph item. Page89 4a. Set horizontal Press the Up/Down key to move the Page92 scale (frequency) cursor to Sweep. Press the Left/Right key to select Frequency. Then move the cursor to Start Frequency, set the value using the numerical and unit keys. Repeat this for Stop Frequency and Level (drive Voltage). 4b. Set horizontal Press the Up/Down key to move the Page90 scale (voltage) cursor to Sweep. Press the Left/Right key to select Voltage. Then move the cursor to Start Voltage, set the value using the numerical and unit keys. Repeat this for Stop Voltage and Freq (frequency). 5. Select speed Press the Up/Down key to move the Page101 cursor to Speed. Press the Left/Right key to select the measurement speed. 6. Select step size Press the Up/Down key to move the cursor to Step size. Press the Left/Right key to select the data step (all or sampled). Page102 7. Select linear or Press F1 (Lin/Log) to select linear or log scale logarithmic horizontal scale. Page91 8a. Set vertical Press F2 (Abs/%) to select Abs, then press Page98 scale (Absolute + F3 (Manual/Auto fit) to select Auto fit. Auto fit) the LCR-8000G automatically configures the vertical scale. 32 GETTING STARTED 8b. Set vertical Press F2 (Abs/%) to select Abs, then press Page94 scale (Absolute + F3 (Manual/Auto fit) to select Manual fit. Manual fit) Move the cursor to Hi, set the Hi value. Repeat this for Lo as well. The minimum and maximum vertical range is manually configured. 8c. Set vertical Press F2 (Abs/%) to select %, then press scale (Percentage F3 (Manual/Auto fit) to select Auto fit. + Auto fit) Move the cursor to Nominal and set the nominal value. The LCR-8000G automatically configures the vertical range around the nominal value. Page99 8d. Set vertical Press F2 (Abs/%) to select %, then press scale (Percentage F3 (Manual/Auto fit) to select Auto fit. + Manual fit) Move the cursor to Hi, set the Hi percentage. Repeat this for Lo and Nominal. The minimum and maximum vertical range is manually configured. Page96 9. Plot graph Press F4 (Start). The graph is drawn on the display. To abort, press F6 (Abort). Page103 10. Fit graph into When plotting is finished, press F1 Page105 display (Function), then F2 (Fit). The vertical scale is automatically adjusted to include all the plotted line. Press F1 (View) to go back. 11. Move marker Press the Left/Right keys to move the Page106 marker on the graph. To move the marker to the peak, press F1 (Function) and F3 (Peak). To move to the dip, press F4 (Dip). Press F1 (View) to go back. 12. Return to previous menu Press F6 (Return) or press the Menu key to go back to the previous or the other menu. Page106 33 LCR-8000G Series User Manual Measurement tip Hi/Low impedance If the measured impedance is greater than 1kΩ, the standard four-terminal connection is not necessary. Run S/C trim to remove the effect of series lead impedance. If the measured impedance is lower than 1kΩ, four-terminal connection can reduce the effect of contact resistance at the test component. Metal component A large area of metal can add noise to the case connection measurement. Here is how to minimize the effect. If the metal is connected to one of the terminals, this should be connected to the Hforce (Yellow) terminal side. If the metal is NOT connected to either of the terminals, connect the GND clip. Small-sized capacitor When measuring small, SMD-size capacitors, run O/C trim at the measurement frequency (Spot trimming) to eliminate the residual capacitance. Make sure the measurement lead positions are fixed during trimming. Small-sized inductor When measuring small, SMD-size inductors, run S/C trim at the measurement frequency (Spot trimming). The LCR-8000G measures the difference between the inductance of S/C trimming and the inductance of test component. Four-terminal fixture set is recommended and make sure the measurement leads are fixed during trimming. 34 GETTING STARTED Wire capacitance When measuring the wire capacitance, the fixture clips that are marked with HF(High Force)/HS (High Sense) should always be connected to the point that is influenced the most by noise. Wire inductance The wire inductance should be subtracted from the measurement result.  5cm, 1mm diameter wire has 50nH inductance  5cm, 2mm diameter wire has 40nH inductance Frequency factor When an inductor is measured at a frequency in inductor much lower than that for which it is designed (for measurement example, an HF choke tested at AF), the inductor tends to behave as an inductive resistor. In these circumstances, measurement accuracy is widened by (1 + 1/Q) where Q is the quality factor. Air-cored coils Air-cored coils can pick up noise very easily, therefore they should be kept well clear of any test equipment that may contain power transformers or display scan circuitry. Also, keep the coils away from metal objects which may modify inductor characteristics. Iron-cored and ferrite inductor The effective value of iron-cored and ferrite inductors can vary widely with the magnetization and test signal level. Measure them at the AC level and frequency in use. When core materials are damaged by excessive magnetization (for example: tape heads and microphone transformers), check that the test signal is acceptable before connection. 35 LCR-8000G Series User Manual BASIC MEASUREMENT Basic measurement measures DUT in numerical style. Advanced measurements are available in Pass/Fail test mode (page58), where measurement results are compared with user-defined limits, and in Graph mode (page87), where measurement data is displayed in graphical representation. Measurement item Measurement combination ........................................ 37 Series/Parallel circuit models ..................................... 38 Resistance (R) and Conductance (G = 1/R) .............. 40 Capacitance (C) .......................................................... 41 Inductance (L) ............................................................ 42 Reactance (X) and Susceptance (B = 1/X)................. 43 Impedance (Z) and Admittance (Y = 1/Z) ................. 44 Quality factor (Q) and Dissipation factor (D) ........... 45 Angle (θ) ..................................................................... 46 Measurement overview Enter measurement mode.......................................... 47 Display overview ......................................................... 48 Show circuit model or scale (pass/fail) ..................... 49 Measurement configuration Select measurement item........................................... 50 Set measurement range to Auto ................................ 51 Set measurement frequency ....................................... 52 Set measurement voltage ........................................... 54 Run measurement Select Single measurement ........................................ 55 Select Repetitive measurement .................................. 56 Hide drive Voltage/Current ........................................ 57 36 BASIC MEASUREMENT Measurement Item Description In general, two items, primary and secondary, are combined in a single measurement. The following table shows the available combinations. Overview of each measurement item is listed from the next page. Measurement combination :Available, :Not available, 1st measurement :Combination doesn’t exist. 2nd measurement Q Circuit model Graph *Prog D RAC G Angle Series Parallel Capacitance (C) Inductance (L) Reactance (X) Susceptance (B) Impedance (Z) Admittance (Y) DC Resistance(RDC) Quality factor (Q) Dissipation factor (D) AC Resistance (RAC) Conductance (G) Angle (θ) *Prog: Multi-step program  The graph measurement is described in the Graph Mode chapter, page87.  The multi-step program mode is described in the Pass/Fail test chapter, page70. 37 LCR-8000G Series User Manual Series/Parallel circuit models Background For measuring AC Resistance, Capacitance, Reactance, Inductance, and Susceptance, series and parallel equivalent circuit models are available. Select the model according to the component value. Capacitance (C) Series diagram Parallel diagram Series formula Parallel formula  CS  CP 1  D 2  D=dissipation factor CP  CS 1 D2   D=dissipation factor When to use Series (CS) When to use Parallel (CP) Small capacitance: Reactance (XC) < 1kΩ Large capacitance: Reactance (XC) > 1kΩ Note: X C  Inductance (L) 38 1 2fC Series diagram Note: X C  1 2fC Parallel diagram BASIC MEASUREMENT Parallel formula Series formula LS  LP  1  1  2   Q   1  LP  LS 1  2   Q  Q=quality factor Q=quality factor Resistance When to use Series (LS) When to use Parallel (LP) Small capacitance: Reactance (XL) < 1kΩ Large capacitance: Reactance (XL) > 1kΩ Note: X L  2fL Note: X L  2fL Series diagram Parallel diagram Series formula Parallel formula RS  RP 1  Q2    RP  RS 1  Q 2  Q=quality factor Q=quality factor When to use Series (RS) When to use Parallel (RP) Small resistance: < 1kΩ Large resistance: > 1kΩ 39 LCR-8000G Series User Manual Resistance (R) and Conductance (G = 1/R) Background Resistance measures how difficult it is for the electricity to flow between two terminals. Conductance is the reciprocal of Resistance and measures how easily the electricity flows. Resistance Type Conductance  Series Resistance RS  Parallel Resistance RP  DC Resistance Rdc  Parallel Conductance GP (= 1/RP) Note: Conductance is available only for parallel circuit models. Display Range 0.01mΩ ~ 1GΩ Measurement combination  CS + RS  LP + RP  CP + GP  LS + RS  BP + RP  LP + GP  XS + RS  Rdc  CP + RP Formula R 0.001ns ~ 1ks BP + GP I 1 V 1   Z S  jX GP    YP  jB I G V R  Z S  j L  Z S  ZS  ZP  R 2 R X2 RX 2 X2 RS  Z cos  40  j j  YP  jC  YP  C L  YS   YP  GB G G 2  B2 2  B2 GP  Y cos   BASIC MEASUREMENT Capacitance (C) Background Capacitance measures the amount of electronic charge stored between two terminals. Display Range 0.001pF ~ 1F Type  Series Capacitance CS  Parallel Capacitance CP Combination  CS + Q  CP + Q  CS + D  CP + D  CS + RS  CP + RP  CP + GP Formula ZS  R  j C 1 Q C S R S D  C S RS YP  G  jC Q  C P RP D  GP C P 41 LCR-8000G Series User Manual Inductance (L) Background Inductance measures the amount of magnetic flux generated in certain electrical current. Display Range 0.1nH ~ 100kH Type  Series Inductance LS  Parallel Inductance LP Measurement combination  LS + Q  LP + Q  LS + D  LP + D  LS + RS  LP + RP  LP + GP Formula Z S  R  j L Q 42 LS RS , D YP  G  RS LS Q j L RP , D  LP GP LP BASIC MEASUREMENT Reactance (X) and Susceptance (B = 1/X) Background Reactance measures the imaginary part of Impedance (Z) caused by capacitors or inductors. Susceptance is the reciprocal of Reactance and measures the imaginary part of Admittance (Y), which is also the reciprocal of Impedance. Type Series Reactance (XS) Parallel Susceptance (BP) Note: Reactance is available only in series circuit model. Note: Susceptance is available only in parallel circuit model. Display Range 0.01mΩ ~ 1GΩ 0.001ns ~ 1ks Measurement combination  XS + Q  BP + Q  XS + D  BP + D  XS + RS  BP + RP  BP + GP Formula X 1  Z sin  B ZS  ZP  R 2 R  X2 RX 2  X2 X S  Z sin  B 1  Y sin  X  YS   YP  GB G G 2  B2  2  B2  BP  Y sin  43 LCR-8000G Series User Manual Impedance (Z) and Admittance (Y = 1/Z) Background Impedance measures the total amount of opposition between two terminals in an AC circuit. Admittance is the reciprocal of Impedance and measures how easily the electricity flows in an AC circuit. Type Impedance (Z) Admittance (Y) Display Range 0.01mΩ ~ 1GΩ 0.001ns ~ 1ks Formula Z E 1  I Y Y Z S  R  jX ZP  44 R 2 R YP  G  jB j C  G  j C  G   YS   X 2 YP   R  j L  R  ZS  I 1  E Z  X2 RX 2 GB G G 2  B2 2  B2 RS  Z cos GP  Y cos X S  Z sin  BP  Y sin    j L BASIC MEASUREMENT Quality factor (Q) and Dissipation factor (D) Background Both Quality factor and its reciprocal, Dissipation factor, are used for measuring the rate of energy dissipation relative to the measurement frequency.  Low energy dissipation: high Q, low D  High energy dissipation: low Q, high D Type Quality factor (Q) Dissipation factor (D) Display Range 0.01 ~ 9999.9 0.00001 ~ 1000 Formula Q LS RS  1 CS RS D RS  C S RS LS  RP  C P R P LP  GP  LP GP C P  1 1   tan 90    D  tan 90      1 Q 45 LCR-8000G Series User Manual Angle (θ) Background The Angle (θ) measures the phase on which Impedance (Z), Admittance (Y), Quality factor (Q), and Dissipation factor (D) are measured. Type Angle (θ) Display Range –180° ~ +180° Formula Z S  R  jX  R  j L  R  Q 46 YP  G  jB j C 1 1   tan 90    D  G  j C  G  j L D  tan 90      RS  Z cos GP  Y cos X S  Z sin  BP  Y sin  1 Q BASIC MEASUREMENT Measurement Mode Overview Enter measurement mode Type Panel operation AC C, L, X, B, Z, Y, Q, D, R, G, θ DC Rdc Menu 1. Press the Menu key. The main menu appears. MAIN MENU AC MEAS F1 Rdc MEAS F2 MULTI STEP F3 GRAPH F4 SYSTEM F5 2. For Rdc measurement, press F2 (Rdc Meas). For any other measurement, press F1 (AC Meas). The measurement mode display appears. AC measurement *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D LO F1 DC measurement (Rdc) CLXBZY QDRG *7 MEASUREMENT MODE 156.35mΩ Parallel Hi +1.00% Hide Scale Lo –1.00% Abs % 50mVac 1.5000kHz Vm:549.8mV Range Auto Save Nom Im:724.9pA Speed Med 53.388fF F2 HI 154.53mΩ 1.00Vdc Range Auto Speed Med Hi +1.00% Lo –1.00% Vm:549.8mV Im:724.9pA Hide Scale Abs % Save Nom 47 LCR-8000G Series User Manual Display overview Normal mode Absolute mode (Pass/Fail test) Percentage mode (Pass/Fail test) Lo Threshold Hi Threshold Absolute Norm Mode Value *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D LO Lo 0.00mF Hi 20.0mF 10mVac 1.5000kHz Vm:549.8mV Range Auto Im:724.9pA Speed Med 48 CLXBZY QDRG *7 Hi/Lo Threshold MEASUREMENT MODE 0.01234 mF – 0.2179 D Parallel Hide Scale Abs % Save Nom LO Percentage Mode CLXBZY QDRG Parallel Hi +1.00% Hide Scale Lo –1.00% Abs % 10mVac 1.5000kHz Vm:549.8mV Range Auto Save Nom Im:724.9pA Speed Med 53.388mF BASIC MEASUREMENT Delta mode (Pass/Fail test) Norm Value *7 Hi/Lo Threshold Delta Mode MEASUREMENT MODE CLXBZY 0.01234 mF – 0.2179 D QDRG Parallel LO 53.388mF Hi 1.0000 mF Lo 1.0000 mF Hide Scale 10mVac 1.5000kHz Vm:549.8mV Range Auto Im:724.9pA Speed Med Abs % Save Nom For Pass/Fail test details, see page58. Show circuit model or scale (pass/fail) Background The center of the display can be filled with the diagram of equivalent circuit model, or the measurement scale with Pass/Fail test result. This selects not only the diagram/scale but also whether running the Pass/Fail test or just measuring the value. Panel operation Press F4 (Show/Hide scale) to view the circuit model or scale. Normal *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D Pass/Fail test CLXBZY QDRG *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D Parallel Show Scale 50mVac 1.5000kHz Vm:549.8mV Range Auto Im:724.9pA Speed Med Pass/Fail test HI Lo 0.00mF Hi 20.0mF 50mVac 1.5000kHz Vm:549.8mV Range Auto Im:724.9pA Speed Med CLXBZY QDRG Parallel Hide Scale Abs % Save Nom For Pass/Fail test details, see page58. 49 LCR-8000G Series User Manual Parameter Configuration Select measurement item *This is not necessary for Rdc measurement. Measurement combination The following list shows the available combination of the first and second measurement items. Capacitance (C) Series Inductance (L) Reactance (X) Panel operation Parallel C-Q, C-D, C-R, C-G Series L-Q, L-D, L-R Parallel L-Q, L-D, L-R, L-G Series X-Q, X-D, X-R Susceptance (B) Parallel B-Q, B-D, B-R, B-G Impedance (Z) Z-Angle Admittance (Y) Y-Angle To select the first measurement item, press F1 repeatedly. CLXBZY F1 To select the second measurement item, press F2 repeatedly. QDRG F2 To select the circuit model, series or parallel, press F3 repeatedly. F3 Series 50 C-Q, C-D, C-R Parallel BASIC MEASUREMENT Set measurement range to Auto Background The measurement range is an internal parameter defining the search range for each measurement item. Make sure the Auto setting is always selected, to obtain the best measurement accuracy. The active range appears at the top left corner of the display. *7 MEASUREMENT MODE 0.01234 nS – 0.2179 D Panel operation 1. Press the Left/Right key repeatedly to move the cursor to Range position. Range Auto Speed Slow 2. If the range is NOT set to Auto, press the Up/Down key repeatedly to set it back to Auto. Range 5 Range Auto Speed Slow Speed Slow 51 LCR-8000G Series User Manual Set measurement frequency *This setting does not apply to Rdc measurement. Background The measurement frequency, together with the measurement voltage, defines the electrical condition of each measurement item. Make sure the appropriate frequency is selected, according to the component characteristics. Panel operation 1. Press the Left/Right key repeatedly to move the cursor to Frequency. 2.00 Vac 195.00 kHz 2. Enter the frequency using the numerical keys. Range 20Hz ~ 1MHz (LCR-8101G) 20Hz ~5MHz (LCR-8105G) 20Hz ~10MHz (LCR-8110G) 1.2kHz 1MHz k M Enter Enter Backspace All clear Increase Decrease Clear When the entered value does not fit in the range, the LCR-8000G automatically selects the nearest value. Nearest Available When the wrong unit (such as Ω) is entered, the value is cancelled. Unit Mismatched 52 BASIC MEASUREMENT Select frequency For frequency increase/decrease using Up/Down step resolution keys, fine and coarse step settings are available. Fine 1st digit: 1, 2, 3, 4, 5, 6... Coarse 2nd digit: 10, 12, 15, 20, 25, 30, 40, 50, 60, 80 1. Press the Code key. Code 2. Enter the system code using the numerical keys, then press the Enter key. A confirmation message appears on the display. Fine: 10 Enter Freq fine steps Coarse: 11 Enter Freq coarse steps 53 LCR-8000G Series User Manual Set measurement voltage Background The measurement voltage, together with the measurement frequency, defines the electrical condition of each measurement item. Make sure the appropriate voltage is selected, according to the component characteristics. Voltage setting 1. Press the Left/Right key repeatedly to move the cursor to Voltage. 2.00 Vac 195.00 kHz 2. Enter the voltage using the numerical keys. Range DCV:10mV ~ 2V AC, 20Hz~≤ 3MHz: 0.01V~2Vrms AC, >3MHz~10MHz: 0.01V~1Vrms 100mV 1V m V/A Enter Enter V/A Backspace All clear Increase Decrease Clear When the entered value does not fit in the range, the LCR-8000G automatically selects the nearest value. Nearest Available When the wrong unit (such as Ω) is entered, the value is cancelled. Unit Mismatched 54 BASIC MEASUREMENT Running Measurement Select Single measurement Background The data capture can be manually controlled (Single) or automatically updated (Repetitive). In single measurement, the measurement is activated by pressing the Trigger key. In repetitive measurement, the measurement is automatically done and the display is updated according to the speed (timing) setting. Panel operation 1. Press the Sing/Rep key repeatedly until the “Single Shot Mode” message appears on the display. Sing/Rep Single Shot Mode 2. The measurement update indicator (*) does not appears at the top left corner of the display. 7 MEASUREMENT MODE nS D 3. To capture measurement data, press the Trigger key. The measurement update indicator (*) blinks and the measurement result is updated on the display. *7 Trig MEASUREMENT MODE 0.01234 nS – 0.2179 D 55 LCR-8000G Series User Manual Select Repetitive measurement Background The data capture can be manually controlled (Single) or automatically updated (Repetitive). In single measurement, the measurement is activated by pressing the Trigger key. In repetitive measurement, the measurement is automatically done and the display is updated according to the speed (timing) setting. Panel operation 1. Press the Sing/Rep key repeatedly Sing/Rep until the “Repetitive Mode” message appears on the display. Repetitive Mode 2. The measurement update indicator (*) keeps blinking and the measurement result is updated on the display. *7 MEASUREMENT MODE 0.01234 nS – 0.2179 D 3. Press the Left/Right key repeatedly to move the cursor to measurement speed. Speed Slow 4. Press the Up/Down key repeatedly to select the time per update. 56 BASIC MEASUREMENT DC Beep setting AC≤ AC≤ 100Hz 2kHz AC> 2kHz AC≥ 1MHz Slow 900ms 1.3s 600ms 600ms 620ms Med 120ms 1.2s 470ms 450ms 470ms Fast 60ms 650ms 180ms 150ms 150ms Max 30ms 600ms 120ms 75ms 120ms If the beep setting (page61) is active and Sing/Rep the display is in Pass/Fail test mode, it might sound continuously depending on the measurement result. If this happens, press the Sing/Rep key and set the mode to Single. Then turn Off the buzzer. Hide drive Voltage/Current Background The drive voltage and current shows the actual voltage/current level applied to the device under test. Panel operation 1. Press the Code key. Vm:549.8mV Im:724.9pA Code 2. Enter the system code using the numerical keys, then press the Enter key. Hide drive V/I: 80 Enter Vm:549.8mV Im:724.9pA Show drive V/I: 81 Enter Vm:549.8mV Im:724.9pA 57 LCR-8000G Series User Manual PASS-FAIL MODE In the Pass/Fail test mode, measurement results are compared with user-defined limits and the results are displayed. Two types of tests are available: Single and Multi-Step. The Single test shares the same interface with the basic measurement, and tracks one item. The Multi-Step test runs a program comprised of multiple measurement items with different parameters. Single-step configuration Overview ......................................................................60 Configure beep setting ................................................61 Configure the Average .................................................62 Select test item and scale (Pass/Fail test) ..................63 Set parameters.............................................................64 Single-step run Run in Absolute mode .................................................66 Run in Percentage mode .............................................67 Run in Delta mode ......................................................68 Use display value as nominal ......................................69 58 PASS-FAIL MODE Multi-step configuration Overview ..................................................................... 70 Configure beep setting ............................................... 72 Configure the Average ................................................ 73 Enter multi-step mode................................................ 74 Create new program ................................................... 74 Edit program step ....................................................... 76 Copy (duplicate) program step .................................. 79 Delete program step ................................................... 79 Multi-step run Run program ...................................................... 80 Multi-step file operation Save program ..................................................... 83 Recall (load) existing program ........................... 85 Delete existing program ..................................... 86 59 LCR-8000G Series User Manual Single-Step Test Configuration Overview Background / test Pass/Fail test checks whether the measurement type result sits between the Hi(high) and Lo(low) limit. Three methods are available: absolute limit, percentage and delta limit. Absolute limit The Hi and Lo limit are defined by absolute values. Lo Limit Hi Limit Pass Percentage The Hi and Lo limit are defined by the limit distance (percentage) from the Nominal value. Nominal – ##% Nominal Nominal + ##% Pass Delta limit Test item The Hi and Lo limit are defined by the difference from the nominal value. CS Series capacitance X Reactance CP Parallel capacitance B Susceptance LS Series inductance Z Impedance LP Parallel inductance Y RS Series resistance 60 Admittance RDC DC Resistance PASS-FAIL MODE RP Parallel resistance θ Angle For detailed description of each item, see page37. Configure beep setting Background The beep sounds when the pass/fail test result matches the setting: failed or passed. Panel operation 1. Press the Menu key, then F5 (System). The system configuration appears. Menu F5 Precision LCR Meter LCR-8101 Software version 2.03 Oct 25 2008 Frequency RS-232 Graph mode GPIB Line frequency Beep GPIB address Average 1MHz : 50Hz : OFF :5 : 10 2. Press the Up/Down key and move the cursor to Beep. Beep : OFF 3. Press the Left/Right key to select the beep setting, Off, Pass, or Fail. Off Beep is turned Off Pass Beeps when the test result is pass Fail Beeps when the test result is fail 61 LCR-8000G Series User Manual Beep in repetitive If the repetitive measurement is On, the beep mode might sound continuously. If this becomes a problem, either use the Single mode (press Sing/Rep key) or turn Off the beep. Configure the Average Background The Average function sets the number of samples used, which are then averaged as the final output. The number of samples varies from 1 to 256. Panel operation 1. Press the Menu key, then F5 (System). The system configuration appears. Menu F5 Precision LCR Meter LCR-8101 Software version 2.03 Oct 25 2008 Frequency RS-232 Graph mode GPIB Line frequency Beep GPIB address Average 2. 62 : 50Hz : OFF :5 : 10 Press the Up/Down key and move the cursor to Average. Average 3. 1MHz : 10 Use the number pad to select numerical keys to enter the number of samples to be averaged. A maximum of 256 samples can be selected for averaging. PASS-FAIL MODE Select test item and scale (Pass/Fail test) To select the first measurement item, press F1 repeatedly. CLXBZY F1 To select the second measurement item, press F2 repeatedly. QDRG F2 Circuit model To select the circuit model, series or parallel, press F3 repeatedly. F3 Scale Press F4 (Show/Hide scale) to select scale (Pass/Fail test). F4 Test item Normal *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D Pass/Fail test CLXBZY QDRG *7 MEASUREMENT MODE 0.01234 mF – 0.2179 D Parallel Show Scale 50mVac 1.5000kHz Vm:549.8mV Range Auto Im:724.9pA Speed Med Normal mode HI Lo 0.00mF Hi 20.0mF 50mVac 1.5000kHz Vm:549.8mV Range Auto Im:724.9pA Speed Med CLXBZY QDRG Parallel Hide Scale Abs % Save Nom For Normal (basic) mode details, see page36. 63 LCR-8000G Series User Manual Set parameters For more detailed descriptions, see Basic measurement, page47. How to edit Example 100mV m Backspace All clear Increase Decrease V/A Enter Clear When the entered value does not fit in the range, the nearest available value is selected. Nearest Available When the wrong unit (such as Ω) is entered, the value is cancelled. Unit Mismatched Measurement range (to Auto) Press the Left/Right key repeatedly to move the cursor to Range position, and use the Up/Down key to select Auto (if necessary). Range Auto Speed Slow Single mode Press the Sing/Rep key repeatedly to select Single (manual trigger). To trigger measurement, press the Trigger key. Repetitive mode 64 Press the Sing/Rep key repeatedly to select Rep (automatic trigger). Press the Left/Right key repeatedly to move the cursor to Speed, and use the Up/Down key to select the update rate. Sing/Rep Trig Sing/Rep PASS-FAIL MODE Frequency (except Press the Left/Right key repeatedly to Rdc) move the cursor to Frequency, and use the numerical and unit keys to enter the value. 2.00 Vac 195.00 kHz Frequency step resolution For frequency increase/decrease using Up/Down keys, fine and coarse step settings are available. Press the Code key and enter 10 (Fine) or 11 (Coarse). Voltage Code Press the Left/Right key repeatedly to move the cursor to Voltage, and use the numerical and unit keys to enter the value. 2.00 Vac 195.00 kHz 65 LCR-8000G Series User Manual Single-Step Test Run Run in Absolute mode 1. Press F5 to select Absolute measurement. F5 2. Use the Left/Right key to move the cursor to Hi/Lo value for editing. Lo 0.00mF Hi 20.0mF 3. Use the numerical keys and unit keys to enter the value. The editing value appears at the bottom left corner of the display. Example 1.2mΩ Backspace Range Auto Speed Med Lo Lim: 1.5_ m Ω Enter All clear Clear Increase Decrease Hi and Lo values are automatically swapped if necessary Hi and Lo Swapped 4. The display updates the Hi/Lo result immediately. The result is pass if the bar stays in the central area. The buzzer sounds accordingly. 66 PASS-FAIL MODE Result > Hi HI Result < Lo LO Lo < Result < Hi (Pass) PASS Run in Percentage mode 1. Press F5 to select Percentage measurement. F5 2. Use the Left/Right key to move the cursor to Hi/Lo value for editing. 100.00mD Hi +1.00% Lo –1.00% 3. Use the numerical keys and unit keys to enter the value. The editing value appears at the bottom left corner of the display. Range Auto Speed Med Lo Lim: 1.5_ –2.50% 1.5kH Backspace Enter k H Enter All clear Clear Increase Decrease 67 LCR-8000G Series User Manual Hi and Lo values are automatically swapped if necessary Hi and Lo Swapped 4. The display updates the Hi/Lo result immediately. The result is pass if the bar stays in the central area. The buzzer sounds accordingly. Result > Hi HI Result < Lo LO Lo < Result < Hi (Pass) PASS Run in Delta mode 1. Press F5 to select Delta measurement. F5 2. Use the Left/Right key to move the cursor to Hi/Lo value for editing. 3. Use the numerical keys and unit keys to enter the value. The editing value appears at the bottom left corner of the display. 1.5mF 68 Range Auto Speed Med Lo Lim: 1.5_ m F Enter PASS-FAIL MODE Backspace All clear Clear Hi and Lo values are automatically swapped if necessary Hi and Lo Swapped 4. The display updates the Hi/Lo result immediately. The result is pass if the bar stays in the central area. The buzzer sounds accordingly. Result > Hi HI Result < Lo LO Lo < Result < Hi (Pass) PASS Use display value as nominal Panel operation (For Percentage and Delta only) The displayed value can be used as the nominal value. Press F6 (Save Nom) to copy the display value to the nominal value. F6 1.2345 mF – 0.2179 D 1.2345 mF – 0.2179 D LO PASS 100.00mF Hi +1.00% Lo –1.00% 1.2345mF Hi +1.00% Lo –1.00% 69 LCR-8000G Series User Manual Multi-Step Test Configuration Overview Background The multi-step function can configure and run multiple measurement steps. Maximum 64 programs, 30 steps each, can be programmed and stored in the instrument. Limit type Only the absolute limit testing is available. For percentage limit test, use the single mode (page60). Test item CS Series capacitance B Susceptance CP Parallel capacitance G Conductance LS Series inductance Z Impedance LP Parallel inductance Y RS Series resistance RDC DC Resistance RP Parallel resistance θ X Admittance Angle Reactance For detailed description of each item, see page37. 70 PASS-FAIL MODE Parameters No. of step No. of program Drive Voltage (1mV step) Frequency Bias Speed Hi / Lo Limit Delay Single trigger Automatic trigger Maximum 30 for each program Maximum 64 10mV ~ 2V (DC or AC≤3 MHz) 10mV ~ 1V (AC>3 MHz) 20Hz ~ 1MHz (LCR-8101G) 20Hz ~ 5MHz (LCR-8105G) 20Hz ~ 10MHz (LCR-8110G) Reserved item: internal use only Max, Fast, Med, Slow Follows the measurement range 0 ~ 9999ms, 1ms step Program runs when the Trigger key or F1 (Start) is pressed. Program runs when the LCR8000G detects the DUT. 71 LCR-8000G Series User Manual Configure beep setting Background The beep sounds when the pass/fail test result matches the setting: failed or passed. Panel operation 1. Press the Menu key, then F5 (System). The system configuration appears. Menu F5 Precision LCR Meter LCR-8101 Software version 2.03 Oct 25 2008 Frequency RS-232 Graph mode GPIB Line frequency Beep GPIB address Average 1MHz : 50Hz : OFF :5 : 10 2. Press the Up/Down key and move the cursor to Beep. Beep : OFF 3. Press the Left/Right key to select the beep setting, Off, Pass, or Fail. 72 Off Beep is turned Off Pass Beeps when the test result is pass Fail Beeps when the test result is fail PASS-FAIL MODE Configure the Average Background The Average function sets the number of samples used, which are then averaged as the final output. The number of samples varies from 1 to 256. Panel operation 1. Press the Menu key, then F5 (System). The system configuration appears. Menu F5 Precision LCR Meter LCR-8101 Software version 2.03 Oct 25 2008 Frequency RS-232 Graph mode GPIB Line frequency Beep GPIB address Average 2. : 50Hz : OFF :5 : 10 Press the Up/Down key and move the cursor to Average. Average 3. 1MHz : 10 Use the numerical keys to enter the number of samples to be averaged. A maximum of 256 samples can be selected for averaging. 73 LCR-8000G Series User Manual Enter multi-step mode Panel operation Press the Menu key, then F3 (Multi Step). The multi-step mode menu appears. The last recalled program appears on the display. Menu F3 Create new program Panel operation 1. In the multi-step mode, press F5 (File), then F4 (New). The new program name dialogue opens. MULTI STEP MODE – Set PROGRAM: NONAME 74 F5 F4 LOAD F1 01 02 03 Step DELETE New program name: B Rdc New_ OFF Func 1.0000k Freq 0123456789-_ Save as 1.00 V Volt 10mV ABCDEFGHIJKLMNOPQRSTUVWXYZ Bias New abcdefghijklmnopqrstuvwxyz MAX FAST Spd S 0.0000Ω Hi Edit1.0000 by ↑↓←→ key 0.0000Ω Lo 500.00mS EnterConfirm, Clear- Quit Dly 9999 ms 0 mS QUIT F2 F3 F4 F6 PASS-FAIL MODE 2. Enter the new program name using the arrow keys. Move cursor (Left/Right keys) JKLMNOPQRS Enter the letter (Down key) program name: N_ Delete one letter (Up key) program name: _ 3. Press the Enter key to confirm the file name. To quit the new program mode, press the Clear key. Enter Clear 4. A blank program with the entered name appears. MULTI STEP MODE – Set PROGRAM: New Step Func Freq Volt Bias Spd Hi Lo Dly 01 OFF 02 OFF Prog F1 Copy F2 Delete F3 Save F4 File F5 RUN F6 03 OFF 5. Press F1 (Prog). Step 01 becomes active and changes to Ls measurement mode. For further editing details, see the next page. Step Func 01 OFF Step Func F1 01 Ls 75 LCR-8000G Series User Manual Edit program step How to edit parameter  For selecting parameters, press F1 (Prog) repeatedly.  For entering values, use the numerical and unit keys. F1 Example: k 0.5kHz How to move cursor Enter Backspace All clear Increase Decrease Clear To move the cursor to the editing point, use the arrow keys: up, down, left, and right. Note: The cursor cannot move into blank columns or steps. Panel operation 1. Create new step To create a new step in a program, press F1 (Prog) at Func column “OFF”. The step becomes active and the function changes to Ls. Up to 30 steps are available in a program. Step Func 2. Select item (function) 01 OFF Step Func F1 01 Ls Move the cursor to Func column, press F1 (Prog) repeatedly. The measurement item (function) changes in the following order. F1 Ls → Lp → Q → Cs → Cp → D → Z → θ → Rs → Rp → X → G → B → Y → Rdc → Ls 76 PASS-FAIL MODE Set frequency Move the cursor to Freq column. Func Ls Enter the frequency using the Freq 500.00 numerical keys and unit keys. Volt 2.00 V 20Hz ~ 1MHz/5MHz/10MHz Range 5 digit resolution Example: k 0.5kHz (500Hz) Set voltage Move the cursor to Volt column. Enter the voltage using the numerical keys and unit keys. Freq 500.00 Volt 2.00 V Bias Range 10mV ~ 2V (DC or AC≤3 MHz) (1mV step) 10mV ~ 1V (AC>3 MHz) Example: 100mV Select data capture rate Enter m Move the cursor to Spd column. Select the capture rate by pressing F1 (Prog) repeatedly. V/A Enter Bias MAX Spd 1.0000H Hi F1 DC AC≤ 100Hz AC≤ 2kHz AC> 2kHz AC≥ 1MHz Slow 900ms 1.3s 600ms 600ms 620ms Med 120ms 1.2s 470ms 450ms 470ms Fast 60ms 650ms 180ms 150ms 150ms Max 30ms 600ms 120ms 75ms 120ms 77 LCR-8000G Series User Manual Set Hi limit Move the cursor to Hi column. Enter the Hi limit using the numerical keys and unit keys. Range k Move the cursor to Lo column. Enter the Lo limit using the numerical keys and unit keys. Range Example: 10ms 78 Spd Hi Lo k Move the cursor to Dly (Delay) column. Enter the amount of trigger delay time using the numerical keys and unit keys. Range H Enter MAX 1.0000H 0.0000H follows the specification for each measurement item Example: 1.0kH (for Ls) Set trigger delay MAX 1.0000H 0.0000H follows the specification for each measurement item Example: 1.5kH (for Ls) Set Lo limit Spd Hi Lo H Hi Lo Dly 0 (no delay) ~ 1000ms m Enter 1.0000H 0.0000H 10 ms PASS-FAIL MODE Copy (duplicate) program step Background Copying the step inserts a new, identical step next to the current step (= the step where the cursor resides). Panel operation Press F2 (Copy). A new step with identical contents appears on the right side. Before (step 3 empty) 01 02 Step B Rdc Func Freq 1.0000k 1.00 V Volt 10mV Bias MAX FAST Spd Hi 1.0000 S 0.0000Ω Lo 500.00mS 0.0000Ω Dly 9999 ms 0 mS 03 OFF F2 After (step 2 copied to 3) 01 02 03 Step B Rdc Rdc Func Freq 1.0000k 1.00 V 1.00 V Volt 10mV Bias MAX FAST FAST Spd Hi 1.0000 S 0.0000Ω 0.0000Ω Lo 500.00mS 0.0000Ω 0.0000Ω 0 mS Dly 9999 ms 0 mS Delete program step Background Deleting the step deleted the currently selected step (= where the cursor resides). The other step numbers are decreased by 1 (shifted to the left in the table). Panel operation Press F3 (Delete). The current step is deleted, and the whole table shifts to the left. Before (step 2 deleted) 01 02 03 Step B G Rdc Func Freq 1.0000k 1.20 V 1.00 V Volt 10mV Bias MAX MED FAST Spd Hi 1.0000 S 1.5000kS 0.0000Ω Lo 500.00mS 0.0000S 0.0000Ω 0 mS Dly 9999 ms 10 mS F3 After (step 3 becomes 2) 01 02 Step B Rdc Func Freq 1.0000k 1.00 V Volt 10mV Bias MAX FAST Spd Hi 1.0000 S 0.0000Ω Lo 500.00mS 0.0000Ω Dly 9999 ms 0 mS 03 OFF 79 LCR-8000G Series User Manual Multi-Step Program Run Run program Panel operation 1. When editing is completed, press F6 (Run) to run the multi-step program. The display changes to program running mode. MULTI STEP MODE – Run PROGRAM: Demo F6 Start F1 SET F6 2. Press the Sing/Rep key to select Sing/Rep Single (manual trigger) or Repetitive (automatic trigger). Manual trigger Auto trigger 80 Manual trigger Starts running the program when the Trigger key or F1 (Start) is pressed. Trig F1 Auto trigger Starts running the program when the LCR-8000G detects the DUT is connected to the fixture (scans the fixture continuously). Manual triggering is also available. PASS-FAIL MODE 3. In Manual (single) mode press F1 (Start) or the Trigger key to manually start the program. The test results show up according to the program contents. 1 2 3 4 MULTI STEP MODE – Run PROGRAM: Demo Freq Volt Result 1.2000k 1.00 Ls 9.8936mH 10.000k 1.00 Q 22.708 Q 100.00k 1.00 Ls 10.852mH DC 1.00 Rdc 25.555 Ω Trig F1 Start LO PASS HI PASS SET Manual (single) Mode 4. In Auto trigger mode, it will autoscan continuously and will not start until a DUT has been detected. To manually trigger the program, press F1 (Start) or the Trigger key. 1 2 3 4 MULTI STEP MODE – Run PROGRAM: Demo Freq Volt Result 1.2000k 1.00 Ls 9.8936mH 10.000k 1.00 Q 22.708 Q 100.00k 1.00 Ls 10.852mH DC 1.00 Rdc 25.555 ? FAIL Trig F1 Start LO PASS HI PASS A u t o s c a n n i n g SET ... Auto trigger (repetitive) mode 81 LCR-8000G Series User Manual The rightmost row shows the result for each step. Failed: below the Lo limit Failed: above the Hi limit Passed The left bottom corner shows the result for the whole program. PASS All steps passed FAIL One or more steps failed 5. To return to the program setting menu, press F6 (Set). 82 F6 PASS-FAIL MODE Multi-Step Program File Operation Save program Save (overwrite) Press F4 (Save) to save the program being edited. A confirmation message appears on the display. F4 Program saved Save as (new program) 1. Press F5 (File), then F3 (Save As). The new program name dialogue appears. MULTI STEP MODE – Set PROGRAM: NONAME F5 F3 LOAD F1 01 02 03 Step DELETE Save program as: B RdcNew_ OFF Func 1.0000k Freq 0123456789-_ Save as 1.00 V Volt 10mV ABCDEFGHIJKLMNOPQRSTUVWXYZ Bias New abcdefghijklmnopqrstuvwxyz MAX FAST Spd S 0.0000Ω Hi Edit1.0000 by ↑↓←→ key 0.0000Ω Lo 500.00mS Enter- Confirm, Clear- Quit Dly 9999 ms 0 mS QUIT F2 F3 F4 F6 2. Enter the new program name using the arrow keys. Move cursor (Left/Right keys) JKLMNOPQRS Enter the letter (Down key) program name: N_ Delete one letter (Up key) program name: _ 83 LCR-8000G Series User Manual 3. Press the Enter key to confirm the file name. To quit the Save as mode, press the Clear key. Enter Clear 4. The display goes back to the previous mode, with the program changed to the new name. MULTI STEP MODE – Set PROGRAM: NEW 01 02 Step B Rdc Func Freq 1.0000k 1.00 V Volt 10mV Bias MAX FAST Spd Hi 1.0000 S 0.0000Ω Lo 500.00mS 0.0000Ω Dly 9999 ms 0 mS 84 Prog 03 OFF Copy Delete Save File RUN PASS-FAIL MODE Recall (load) existing program Panel operation 1. Press F5 (File). The file menu appears. F5 2. Press F1 (Load). The existing programs appear, listed in alphabetical order. F1 3. Use the arrow key to move the cursor to the program to be recalled (loaded). 4. Press F1 (Load) to recall the selected program on the display. F1 5. To cancel loading and go back to the previous menu, press F6 (Quit). F6 85 LCR-8000G Series User Manual Delete existing program Recall program 1. Press F5 (File), then F2 (Delete). The existing programs appear, listed in alphabetical order. F5 2. Use the arrow key to move the cursor to the program to be deleted. 3. Press F5 (Del). The buzzer beeps and a warning sign appear. Press the Enter key (confirm) or the Clear key (cancel). F5 Enter Clear DELETE FILE Delete New ? Enter-Yes Clear-Quit Note: the currently active program cannot be deleted. An error message appears. program being used! 4. To go back to the previous menu without deleting any program, press F6 (Quit). 86 F6 GRAPH MODE GRAPH MODE The graph function shows the component characteristics in visual manner. Voltage and Frequency sweep are selectable for the horizontal scale. When the graph gets out of the vertical range, the LCR-8000G can automatically adjust the scale. Marker operation is available for detailed observation. Item selection Enter graph mode ........................................... 88 Select measurement item ................................ 89 Horizontal scale Set horizontal axis (Voltage) ........................... 90 setting Set horizontal axis (Frequency) ....................... 92 Vertical scale setting Set vertical axis (Manual + Absolute) .............. 94 Set vertical axis (Manual + Percentage) ........... 96 Set vertical axis (Auto + Absolute) .................. 98 Set vertical axis (Auto + Percentage) ............... 99 Speed/Step Setting Running Graph Measurement Select measurement speed (capture timing) . 101 Select step size ............................................. 101 Run measurement ......................................... 103 Adjust vertical scale ...................................... 105 Observe Graph Data...................................... 106 87 LCR-8000G Series User Manual Item Selection Enter graph mode Panel operation 1. Press the Menu key. The main menu appears. Menu MAIN MENU AC MEAS F1 Rdc MEAS F2 MULTI STEP F3 GRAPH F4 SYSTEM F5 2. Press F4 (Graph). The Graph mode display appears. F4 GRAPH MODE - Set 88 Lin(V) Log(V) Sweep: Drive level Start: 50mV Stop : 1.00 V Abs % Freq : 10.000kHz Speed: Fast Manual Fit Step Size: 1 2 3 4 Cs Hi: 10.500% Start Cs Lo: -99.500% Nominal:100.00mF Ls Lp Q Cs Cp D Z θ Rs Rp X G B Y F1 View F6 F2 F3 F4 F5 GRAPH MODE Select measurement item Range θ Ls Series inductance Angle Lp Parallel inductance Rs Series resistance Q Quality factor Rp Parallel resistance Cs Series capacitance X Reactance Cp Parallel capacitance G Conductance D Dissipation factor B Susceptance Z Impedance Y Admittance For detailed description of each item, see page37. Panel operation Press F5 repeatedly to select the graph measurement item. F5 89 LCR-8000G Series User Manual Horizontal Scale Setting Set horizontal axis (Voltage) Background The X (horizontal) axis is selectable from Voltage and Frequency sweep.  When Voltage sweep is selected: measurement Frequency is fixed  When Frequency sweep is selected: measurement Voltage is fixed Select Drive level 1. Press the Up/Down key and move (Voltage) the cursor to Sweep. Sweep: Frequency 2. If necessary, press the Left/Right key to change the sweep setting to Voltage (Drive Level). Frequency Set start Voltage Drive Level 3. Press the Up/Down key and move the cursor to Start. Start: : 50mV Use the numerical keys to enter the starting Voltage. Range 10mV ~ 2V (AC≤3 MHz) 10mV ~ 1V (AC>3 MHz) 100mV 1V Backspace m V/A *1mV step V/A Enter Enter All clear Clear If a wrong unit is entered, the value is cancelled. 90 GRAPH MODE Unit Mismatched If a value outside of the range is entered, the closest available value is automatically selected. Nearest Available If the entered start Voltage level is higher than the stop Voltage, the two values are swapped. Hi and Lo Swapped Set stop Voltage 4. Repeat the above step for the stop Voltage. Stop:1.00 V Range 10mV ~ 2V (AC≤3 MHz) 10mV ~ 1V (AC>3 MHz) *1mV step (Stop Voltage must be higher than the Start Voltage) Set measurement 5. Use the Up/Down key to move the Frequency cursor to Frequency setting (Freq). Freq : 10.000kHz Use the numerical keys to enter the measurement frequency. Range 20Hz ~ 1MHz/5MHz/10MHz 50Hz 1MHz Backspace Enter M Enter All clear Clear Select Lin/Log scale 6. Press F1 to select the horizontal scale, Linear or Logarithmic. Lin(V) Log(V) F1 91 LCR-8000G Series User Manual Set horizontal axis (Frequency) Background The X (horizontal) axis is selectable from Voltage and Frequency sweep.  When Voltage sweep is selected: measurement Frequency is fixed  When Frequency sweep is selected: measurement Voltage is fixed Select Frequency 1. Press the Up/Down key and move the cursor to Sweep. Sweep: Drive Level 2. If necessary, press the Left/Right key to change the sweep setting to Frequency. Drive Level Set start Frequency Frequency 3. Press the Up/Down key and move the cursor to Start. Start: : 20.000Hz Use the numerical keys to enter the starting Frequency. Range 20Hz ~ 1MHz/5MHz/10MHz (stop Frequency must be higher than the start Frequency) 50Hz 1.2kHz Backspace Enter k Enter All clear Clear If a wrong unit is entered, the value is cancelled. 92 GRAPH MODE Unit Mismatched If a value outside of the range is entered, the closest available value is automatically selected. Nearest Available If the entered start Frequency is higher than the stop Frequency, the two values are swapped. Hi and Lo Swapped Set stop Frequency 4. Repeat the above step for the stop Frequency. Range 20Hz ~ 1MHz/5MHz/10MHz (stop Frequency must be higher than the start Frequency) Set measurement 5. Use the Up/Down key to move the Voltage cursor to Voltage setting (Level). Level: 1.00 V Use the numerical keys to enter the measurement Voltage. Range 10mV ~ 2V (AC≤3 MHz) 10mV ~ 1V (AC>3 MHz) 100mV 1V Backspace m V/A Enter V/A Enter All clear Clear Select Lin/Log scale 6. Press F1 to select the horizontal scale, Linear or Logarithmic. Lin(Hz)Log(Hz) F1 93 LCR-8000G Series User Manual Vertical Scale Setting Set vertical axis (Manual + Absolute) Background Panel operation The Y (vertical) axis configuration is available for:  Manual or Automatic fit: Selects whether the vertical range is manually set or automatically adjusted as the graph is plotted.  Absolute or Percentage: Selects how the vertical range is defined, as absolute values (minimum and maximum) or percentage of the nominal (center) value. 1. Press F2 to select Abs. Abs % F2 2. Press F3 to select Manual Fit. Manual Fit F3 3. The maximum (Hi) and minimum (Lo) level of the vertical axis appears. Step Size: 1 2 3 4 Cs Hi: 5.8240mF Cs Lo: 3.5626mF Set Hi level 4. Press the Up/Down key to move the cursor to Hi level. Cs Hi: 5.8240mF 5. Use the numerical keys to enter the Hi level. Range 1.2mΩ 94 According to each measurement item (see page37). m Ω Enter GRAPH MODE 1.5kH Backspace k All clear H Enter Clear If a wrong unit is entered, the value is cancelled. Unit Mismatched If a value outside of the range is entered, the closest available value is automatically selected. Nearest Available If the entered Lo level is higher than the Hi level, the two values are swapped. Hi and Lo Swapped Set Lo level 6. Press the Up/Down key to move the cursor to Lo level and repeat the same step. Cs Lo: 3.5626mF 95 LCR-8000G Series User Manual Set vertical axis (Manual + Percentage) Background Panel operation The Y (vertical) axis configuration is available for:  Manual or Automatic fit: Selects whether the vertical range is manually set or automatically adjusted as the graph is plotted.  Absolute or Percentage: Selects how the vertical range is defined, as absolute values (minimum and maximum) or percentage of the nominal (center) value. 1. Press F2 to select % (Percentage). Abs % F2 2. Press F3 to select Manual Fit. Manual Fit F3 3. The Hi percentage, Lo percentage, and the nominal value of the vertical axis appear. Step Size: 1 2 4 8 Cs Hi: 10.500% Cs Lo: -19.500% Nominal:100.00mF Set Hi level 4. Press the Up/Down key to move the cursor to Hi percentage. Cs Hi: 10.500% 5. Use the numerical keys to enter the percentage. Range 50% 1200% 96 –1.0x1012 (Tera) ~ 1.0x1012 (Tera) % Enter k Enter GRAPH MODE Backspace All clear Clear If a wrong unit is entered, the value is cancelled. Unit Mismatched If the entered Hi level is lower than the Lo level, the two values are swapped. Hi and Lo Swapped Set Lo level 6. Press the Up/Down key to move the cursor to Lo percentage and repeat the same step. Cs Lo: -19.500% Range Set Nominal –1.0x1012 (Tera) ~ 1.0x1012 (Tera) % 7. Press the Up/Down key to move the cursor to Nominal. Nominal:1.0000mF 8. Use the numerical keys to enter the nominal value on which the Hi and Lo percentages are based. Range According to each measurement item (see page37). 1.2mΩ m Ω Enter 1.5kH k H Enter Backspace All clear Clear If a wrong unit is entered, the value is cancelled. Unit Mismatched 97 LCR-8000G Series User Manual If a value outside of the range is entered, the closest available value is automatically selected. Nearest Available Set vertical axis (Auto + Absolute) Background Panel operation The Y (vertical) axis configuration is available for:  Manual or Automatic fit: Selects whether the vertical range is manually set or automatically adjusted as the graph is plotted.  Absolute or Percentage: Selects how the vertical range is defined, as absolute values (minimum and maximum) or percentage of the nominal (center) value. 1. Press F2 to select Abs (Absolute). Abs % F2 2. Press F3 to select Auto Fit. Auto Fit F3 3. Nothing new appears on the display: the LCR8000G automatically configures the vertical scale according to the measured data. Step Size: 1 2 4 8 98 GRAPH MODE Set vertical axis (Auto + Percentage) Background Panel operation The Y (vertical) axis configuration is available for:  Manual or Automatic fit: Selects whether the vertical range is manually set or automatically adjusted as the graph is plotted.  Absolute or Percentage: Selects how the vertical range is defined, as absolute values (minimum and maximum) or percentage of the nominal (center) value. 1. Press F2 to select % (Percentage). F2 2. Press F3 to select Auto Fit. Auto Fit F3 3. The nominal value appears on the display. Step Size: 1 2 4 8 Nominal:1.0000mF Set Nominal level 4. Press the Up/Down key to move the cursor to Nominal. Nominal:1.0000mF 5. Use the numerical keys to enter the nominal value on which the Hi and Lo percentages are based. Range According to each measurement item (see page37). 1.2mΩ m Ω Enter 1.5kH k H Enter 99 LCR-8000G Series User Manual Backspace All clear Clear If a wrong unit is entered, the value is cancelled. Unit Mismatched If a value outside of the range is entered, the closest available value is automatically selected. Nearest Available 6. The LCR-8000G automatically configures the percentage (below and above the nominal level) of the vertical scale. 100 GRAPH MODE Speed / Step Setting Select measurement speed (capture timing) Background The speed is the same setting used in the basic measurement (page56), except in the graph mode, maximum speed setting is not available. Panel operation 1. Press the Up/Down key and move the cursor to Speed. Speed: Fast 2. If necessary, press the Left/Right key to change the setting (time per capture). DC AC≤ 100Hz AC≤ 2kHz AC> 2kHz AC≥ 1MHz Slow 900ms 1.3s 600ms 600ms 620ms Med 120ms 1.2s 470ms 450ms 470ms Fast 60ms 650ms 180ms 150ms 150ms 101 LCR-8000G Series User Manual Select step size Background The step size selects whether to plot every captured data (step size 1) or to plot only the selected data (step size 2, 4, 8 = every 2, 4, 8 data). Step size 1: detailed graph, slow capturing Step size 2, 4, 8: simplified graph, fast capturing Panel operation 1. Press the Up/Down key and move the cursor to Step size. Step Size: 1 2 4 8 2. If necessary, press the Left/Right key to change the setting. Range 102 1 (plot all data), 2, 4, 8 GRAPH MODE Running Graph Measurement Run measurement Panel operation 1. When the configuration is completed, press F4 (Start) to start the graph measurement. F4 2. The display changes into graph mode and starts plotting the measurement data. Measurement Ongoing *7 (F) CAPACITANCE VS FREQUENCY 300.0n 250.0n (Hz) 20.0 40.0 MKR: 40.000 Hz Cs : 247.04nF Latest Measurement Data (Updated) 60.0 80.0 LEVEL: 10.0mV SPEED:FAST 100 ABORT Drive Level (or Frequency) and Speed 3. To abort the measurement, press F6 (Abort). F6 4. When completed, the buzzer sounds once and the display shows the whole plotted data. 103 LCR-8000G Series User Manual Marker (F) CAPACITANCE VS FREQUENCY FUNCTION F1 300.0n 250.0n (Hz) 20.0 40.0 MKR: 32.000 Hz Cs : 250.00nF 60.0 80.0 LEVEL: 10.0mV SPEED:FAST 100 RETURN Marker position and Measurement data 5. To go back to the configuration mode, press F6 (Return). 104 F6 F6 GRAPH MODE Adjust vertical scale Background When the measured data does not fit into the original vertical scale, use this function so that the LCR-8000G automatically adjusts the scale to include the whole plotted data. Panel operation 1. If part or all of the plotted data are out of the vertical range, use the automatic fit function. Press F1 (Function), then F2 (Fit). (Partially out of range) F1 F2 (Totally out of range) CAPACITANCE VS FREQUENCY (F) FUNCTION (F) 300.0n 300.0n 250.0n 250.0n CAPACITANCE VS FREQUENCY FUNCTION (Hz) 20.0 40.0 60.0 MKR: 32.000 Hz Cs : 25.000nF 80.0 LEVEL: 10.0mV SPEED:FAST 100 (Hz) 20.0 RETURN 40.0 MKR: 32.000 Hz Cs : 25.000nF 60.0 80.0 LEVEL: 10.0mV SPEED:FAST 100 RETURN 2. The vertical range is automatically adjusted to include the whole plotted data. (F) CAPACITANCE VS FREQUENCY FUNCTION 400.0n 100.0n (Hz) 20.0 40.0 MKR: 60.000 Hz Cs : 60.000nF 60.0 80.0 LEVEL: 10.0mV SPEED:FAST 100 RETURN 105 LCR-8000G Series User Manual Observe Graph Data Background When the graph is completed (page103) and the vertical scale is adjusted (page105), use the marker to observe the measurement data in detail. In the configuration mode, if the graph is already available, it can be viewed by pressing F6 (View). Panel operation F6 1. To move the marker, press the Left/Right key. As the marker moves, the marker position and measurement data changes. (F) CAPACITANCE VS FREQUENCY FUNCTION 300.0n Marker 250.0n Marker position and Measurement 20.0 40.0data 60.0 MKR: 32.000 Hz Cs : 250.00nF Move marker to the peak Move marker to the bottom 106 (Hz) 80.0 100 LEVEL: 10.0mV SPEED:FAST RETURN 2. To move the marker to the peak of the plot, press F1 (Function) and F3 (Peak). Press F1 (View) to go back to the previous display. F1 3. To move the marker to the bottom of the plot, press F1 (Function) and F4 (Dip). Press F1 (View) to go back to the previous display. F1 F3 F4 REMOTE CONTROL REMOTE CONTROL This chapter describes basic aspects of IEEE488.2 based remote control. Both RS-232C and GPIB interface can be used for remote control. Interface Configuration Configure RS-232C interface .......................... 108 Configure GPIB interface ............................... 109 Command syntax Command Syntax .......................................... 111 Command set System command ..................................................... 112 Measurement command .......................................... 113 Multi-step program command ................................. 115 Calibration command ............................................... 117 Graph command....................................................... 118 107 LCR-8000G Series User Manual Interface Configuration Configure RS-232C interface RS-232C configuration Connector DB-9, Male Baud rate 9600 Parity None Data bit 8 Stop bit 1 Connect the RS-232C cable to the rear panel port: DB-9 male connector. Pin assignment 12345 RS232 2: RxD (Receive data) 3: TxD (Transmit data) 6789 5: GND 7: RTS (Request to send) 8: CTS (Clear to send) 1, 4, 6, 9: No connection PC connection Use the Null Modem connection as in the below diagram. LCR-8101 108 PC Pin2 RxD TxD Pin2 Pin3 TxD RxD Pin3 Pin5 GND GND Pin5 Pin7 RTS RTS Pin7 Pin8 CTS CTS Pin8 REMOTE CONTROL Configure GPIB interface Connection Connect the GPIB cable to the rear panel port: 24-pin female connector. Pin assignment GPIB constraints 12 1 24 13 Pin1 Data line 1 Pin13 Data line 5 Pin2 Data line 2 Pin14 Data line 6 Pin3 Data line 3 Pin15 Data line 7 Pin4 Data line 4 Pin16 Data line 8 Pin5 EOI Pin17 REN Pin6 DAV Pin18 Ground Pin7 NRFD Pin19 Ground Pin8 NDAC Pin20 Ground Pin9 IFC Pin21 Ground Pin10 SRQ Pin22 Ground Pin11 ATN Pin23 Ground Pin12 Shield (screen) Pin24 Signal ground  Maximum 15 devices altogether, 20m cable length, 2m between each device  Unique address assigned to each device  At least 2/3 of the devices turned On  No loop or parallel connection 109 LCR-8000G Series User Manual Select GPIB address 1. Press the Menu key and F5 (System). The system configuration appears. Menu F5 Precision LCR Meter LCR-8101 Software version 2.03 Oct 25 2008 Frequency RS-232 Graph mode GPIB Line frequency Beep GPIB address Average 1MHz : 50Hz : OFF :5 : 10 2. Press the Up/Down key and move the cursor to GPIB. GPIB address :5 3. Use the numerical keys to enter the GPIB address, 1 ~ 30. GPIB address : 30 Address 5 110 Enter REMOTE CONTROL Command Syntax Compatible standard  IEEE488.2, 1992 (fully compatible)  SCPI, 1994 (partially compatible) Command format trig:del:mod LF 1: command header 2: single space 1 2 3 4 3: parameter 4: message terminator Parameter Message terminator Type Description Example boolean logic 0, 1 integers 0, 1, 2, 3 decimal numbers 0.1, 3.14, 8.5 floating point 4.5e-1, 8.25e+1 discrete data on, off, max Terminates a command line. Note that the LCR8000G accepts only LF (line feed) as the terminator. LF Note line feed code  Commands introduced here are described in abbreviated style (same functionality)  Commands are non-case sensitive. 111 LCR-8000G Series User Manual Command Set System command *cls Clears the Event Status Register and associated status data structure. *ese Sets or returns the current contents of the Standard Event Status Enable Register as an integer in the range 0 to 255. *ese? *esr? Returns the current contents of the Standard Event Status Register as an integer in the range 0 to 255. It also clears ESR. *idn? Returns the LCR identification: Manufacturer, Model No, Serial No, Firmware version. Example: GW INSTEK, 8101, 0, 2.04 *loc Sets the instrument to local state. *opc Sets the OPC bit of the ESR register. *opc? Always returns 1 as instrument commands are always processed sequentially. *opt? Returns the hardware options installed in the instrument. Example: 1MHz, GPIB, RS232, GRAPH MODE *rst Resets the LCR-8000G. *sre *sre? Sets or returns the current contents of the Service Request Enable Register as an integer in the range 0 to 63 and 128 to 255. :stat:oper:con? Reads Status Operation Condition register. :stat:oper:enab Sets Status Operation Enable register. :stat:oper:even? Reads Status Operation Event register. 112 REMOTE CONTROL *stb? Returns the current contents of the Status Byte with the Master Summary bits as an integer in the range 0 to 255. Bit 6 represents Master Summary Status rather than Request Service. *trg Triggers a direct measurement, but does not return the results to the controller. This is the same as a GET (Group Execute Trigger) command. *wai Command has no effect as commands are processed sequentially. Measurement command :dump-bmp Returns the current display as a windows compatible bitmap. :beep Sets or returns the buzzer condition. :beep? Set parameter: off (disabled), pass (beeps when passed), fail (beeps when failed) Return parameter: 0 (off), 1 (pass), 2 (fail) :loc-trig Turns On/Off local triggering in remote control Parameter: on (local control), off (remote control) :meas:equ-cct :meas:equ-cct? Selects or returns equivalent circuit. Send parameter: ser, par Return parameter: 0 (parallel), 1 (series) :meas:freq Sets or returns frequency of AC measurement in Hz. :meas:freq? Parameter example: (1kHz) 1k, 1000 Hz, 1E3 :meas:func Selects first or second AC measurement function. Parameter: c, l, x, b, z, y, q, d, r, g Example: :meas:func:c;d (C+D measurement) :meas:func:major Returns the first AC function. ? Parameter: 0 (C), 1 (L), 2 (X), 3 (B), 4 (Z), 5 (Y) 113 LCR-8000G Series User Manual :meas:func:minor Returns the second AC function. ? Parameter: 0 (Q), 1 (D), 2 (R), 3 (G) If the first function is Z or Y, this command returns the last non-polar setting :meas:hi-lim Sets or returns scale high limit as percentage. Example: :meas:hi-lim 5.0 (+5.0%) :meas:hi-lim? :meas:lev Sets or returns drive level for currently selected test. :meas:lev? Parameter example: (200mV) 0.2V, 200m :meas:limit Sets or returns percentage, absolute or delta scale limits. :meas:limit? Send parameter: abs (absolute), perc (percentage), delta (delta) Return parameter: 0 (absolute), 1 (percentage), 2 (delta) :meas:lo-lim Sets or returns scale low limit as percentage. Example: :meas:hi-lim –5.0 (–5.0%) :meas:lo-lim? :meas:nom :meas:nom? Sets or returns nominal value for scale. Send parameter: according to the active unit (1e-6f = 1uF) Return parameter example: .10000000e-1 = 10mH :meas:range Selects or returns auto-ranging or range-hold on range N. :meas:range? Send parameter: auto, hold, 1 ~ 7 Return parameter: 0 (auto), 1 ~ 7 :meas:scale :meas:scale? 114 Shows or hides the scale bar or returns the status. Send parameter: on, off Return parameter: 0 (scale hidden), 1 (scale visible) REMOTE CONTROL :meas:speed :meas:speed? Selects or returns measurement speed. Send parameter: max, fast, med, slow Return parameter: 0 (max), 1 (fast), 2 (med), 3 (slow) :meas:test:ac Selects AC measurement. :meas:test:rdc Selects Rdc measurement. :meas:test? Returns measurement type. Parameter: 0 (AC measurement), 1 (Rdc measurement) :meas:trig Triggers an AC or Rdc measurement manually. Returns the 1st and 2nd measurement (only the 1st in Rdc). Example: –396.283E-6, 99.558 (uF/D) :mode? Query the currently selected operating mode. :rep Enables or returns repetitive measurements when unit is returned to local control. :rep? Send parameter: on (repetitive), off (single shot) Return parameter: 0 (single shot), 1 (repetitive) Example: :rep on (repetitive mode) :trig Triggers a measurement in the current mode. Multi-step program command :multi:set Switches to the multi-step set-up page. :multi:del Removes a step in the program. Parameter: 1 ~ 30 Example: :multi:del 2 (deletes step 2) 115 LCR-8000G Series User Manual :multi:delay Sets or returns trigger delay time for currently selected step in millisecond. :multi:delay? Parameter: 0ms ~ 1000ms Example: :multi:delay 10m (10ms) :multi:freq Sets or returns the frequency for the currently selected step in Hz. :multi:freq? Parameter: 20 ~ 1/5/10MHz Example: :multi:freq 1e3 (1kHz) :multi:func Sets or returns measurement type for the currently selected step. :multi:func? Send parameter: LS, LP, Q, CS, CP, D, Z, PHASE, RS, RP, X, G, B, Y, RDC Return parameter: 1 (Z), 2 (Ls), 3 (Lp), 4 (Cs), 5 (Cp), 7 (Y), 8 (G), 9 (P), 10 (Q), 11 (D), 12 (Rs), 13 (Rp), 14 (B), 15 (X), 16 (Rdc) Example: :multi:func ls (Series inductance) :multi:hi-lim Sets or returns the higher test limit of the currently selected step. :multi:hi-lim? Example: :multi:hi-lim 10 (limit to 10.0) :multi:lev Sets or returns the drive level for the currently selected step in Voltage. :multi:lev? Parameter: 10mV ~ 2V (DC/AC≤3 MHz) 10mV ~ 1V (AC>3 MHz) Example: :multi:lev 200m (200mV) :multi:load Loads an existed file to run or edit. :multi:lo-lim Sets or returns the lower test limit of the currently selected step. :multi:lo-lim? Example: :multi:lo-lim –5 (limit to –5) 116 Example: :multi:load demo (file name demo) REMOTE CONTROL :multi:new Create a new multi-step program. :multi:res? Query the results of the test for each step. Example: :multi:new demo (file name demo) Parameter: 0 (Pass), 1 (Fail Hi), 2 (Fail Lo) Example: 1, +1.5E-7, 0, –0.2E-4 (step 1 failed on high limit, step 2 passed) :multi:run Switches to the multi-step run page. :multi:save Save currently edited file. :multi:speed Sets or returns the measurement speed for the currently selected step. :multi:speed? Send parameter: Max, Fast, Med, Slow Return parameter: 0(Max), 1(Fast), 2(Med), 3(Slow) Example: :multi:speed max (maximum speed) :multi:test Selects or returns the step being edited. :multi:test? Parameter: 1 ~ 30 Example: :multi:test 1(step 1 selected) :multi:trig Starts running multi-step measurements. Calibration command :cal:oc-trim Performs open circuit trimming. Parameter: 1 (Spot trim), 2 (<10kHz), 3 (<100kHz), 4 (All frequency) Example: :cal:oc-trim 4 (calibrate for all frequency) :cal:sc-trim Performs short circuit trimming. Parameter: 1 (Spot trim), 2 (<10kHz), 3 (<100kHz), 4 (All frequency), 5 (Rdc) Example: :cal:sc-trim 4 (calibrate for all frequency) :cal:res? Returns the result of the calibration performed. Parameter: 0 (fail), 1 (pass) 117 LCR-8000G Series User Manual Graph command :graph : graph:func Select graphing mode / path. Set the measurement function for the graph mode. Parameter: ls lp q cs cp d z phase rs rp x g b y rdc Example: :graph:func lp Returns the current measurement function of the graph mode. : graph:func? : graph:sweep : graph:sweep? Return parameter: 1 (Z), 2 (Ls), 3 (Lp), 4 (Cs), 5 (Cp), 7 (Y), 8 (G), 9 (P), 10 (Q), 11 (D), 12 (Rs), 13 (Rp), 14 (B), 15 (X), 16 (Rdc), 0 (none) Set the sweep mode for the graph mode. Parameter: freq, lev Example: (drive level) :graph:sweep lev Returns the current sweep mode of the graph mode. Return Parameter: 0(frequency), 1(drive level) Set the start frequency or level for the sweep. : graph:st Parameter: (26 Hz) 26, 2.6e1, 2.600000e+01, .026k. Example: :graph:st 2.6e1 :graph:st? Returns the start frequency or level of the sweep. Set the stop frequency or level for the sweep. :graph:sp Parameter: (260 Hz) 260, 2.6e2, 2.600000e+02 (.26k) Example: :graph:sp 260 :graph:sp? Returns the stop frequency or level of the sweep. Set the frequency if the sweep mode is drive level. :graph:freq Parameter: (150 kHz) 150000, 1.5e5, 1.500000e+05 (1.5k) Example: :graph:freq 150k 118 REMOTE CONTROL :graph:freq? Returns the frequency if the sweep mode is drive level Set the drive level if the sweep mode is frequency. Parameter: (.1 volts) .1v, 100m, 1e-1, 1.000000e-1 :graph:lev Example: :graph:lev 100m  :graph:lev? NOTE: e1 or e+1 is invalid for the lev command. 2 volts maximum. Returns the drive level if the sweep mode is frequency. Set measurement speed for the sweep. :graph:speed :graph:speed? :graph:step Parameter: fast, med, slow Example: :graph:speed med Returns the measurement speed of the sweep. Return Parameter: 1(fast), 2 (med), 3(slow) Select the number of pixels between each measured point. Parameter: 1(step size 1),2(step size 2 ),3(step size 4),4(step size 8) Example: (step size 8) :graph:step 4 :graph:step? Query the current step size for the plot. Set the maximum value for Y-axis in the graph mode. :graph:hi-lim Parameter: real number up to 1^12 (1e+12) Example: graph:hi-lim 8.5e9 Note: Set the low limit before setting the high limit. The graph limits will only work whilst the “autofit” function is set to “off” :graph:hi-lim? Returns the maximum value of Y-axis in the graph mode. 119 LCR-8000G Series User Manual Set the minimum value for Y-axis in the graph mode. :graph:lo-lim Parameter: real number up to 1^12 (1e+12) Example: :graph:lo-lim -8.5e9 Note: The graph limits will only work whilst the “autofit” function is set to “off” :graph:lo-lim? Returns minimum value for Y-axis of the graph mode. Set the nominal value for the graph. :graph:nom Parameter: 3, 1e-1, 100e1 Example: :graph:nom 1e-1 Note: Nominal can only be set if the graph limit is set as a %(percentage) :graph:nom? Returns the current graph nominal. Selects the frequency scale type. :graph:logf Parameter: on, off Example: :(on) graph:logf on :graph:logf? :graph:limit :graph:limit? 120 Returns the current frequency scale type. Returned parameter 1(on), 0(off). Selects absolute or relative plotting. Parameter: perc( % relative), abs(absolute) Example: :graph:limit abs Returns the current graph plotting mode. Returned parameter: 0(abs), 1(percentage) REMOTE CONTROL Returns the measurement from the current marker position. :graph:mk? Returned parameter: Depending on the measured parameters. Example: (Series inductance) -3.510606e-03 (mH) Note: A graph must be plotted first. Move the marker to the frequency nearest the supplied value. :graph:mkf Parameter: (150 kHz) 150000, 150k, 1.5e5 :graph:mkf? Returns the current marker frequency. :graph:set :graph:view :graph:autofit :graph:autofit? Note: the marker must be within the limits of the currently drawn graph. The x-axis must be frequency bound. Go to the graph mode set-up page. Example: :graph:set Redraw the graph. Example: :graph:view Set auto-fit condition for the graph mode. Parameter: on, off Example: : graph:autofit on Query the auto-fit condition. Returned parameter: 0 (off), 1 (on) Fit the Y-axis scale to the current measurement data. :graph:fit Example: :graph:fit Note: The graph will only scale. It will not plot again. :graph:trig Start plotting a graph with the current settings. Example: :graph:trig 121 LCR-8000G Series User Manual :graph:peak Move the marker to the highest point on the current graph. Example: :graph:peak :graph:dip Move the marker to the lowest point on the current graph. Example: :graph:dip :graph:print Print the current graph on an Epson compatible printer. Example: :graph:print 122 CALIBRATION CALIBRATION Overview Background Calibration (trimming) eliminates stray capacitance and series impedance from the testing fixture. It is required when using the instrument in a new environment, or using a new set of testing fixtures. O/C trimming The testing fixture clips are separated by a distance equal to the normal testing position. S/C trimming The testing fixture clips are connected by a piece of wire or a component lead (but no direct connection between the clips). 123 LCR-8000G Series User Manual Alternative S/C trimming 124 An alternative method of S/C trimming. S S F F CALIBRATION Trim the LCR-8000G Fixture setting Prepare the fixture accordingly. (In order to run a complete trimming, both O/C and S/C trimming have to be done.) O/C trimming S/C trimming Alt. S/C trimming Panel operation S S F F 1. Press the Calibration key. The calibration mode menu appears. Calibration CALIBRATE MODE * O/C Trim F1 S/C Trim F2 MEASURE F6 To go back to the measurement mode, press F6 (MEASURE). F6 125 LCR-8000G Series User Manual 2. Press F1 (O/C Trim) or F2 (S/C Trim) to select the trimming mode. F1 F2 3. The trimming menu appears. S/C trimming SHORT THE TEST LEADS SELECT A CHOICE TO CONTINUE... DC F1 Spot freq F2 <= 10kHz F3 <= 100kHz F4 All freq F5 Abort F6 4. Always select F5 (All freq) when using the standard fixture set included in the LCR-8000G package. F5 DC (S/C trimming only) Trims at 0Hz. Spot freq Trims at the frequency set in the measurement mode (page52). <= 10kHz Frequency range is 0Hz ~ 10kHz. <= 100kHz Frequency range is 0Hz ~ 100kHz. All freq Frequency range is 0Hz ~ ≤1MHz. Frequency limit example: When using a special fixture set, trimming failed at 50kHz which is outside of the test component range (up to 5kHz). In this case, use F3 (<= 10kHz). 5. The trimming starts and ends automatically. 126 CALIBRATION ALL FREQUENCY SHORT CIRCUIT TRIM IN PROGRESS Trim pass The display goes back to the calibration mode menu. Trim fail The Fail message appears on the display. Press any other key to go back to the original menu. SHORT CIRCUIT TRIM FAILED Press any key to continue... 6. Switch the fixture setting from O/C to S/C (or from S/C to O/C) and repeat from step 1. 127 LCR-8000G Series User Manual FAQ Q1. The beep keeps sounding. A1. The beep sounds according to the pass/fail test result, which in this case is set to repetitive mode. Do one of the following.  Set the test mode to Single (manual trigger), so that the beep sounds only when the test is initiated manually. Press the Sing/Rep key to change the setting. For details, see page55.  Turn Off the beep entirely. Press the Menu key, F5 (System), move the cursor to Beep and select Off using the arrow keys. For details, see page61. Q2. Panel operation seems disabled. A2. Panel (local) operation is disabled in the Remote control mode (page107). Press the Local key to bring back the instrument to local operation mode (remote control is cancelled). Q3. I cannot see the display clearly. A3. Use the display contrast knob on the rear panel to adjust the brightness. For more information, contact your local dealer or GWInstek at www.gwinstek.com / marketing@goodwill.com.tw. 128 APPENDIX APPENDIX Fuse Replacement Step 1. Take off the power cord and remove the fuse socket using a minus driver. V / 230 3A 11 5 T AC 5 0V E 2 F US 50 / z 60 H 2. Replace the fuse in the holder. Rating T3A/250V 129 LCR-8000G Series User Manual |Z| Accuracy Chart Over the available frequency bands, the |Z| Accuracy Chart defines the measurement ranges available at specified accuracies. All curves assume that Slow measurement speed is used, that the analyzer has been trimmed at the frequency and level used for measurements, the factory calibration is valid and that the component under test is pure. 130 APPENDIX |Z| vs L, C Chart 131 LCR-8000G Series User Manual Accuracy Definition |Z|, |Y| L, C, X, B R, G D Q Ɵ Convention 132 High Impedance Ae[%]=±((A+0.0000001*Zx)*Kv*Kt) Low Impedance Ae[%]=±((A+0.1/Zx)*Kv*Kt) High Impedance when D < 0.1 Ae[%] = ± (( A + 0.0000001*Zx ) * Kv * Kt) High Impedance when D ≥ 0.1 Ae[%] = ± (((A + 0.0000001*Zx ) * Kv*Kt)* 1  D 2  ) Low Impedance when D < 0.1 Ae[%] = ± (( A + 0.1/Zx ) * Kv * Kt) Low Impedance when D ≥ 0.1 Ae[%] = ± ((( A + 0.1/Zx ) * Kv * Kt) * 1  D 2  ) High Impedance when Qx < 0.1 Ae[%] = ± (( A + 0.0000001*Zx ) * Kv * Kt) High Impedance when Qx ≥ 0.1 Ae[%] = ± (((A + 0.0000001*Zx ) * Kv*Kt)* 1  Q 2  ) Low Impedance when Qx < 0.1 Ae[%] = ± (( A + 0.1/Zx ) * Kv * Kt) Low Impedance when Qx ≥ 0.1 Ae[%] = ± ((( A + 0.1/Zx ) * Kv * Kt) * 1  Q 2  ) ± ( Ae/100) when D ≤ 0.1 ± ( (Ae/100) * (1+D2)) when D > 0.1 ± (((Qx2*De) / (1±Qx*De)) when (Qx*De)< 1 ± ((180*|Z|Ae[%]) / (π/100)) A Accuracy taken from the Accuracy chart Zx Measured value of unknown component Kv Test Voltage factor Level Kv Level Kv ≥ 1.250 1.2 ≥ 0.078 2 ≥ 0.625 1 ≥ 0.039 2.5 ≥ 0.313 1.2 ≥ 0.02 5 ≥ 0.156 1.5 ≥ 0.010 10 Kt Temperature factor Temperature Kt Temperature Kt 8-18°C 2 28-35°C 2 18-28°C 1 Qx Measured Q value De Relative D accuracy APPENDIX Specification Test Frequency Basic Accuracy R&G Accuracy Measurable Parameters Measurement Range LCR-8101G DC, AC:20Hz~1MHz LCR-8105G DC, AC:20Hz~5MHz LCR-8110G DC, AC:20Hz~10MHz R,Z,X,G,Y,B,L,C ±0.1%@1kHz When Qx‫ؤ‬0.1, multiply Ae by √1+Q2 for R, G accuracies. Rac, Rdc, Rs, Rp, Z, Ls, Lp, D, G, B, θ, Cp, Cs, Q, Y, X R,Z,X 0.1mΩ~100MΩ G, Y, B 10ns~1ks L 0.1nH~100kH C 0.01pF~1F D 0.00001~1000 Q 0.01~9999.9 Rdc 0.01mΩ~100MΩ -180°~+180° Ɵ Equivalent Parallel C+G, L+G, B+G, B+Q, B+D, B+R Circuit Series X+R, X+D, X+Q Series & Parallel C+R, C+D, C+Q, L+R, L+D, L+Q Polar Form Z + Phase Angle, Y + Phase Angle Input Impedance 100Ω Measurement DC Max:30ms; Fast:60ms; Speed Medium:120ms; Slow:900ms AC≤100Hz Max:600ms; Fast:650ms; Medium:1.2s; Slow:1.3s AC≤2kHz Max:120ms; Fast:180ms; Medium:470ms; Slow:600ms AC>2kHz Max:75ms; Fast:150ms; Medium:450ms; Slow:600ms AC=1MHz Max:120ms; Fast:150ms; (LCR-8101G) Medium:470ms; Slow:620ms AC≥1~5MHz Max:120ms; Fast:150ms; Medium:470ms; Slow:620ms (LCR-8105G) AC≥1~10MHz Max:120ms; Fast:150ms; Medium:470ms; Slow:620ms (LCR-8110G) 133 LCR-8000G Series User Manual Drive Signal Level LCR-8101G DC:0.01V~2V AC: 20Hz~1MHz: 0.01V~2Vrms LCR-8105G DC:0.01V~2V AC 20Hz~≤3MHz:0.01V~2Vrms AC >3MHz~5MHz:0.01V~1Vrms LCR-8110G DC:0.01V~2V AC 20Hz~≤3MHz:0.01V~2Vrms AC >3MHz~10MHz:0.01V~1Vrms Drive Signal Short LCR-8101G DC:100uA~20mA Circuit Current AC 20Hz~1MHz:100uA~20mA rms LCR-8105G DC:100uA~20mA AC:20Hz~‫أ‬3MHz:100uA~20mArms AC>3MHz~5MHz:100uA~10mA rms LCR-8110G DC:100uA~20mA AC:20Hz~‫أ‬3MHz:100uA~20mArms AC>3MHz~10MHz:100uA~10mA rms When the drive signal level is <1V: 1mV Drive Signal When the drive signal level is ≥1V: 10mV Resolution Drive Signal LCR-8101G DC:± 2% ± 5mV Open Circuit AC20Hz~1MHz:± 2% ± 5mV Accuracy LCR-8105G DC: ± 2% ± 5mV AC:20Hz~≤1MHz:± 2% ± 5mV AC:>1MHz~5MHz:± 5% ± 10mV LCR-8110G DC: ± 2% ± 5mV AC:20Hz~≤1MHz:± 2% ± 5mV AC:>1MHz~10MHz:± 5%±10mV AC Drive Signal 5 Digits, Frequency ±0.005% Accuracy LCD Display 320×240 Dot Matrix Interface RS-232, GPIB GPIB Address 0~30 inclusive Dimensions 330 (W) × 170 (H) × 340 (D), Unit: mm Weight Approx. 5kg Power Source 115V AC ±10% or 230V AC ±10% (Selectable) Multi Step 30 Steps 134 APPENDIX Operating Environment Storage Environment Relative humidity Altitude Temperature Pollution Degree Location Relative humidity Temperature <80% <2000 meters 0°C~40°C 2 Indoor <80% -40°C~70°C Fixture Specifications Type Frequency Max voltage Size range (SMD/chip) Type Frequency Max voltage LCR-09 SMD/chip test fixture 0603~1812 LCR-06A Kelvin clip test leads (4 Wire) LCR-12 Kelvin clip test leads (4 Wire)+ ground clip DC~10MHz +/- 35 V N/A LCR-13 SMD/chip test fixture 0201~0805 LCR-05 LCR-07 Test fixture 2 wire test for axial and leads + vertical lead ground components DC~1MHz +/- 35 V LCR-08 SMD/clip tweezers 135 LCR-8000G Series User Manual Declaration of Conformity We GOOD WILL INSTRUMENT CO., LTD. (1) No. 7-1, Jhongsing Rd., Tucheng City, Taipei County, Taiwan (2) No. 69, Lu San Road, Suzhou City (Xin Qu), Jiangsu Sheng, China declare, that the below mentioned product Type of Product: High Precision LCR Meter Model Number: LCR-8101G; LCR-8105G; LCR-8110G are herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Law of Member States relating to Electromagnetic Compatibility (2004/108/EC) and Low Voltage Directive (2006/95/EC). For the evaluation regarding the Electromagnetic Compatibility and Low Voltage Directive, the following standards were applied: ◎ EMC Electrical equipment for measurement, control and laboratory use–– EMC requirements (2004/108/EC) Harmonized Standard EN 55024:1998+A1:2001+A2:2003 Conducted & Radiated Emission Electrostatic Discharge EN 55022 : 2006 Class B IEC 61000-4-2: 2001 Current Harmonics Radiated Immunity EN 61000-3-2: 2006 IEC 61000-4-3: 2006 Electrical Fast Transients Voltage Fluctuations IEC 61000-4-4: 2004 EN 61000-3-3: 1995+A1: 2001 +A2: 2005 Surge Immunity ------------------------IEC 61000-4-5: 2005 Conducted Susceptibility ------------------------IEC 61000-4-6: 2006 Power Frequency Magnetic Field ------------------------IEC 61000-4-8: 2001 Voltage Dip/ Interruption ------------------------IEC 61000-4-11: 2004 ◎ Safety Low Voltage Equipment Directive 2006/95/EC Safety Requirements 136 IEC/EN 61010-1: 2001 INDEX INDEX absolute mode ........................ 66 accuracy specification ......................... 133 admittance accuracy definition .............. 132 overview ................................. 44 angle overview ....................... 46 auto measurement range....... 51 average setting.................. 62, 73 basic measurement................. 36 configuration .......................... 50 measurement combination... 37 run ........................................... 55 show/hide circuit model...... 49 show/hide scale .................... 49 tutorial .................................... 26 beep setting ............................. 61 faq .......................................... 128 in repetitive mode ................. 57 calibration ............................. 123 command set ........................ 117 capacitance accuracy definition .............. 132 measurement tip .................... 34 overview ................................. 41 series/parallel model ............ 38 caution symbol ......................... 6 circuit model overview.......... 38 cleaning the instrument........... 8 command set, list ................. 112 command syntax .................. 111 conductance accuracy definition .............. 132 overview ................................. 40 delta mode .............................. 68 display faq ......................................... 128 overview ................................ 48 dissipation factor accuracy definition ............. 132 overview ................................ 45 drive signal specification ......................... 134 drive voltage/current, hide .. 57 EN61010 declaration of conformity .. 136 measurement category ........... 7 pollution degree ...................... 9 environment operation .................................. 8 storage ...................................... 9 equivalent circuit specification ......................... 133 equivalent circuits .................. 15 fixture calibration ............................ 125 how to connect ...................... 25 overview ................................ 24 specification ......................... 135 fixure specification ............... 135 frequency setting basic measurement ............... 52 graph mode............................ 91 pass/fail mult mode ............. 77 pass/fail single mode ........... 65 front panel overview .............. 17 fuse replacing............................... 129 safety instruction..................... 8 GPIB configuration............... 109 137 LCR-8000G Series User Manual graph mode ............................. 87 configuration ......................... 88 run ......................................... 103 tutorial .................................... 32 ground symbol.......................... 6 hide drive voltage/current ... 57 horizontal scale setting .......... 90 impedance accuracy chart ...................... 130 accuracy definition.............. 132 measurement tip ................... 34 overview................................. 44 inductance accuracy definition.............. 132 measurement tip ................... 34 overview................................. 42 series/parallel model............ 38 linear/logarithmic scale ........ 91 list of features .................... 13, 14 main menu overview ............. 47 marker operation, graph ..... 106 measurement basic measurement ............... 36 command set........................ 113 graph mode ............................ 87 item and combination ........... 14 theory of each item ............... 38 measurement range specification ......................... 133 measurement speed specification ......................... 133 measurement tips ................... 34 model comparison .................. 16 nominal value setting ............ 69 O/C trimming ...................... 123 pass/fail test............................ 58 multi step mode .................... 70 multiple step tutorial ............ 30 multi-step command set..... 115 single step mode.................... 60 single step tutorial................. 28 percentage mode .................... 67 power supply 138 frequency selection ................23 safety instruction .................... 7 socket overview .....................20 power up sequence ................. 22 program, multi step copy step .................................79 create new ...............................74 delete program .......................86 delete step ...............................79 edit ...........................................76 load ..........................................85 run ...........................................80 save ..........................................83 quality factor accuracy definition ...............132 overview .................................45 reactance accuracy definition ..............132 overview .................................43 remote control ....................... 107 calibration command ..........117 command set ........................112 command syntax..................111 faq ..........................................128 graph command ...................118 interface configuration ........108 measurement command .....113 multi-step command ...........115 system command .................112 repetitive mode basic measurement ................56 pass/fail single mode............64 resistance accuracy definition ..............132 overview .................................40 series/parallel model ............39 RS-232C configuration ......... 108 S/C trimming ........................ 123 service contance point .......... 128 single mode basic measurement ................55 pass/fail single mode............64 specification ........................... 133 INDEX speed setting graph mode .......................... 101 step size setting, graph mode ............................................ 102 susceptance accuracy definition .............. 132 overview ................................. 43 system command ................. 112 test frequency specification ......................... 133 tilt stand................................... 21 trigger delay setting ............... 78 UK power cord ....................... 10 unit keys overview ................. 18 vertical scale setting ............... 94 graph mode.......................... 105 voltage setting basic measurement ............... 54 graph mode............................ 90 pass/fail multi mode ............ 77 pass/fail single mode ........... 65 warning symbol ........................ 6 139
