飞利浦HTD5570/98家庭影院使用说明书

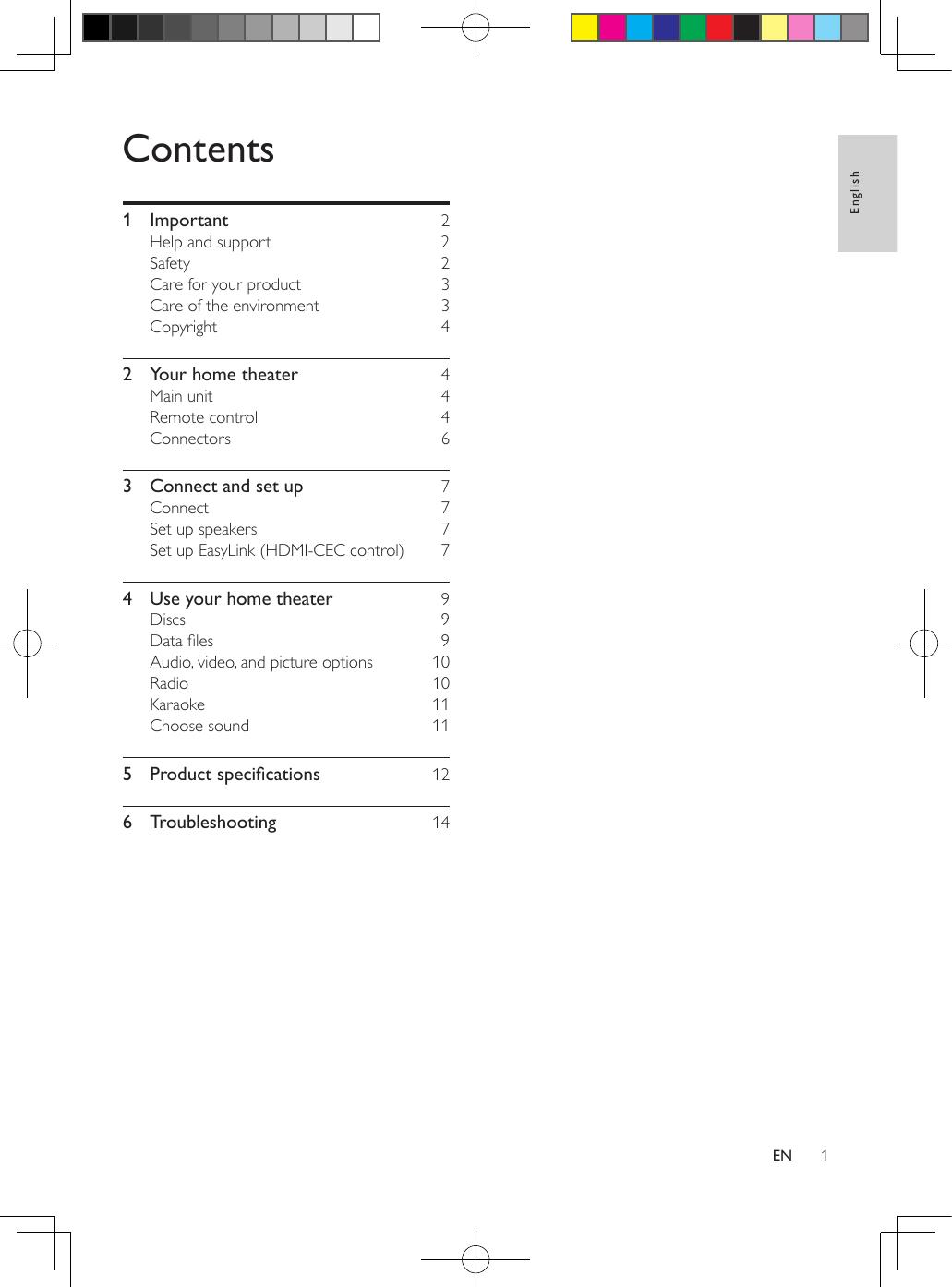

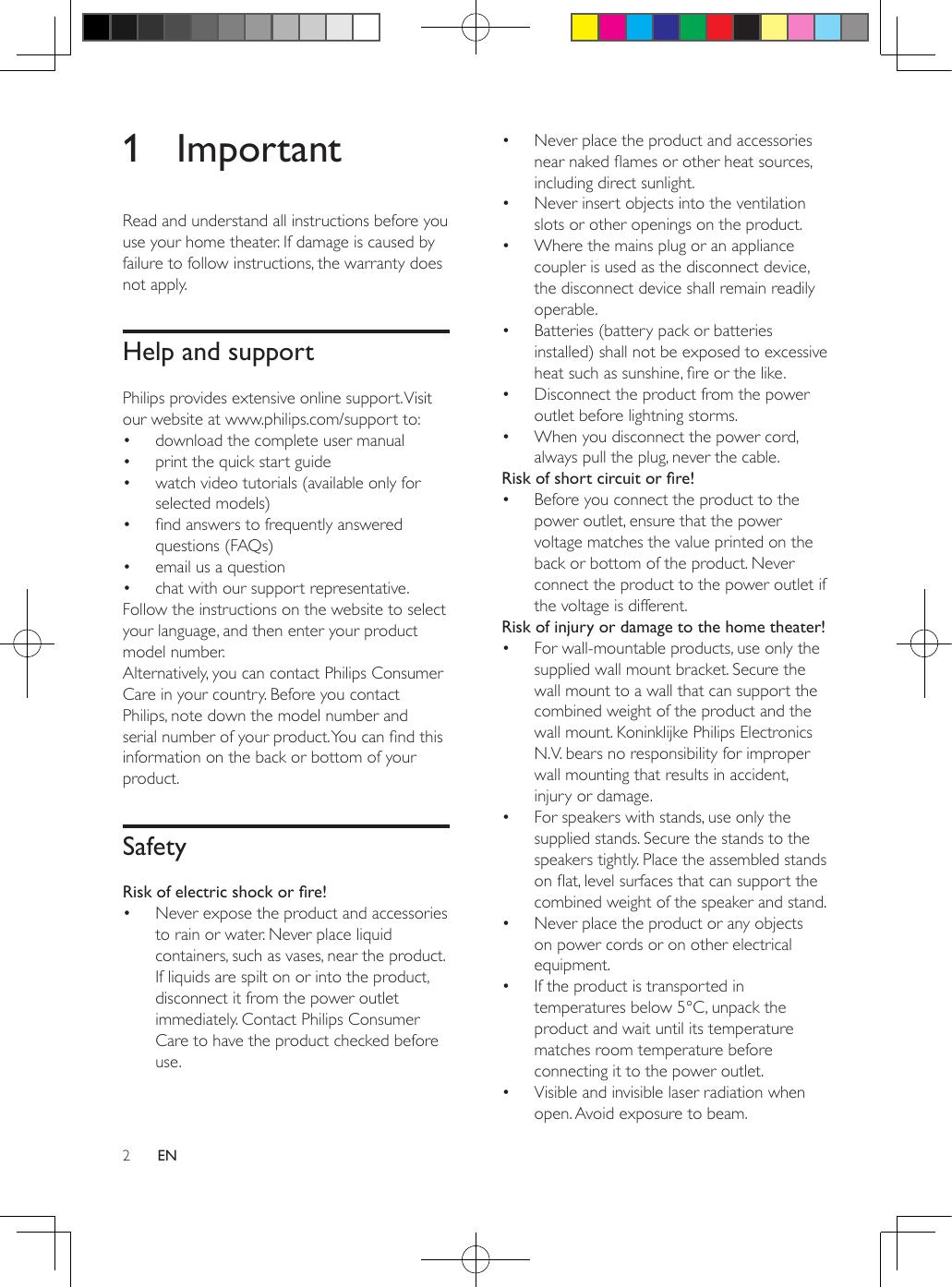

Always there to help you Register your product and get support at www.philips.com/welcome Question? Contact Philips User manual คู่มือผู้ใช้ Manual pengguna 使用手冊 HTD5510 HTD5540 HTD5570 1 Important   2 2 2 3 3 4 2 Your home theater   4 4 4 6 3 Connect and set up   7 7 7 7 Help and support   Safety   Care for your product   Care of the environment   Copyright   Main unit   Remote control   Connectors   Connect   Set up speakers   Set up EasyLink (HDMI-CEC control)   4 Use your home theater   9 9 9 10 10 11 11 5 Product specifications   12 6 Troubleshooting   14 Discs   Data files   Audio, video, and picture options   Radio   Karaoke   Choose sound   English Contents EN 1 1 Important Read and understand all instructions before you use your home theater. If damage is caused by failure to follow instructions, the warranty does not apply. Help and support Philips provides extensive online support. Visit our website at www.philips.com/support to: • download the complete user manual • print the quick start guide • watch video tutorials (available only for selected models) • find answers to frequently answered questions (FAQs) • email us a question • chat with our support representative. Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Philips Consumer Care in your country. Before you contact Philips, note down the model number and serial number of your product. You can find this information on the back or bottom of your product. Safety Risk of electric shock or fire! • Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use. 2 EN • Never place the product and accessories near naked flames or other heat sources, including direct sunlight. • Never insert objects into the ventilation slots or other openings on the product. • Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. • Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. • Disconnect the product from the power outlet before lightning storms. • When you disconnect the power cord, always pull the plug, never the cable. Risk of short circuit or fire! • Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different. Risk of injury or damage to the home theater! • For wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage. • For speakers with stands, use only the supplied stands. Secure the stands to the speakers tightly. Place the assembled stands on flat, level surfaces that can support the combined weight of the speaker and stand. • Never place the product or any objects on power cords or on other electrical equipment. • If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet. • Visible and invisible laser radiation when open. Avoid exposure to beam. Do not touch the disc optical lens inside the disc compartment. • Parts of this product can be made of glass. Handle with care to avoid injury and damage. Risk of overheating! • Never install this product in a confined space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product. Risk of contamination! • Do not mix batteries (old and new or carbon and alkaine, etc.). • Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type. • Remove batteries if they are exhausted or if the remote control is not to be used for a long time. • Batteries contain chemical substances, they should be disposed of properly. Risk of swallowing batteries! • The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion. • If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. • When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery. • If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. English • This is CLASS II apparatus with double insulation, and no protective earth provided. Care for your product • • • • Do not insert any objects other than discs into the disc compartment. Do not insert warped or cracked discs into the disc compartment. Remove discs from the disc compartment if you are not using the product for an extended period of time. Use only microfiber cloth to clean the product. Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health. Your product contains batteries, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area. EN 3 Copyright This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. 2 Your home theater Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your home theater at www.philips.com/welcome. Main unit a Disc compartment b Display panel c (Open/Close) Open or close the disc compartment, or eject the disc. d (Play/Pause) Start, pause or resume play. e SOURCE Select an audio or video source for the home theater. f (Standby-On) Switch the home theater on or to standby. Remote control This section includes an overview of the remote control. 4 EN • • a q p b o c d n e c Navigation buttons • Navigate menus. • In video mode, press left or right to fast backward or fast forward; press up or down to slow forward or slow backward (for DVD video only). • In radio mode, press left or right to search a radio station; press up or down to fine tune a radio frequency. d OK Confirm an entry. e BACK Return to a previous menu screen. f +/Increase or decrease volume. g (Mute) Mute or restore volume. f m g h l h i j AUDIO SOURCE: Select an audio input source. RADIO: Switch to FM radio. USB: Switch to USB storage device. English • k / (Previous/Next) Skip to the previous or next track, chapter or file. • In radio mode, select a preset radio station. • i Numeric buttons Select an item to play. j SOUND Select a sound mode. a (Standby-On) • Switch the home theater on or to standby. • When EasyLink is enabled, press and hold for at least three seconds to switch all connected HDMI CEC compliant devices to standby. b Source buttons • DISC: Switch to disc source.Access or exit the disc menu when you play a disc. k SURR Select surround sound or stereo sound. l (Play/Pause) Start, pause or resume play. m (Stop) Stop play. n OPTIONS Access more play options while playing a disc or a USB storage device. o (Open/Close) EN 5 Open or close the disc compartment. p (Home) Access or exit the home menu. q AUDIO SYNC • Select an audio language or channel. • Press and hold to access audio delay setting, then press Navigation buttons (left/right) to delay the audio to match the video. Connectors Back connectors a AC MAINS Connect the supplied AC power cable. b SPEAKERS Connect to the supplied speakers and subwoofer. This section includes an overview of the connectors available on your home theater. c VIDEO OUT Connect to the composite video input on the TV. Front d AUDIO IN-AUX Connect to an analog audio output on the TV or an analog device. Front connectors e DIGITAL IN-OPTICAL Connect to an optical audio output on the TV or a digital device. f HDMI OUT (ARC) Connect to the HDMI input on the TV. a (USB) Audio, video or picture input from a USB storage device. b MIC Audio input from a microphone. c AUDIO IN Audio input from an MP3 player (3.5mm jack). 6 EN g FM ANTENNA Connect the supplied antenna for radio reception. Note •• For identification and supply ratings, see the type plate at the back or bottom of the product. •• Before you make or change any connections, make sure that all devices are disconnected from the power outlet. Set up EasyLink (HDMI-CEC control) English 3 Connect and set up This home theater supports Philips EasyLink, which uses the HDMI-CEC (Consumer Electronics Control) protocol. EasyLinkcompliant devices that are connected through HDMI can be controlled by a single remote control. Note Connect Complete the necessary connections of your home theater (such as speaker and TV connections). For information about the connections, see the quick start guide or download the complete user manual from www.philips.com/support. Set up speakers Set up the speakers manually to experience customized surround sound. Before you start Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater. 1 2 3 4 Press (Home). Select [Setup], and then press OK. Select [Audio] > [Speaker Setup]. Press the Navigation buttons and OK to select and change: • [Speakers Volume]: Set the volume level of each speaker. • [Speakers Delay]: Set the delay time for speakers which are placed closer to the seating position in order to obtain equal audio transmission from all the speakers. •• Depending on the manufacturer, HDMI-CEC is known by many names. For information on your device, see the user manual of the device. •• Philips does not guarantee 100% interoperability with all HDMI-CEC devices. Before you start • Connect your home theater to the HDMICEC compliant device through HDMI connection. • Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater. Enable EasyLink 1 2 3 4 5 Press (Home). Select [Setup], and then press OK. Select [Video], and then press OK. Select [HDMI Setup] > [EasyLink Setup] > [EasyLink] > [On]. On your TV and other connected devices, turn on HDMI-CEC control. For details, see the user manual of the TV or other devices. • On your TV, set the audio output to 'Amplifier' (instead of TV speakers). For details, see the TV user manual. EN 7 EasyLink controls With EasyLink, you can control your home theater, TV, and other connected HDMI-CEC compliant devices with a single remote control. • [One Touch Play] (One-touch play): If onetouch play is enabled, press (StandbyOn) on the remote control of your home theater to wake up the TV from standby. • [One Touch Standby] (One-touch standby): If one-touch standby is enabled, your home theater can switch to standby with the remote control of the TV or other HDMI-CEC devices. • [Sys Audio Control] (System audio control): If system audio control is enabled, the audio of the connected device is output through your home theater speakers automatically when you play the device. • [Audio Mapping] (Audio input mapping):If system audio control does not work, map the connected device to the correct audio input connector on your home theater. (see 'Set up the audio' on page 8) Note •• To change the EasyLink control settings, press (Home), select [Setup] > [Video] > [HDMI Setup] > [EasyLink Setup] > [EasyLink]. Set up the audio If you cannot hear the audio output of a connected device through your home theater speakers, do the following: • Check that you have enabled EasyLink on all the devices, (see 'Set up EasyLink (HDMI-CEC control)' on page 7) and • on your TV, set the audio output to "Amplifier" (instead of TV speakers). For details, see the TV user manual, and • setup the EasyLink audio control. 1 2 8 Press (Home). Select [Setup], and then press OK. EN 3 4 5 6 Select [Video], and then press OK. Select [HDMI Setup] > [EasyLink Setup] > [Sys Audio Control] > [On]. • To play the audio from the TV speakers, select [Off], and skip the following steps. Select [HDMI Setup] > [EasyLink Setup] > [Audio Mapping]. Follow the onscreen instructions to map the connected device to the audio inputs on your home theater. • If you connect your home theater to the TV through an HDMI ARC connection, make sure that the TV audio is mapped to the ARC input on your home theater. This section helps you use the home theater to play media from a wide range of sources. Before you start • Make the necessary connections described in the quick start guide or download the complete user manual from www.philips. com/support. • Switch the TV to the correct source for your home theater (for example, HDMI, AV IN). Your home theater can play DVDs, VCDs, and CDs. It can also play discs that you’ve made at home, such as CD-R discs of photos and music. 3 Insert a disc into the home theater. If the disc does not play automatically, press DISC or select [DISC] from the home menu. Press the play buttons to control play. Synchronize picture and sound If the audio and video are not synchronized, delay the audio to match the video. 1 2 While playing video, press and hold AUDIO SYNC. »» Audio sync menu is displayed. Press the Navigation buttons (left/right) to synchronize the audio with the video, and then press OK. Note •• To play DivX DRM protected files, connect your home theater to a TV through an HDMI cable. Subtitles Note •• Make sure that the subtitle file has the exact same name as the video file. For example, if the video file is named 'movie.avi', name the subtitle file as 'movie.srt' or 'movie.sub'. •• Your home theater supports the following file formats: .srt, .sub, .txt, .ssa, .ass, smi, and .sami. If the subtitles do not appear correctly, change the character set. 1 2 3 4 5 6 Press OPTIONS, and select a subtitle language under SUBTITLE option. For DivX videos, if the subtitles do not appear correctly, continue the following steps to change the character set. Press (Home). Select [Setup], and then press OK. Select [Preferences] > [DivX Subtitle]. Select a character set that supports the subtitle. VOD code for DivX Note •• Picture and sound can be synchronized through the setup menu, press > [Audio Sync]. Your home theater can play pictures, audio and video files contained in a disc or a USB storage device. Before you play a file, check that the file format is supported by your home theater (see 'File formats' on page 12). If your video has subtitles in multiple languages, select a subtitle language. Discs 1 2 Data files (Home), select [Setup] > [Audio] Before you purchase DivX videos and play them on your home theater, register the home theater on www.divx.com using the DivX VOD code. EN 9 English 4 Use your home theater 1 2 3 Press (Home). • Select [Setup], and then press OK. Select [General] > [DivX(R) VOD Code]. »» The DivX VOD registration code for your home theater is displayed. Audio, video, and picture options Picture options 1 2 Use advanced features when you play audio, video, or media files from a disc or a USB storage device. Audio options 1 While playing audio, press OPTIONS repeatedly to select a repeat mode. Video options 1 2 10 While viewing video, press OPTIONS. »» The video options menu is displayed. Depending on the video source, some options are not available. Press the Navigation buttons buttons and OK to select and change: • [Info]: Display the play information. • [PBC]: Enable or disable the content menu navigation of VCD and SVCD discs with Play Back Control feature. • [Aspect ratio]: Select a display ratio of picture that matches your TV screen. • [Repeat]: Select a repeat play mode. • [Zoom]: Zoom into a video scene or picture. Press the Navigation buttons (left/right) to select a zoom factor. • [Subtitle]: Select subtitle language for video. • [Angle]: Select video scenes recorded in different camera angels. • [Microphone]: Turn the microphone on or off. • [Karaoke setup]: Access the Karaoke setup menu. EN [Vocal]: Select a Karaoke audio mode, or turn off original vocals. 3 4 While viewing pictures, press OPTIONS. Press the Navigation buttons and OK to select and change: • [Color]: Turn on or off the color mode. • [Photo preview]: Display the thumbnail of photos. • [Repeat]: Select a repeat mode for slideshow. • [Zoom]: Zoom into a video scene or picture. Press the Navigation buttons (left/right) to select a zoom factor. Press / to go to previous or next preview page. Press the Navigation buttons and OK to select a picture. Radio Listen to FM radio on your home theater, and store up to 40 radio stations. Note •• AM and digital radio are not supported. •• If no stereo signal is detected, you are prompted to install the radio stations again. 1 2 Connect the FM antenna to the FM ANTENNA on your home theater. • For the best reception, place the antenna away from your TV or other sources of radiation. Press RADIO to switch to radio source. »» If you have already installed the radio stations, the last channel that you listened to is played. »» If you have not installed any radio stations, the message AUTO Note •• To prevent loud feedback or unexpected noise, turn the microphone volume to the minimum before you connect the microphone to your home theater. Use the remote control to listen or to change radio stations. Play buttons Button Action / or Alphanumeric buttons Navigation buttons Select a preset radio station. RADIO Left/Right: Search for a radio station. Up/Down: Fine tune a radio frequency. Press to stop the installation of radio stations. Press and hold to erase the preset radio station. Manual: 1) In radio mode, press RADIO. 2) When a radio frequency blinks, press OK to store the radio station. 3) Repeat step 1 and 2 to store other stations. Automatic: In radio mode, press and hold RADIO for three seconds to reinstall all the available radio station. Karaoke Play a Karaoke disc on your home theater and sing along with the music. What you need • A Karaoke microphone. • Karaoke discs. English 3 INSTALL...PRESS PLAY appears on the display panel. Press (Play) to install radio stations. Play karaoke music 1 2 3 While playing a karaoke disc, press (Home). »» The home menu is displayed. Select [Karaoke], and then press OK. »» The karaoke setup menu is displayed. Press the Navigation buttons (up/down) and OK to change the following settings: • [Microphone]: Turn the microphone on or off. • [Mic Volume]: Change the microphone volume. • [Echo Level]: Change the echo level. • [Karaoke Scoring]: Select a difficulty level to score your singing. After a song ends, a score is given. • [Karaoke Idol]: Have a Karaoke contest with your friends. Follow the on-screen instructions to start the contest. • [Key Shift]: Change the pitch to match your voice. • [Vocal]: Select a Karaoke audio mode, or turn off original vocals. Choose sound This section helps you choose the ideal sound for your video or music. Sound mode Select predefined sound modes to suit your video or music. 1 Press SOUND repeatedly to select a sound mode. EN 11 MOVIE: Enjoy a cinematic audio experience, specially enhanced for movies. MUSIC: Recreate the original recording environment of your music, in the studio or at a concert. ORIGINAL: Experience the original sound of your movies and music, without added sound effects. NEWS: Hear every word with optimized speech and clear vocals. GAMING: Enjoy thrilling arcade sounds, ideal for action-packed video games or loud parties. • • • • • Surround sound mode Experience an immersive audio experience with surround sound modes. 1 Press SURR repeatedly to select a surround mode. • MULTI-CH: Traditional 5.1 channel for a more relaxing cinematic experience. • STEREO: Two-channel stereo sound. Ideal for listening to music. 5 Product specifications Note •• Specifications and design are subject to change without notice. Region codes The type plate on the back or bottom of the home theater shows which regions it supports. Country Asia Pacific, Taiwan, Korea DVD Media formats • Note •• If the audio source is a 2.1 channel. multi-channel mode will output 5-channel stereo sound. DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture files, MP3 media, WMA media, DivX media, USB storage device File formats • • • Audio: .mp3, .wma Video: .avi, .divx, .mpg, .mpeg, Picture: .jpg, .jpeg Amplifier • • • • 12 EN Total output power: 1000W RMS (30% THD) Frequency response: 20 Hz-20 kHz / ±3 dB Signal-to-noise ratio: > 65 dB (CCIR) / (A-weighted) Input sensitivity: • AUX: 2 V AUDIO IN: 1 V • Dimensions (WxHxD): 360 x 58 x 325 mm Weight: 2.3 kg Video • • • Subwoofer Signal system: PAL / NTSC/Multi HDMI output: 480i/576i, 480p/576p, 720p, 1080i, 1080p Audio • • • S/PDIF Digital audio input: • Optical: TOSLINK Sampling frequency: • MP3: 32 kHz, 44.1 kHz, 48 kHz • WMA: 44.1 kHz, 48 kHz Constant bit rate: • MP3: 32 kbps - 320 kbps • WMA: 64 kbps - 192 kbps Radio • • • Tuning range: • Europe/Russia/China: FM 87.5-108 MHz (50 kHz) • Asia Pacific/Latin America: FM 87.5-108 MHz (50/100 kHz) Signal-to-noise ratio: FM 50 dB Frequency response: FM 200 Hz-12.5 kHz / ±6 dB USB • • • • Compatibility: Hi-Speed USB (2.0) Class support: USB Mass Storage Class (MSC) File system: FAT16, FAT32, NTFS USB port: 5V , 500mA Main unit • • • Power supply: • Europe/China/Russia/India: 220-240V~, 50 Hz • Latin America/Asia Pacific: 110-240V~, 50-60 Hz Power consumption: 140 W Standby power consumption: ≤ 0.5 W • • • • • • English • Output power: 166 W RMS (30% THD) Impedance: 4 ohm Speaker drivers: 203 mm (8") woofer Dimensions (WxHxD): 233 x 365 x 310 mm Weight: 4.82 kg Cable length: 3.3 m Speakers Center speaker: • Output power: 166 W RMS (30% THD) • Speaker impedance: 4 ohm • Speaker drivers: 1 x 78 mm (3") full range • Dimensions (WxHxD): 223 x 100 x 80 mm • Weight: 0.65 kg • Cable length: 2.25 m Front/Rear speaker: • Output power: 4 x 166 W RMS (30% THD) • Speaker impedance: 4 ohm • Speaker drivers: 1 x 78 mm (3") full range • Dimensions (WxHxD): • HTD5510: 90 x 185 x 82 mm (front/ rear) • HTD5540: 90 x 185 x 82 mm (front); 247 x 1090 x 242 mm (rear) • HTD5570: 247 x 1090 x 242 mm (front/rear) • Weight (front): • HTD5510: 0.53 kg/each • HTD5540: 0.53 kg/each • HTD5570: 2.66 kg/each • Weight (rear): • HTD5510: 0.56 kg/each • HTD5540/HTD5570: 2.72 kg/each • Cable length (front): 3.25 m • Cable length (rear): 10.25 m EN 13 Remote control batteries • 1 x AAA-R03-1.5 V Laser • • • • Type: Semiconductor laser GaAIAs (CD) Wave length: 650-662 nm (DVD), 785-795 nm (CD) Output power: 6 mW (DVD), 7 mW (VCD/CD) Beam divergence: 60 degrees. 6 Troubleshooting Warning •• Risk of electric shock. Never remove the casing of the product. To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www. philips.com/support. Main unit The buttons on the home theater do not work. • Disconnect the home theater from the power supply for a few minutes, then reconnect. Picture No picture. • Make sure that the TV is switched to the correct source for the home theater. No picture on a TV connected through HDMI. • Make sure that the HDMI cable is not faulty. If it is faulty, replace it with a new cable. • Wait for 10 seconds for auto recovery, or change the HDMI video setting. Disc does not play high-definition video. • Make sure that the disc contains highdefinition video. • Make sure that the TV supports highdefinition video. • Use an HDMI cable to connect to the TV. 14 EN No sound from home theater speakers. • Connect the audio cable from your home theater to your TV or other devices. However, you do not need a separate audio connection when the home theater and TV are connected through an HDMI ARC connection. • Set up the audio for the connected device (see 'Set up the audio' on page 8). • Reset your home theater to its factory settings, and then switch it off and switch on again. • On your home theater, press SOURCE repeatedly to select the correct audio input. Distorted sound or echo. • If you play audio from the TV through the home theater, make sure that the TV is muted. Audio and video are not synchronized. • 1) Press and hold AUDIO SYNC. 2) Press the Navigation buttons (left/right) within five seconds to synchronize the audio with the video. Play Cannot play a disc. • Clean the disc. • Make sure that the home theater supports the type of disc (see 'Media formats' on page 12). • Make sure that the home theater supports the region code of the disc. • If the disc is a DVD±RW or DVD±R disc, make sure that it is finalized. DivX subtitles do not display correctly. • Make sure that the subtitle file name is the same as the movie file name (see 'Subtitles' on page 9). • Select the correct character set (see 'Subtitles' on page 9). English Sound Cannot read the contents of a USB storage device. • Make sure that the format of the USB storage device is compatible with the home theater. • Make sure that the file system on the USB storage device is supported by the home theater. 'input invalid' or 'x' sign appears on the TV. • The operation is not possible. EasyLink does not work. • Make sure that the home theater is connected to a Philips brand EasyLink TV, and the EasyLink option is turned on (see 'Set up EasyLink (HDMI-CEC control)' on page 7). • For TVs from different manufacturers, the HDMI CEC could be called differently. Check theTV user manual on how to enable it. When you switch on the TV, the home theater automatically switches on. • This behavior is normal when you are using Philips EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink. Cannot play a DivX file. • Make sure that the DivX file is encoded according to the 'Home Theater Profile' with the DivX encoder. • Make sure that the DivX file is complete. EN 15 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DivX , DivX Ultra , DivX Certified and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. DivX Ultra Certified to play DivX video with advanced features and premium content. ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. CLASS 1 LASER PRODUCT 16 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. HTD5510/5540/5570_98_UM_V1.0
