基恩士 ES-M1型长距离放大器、分离型接近传感器 说明书

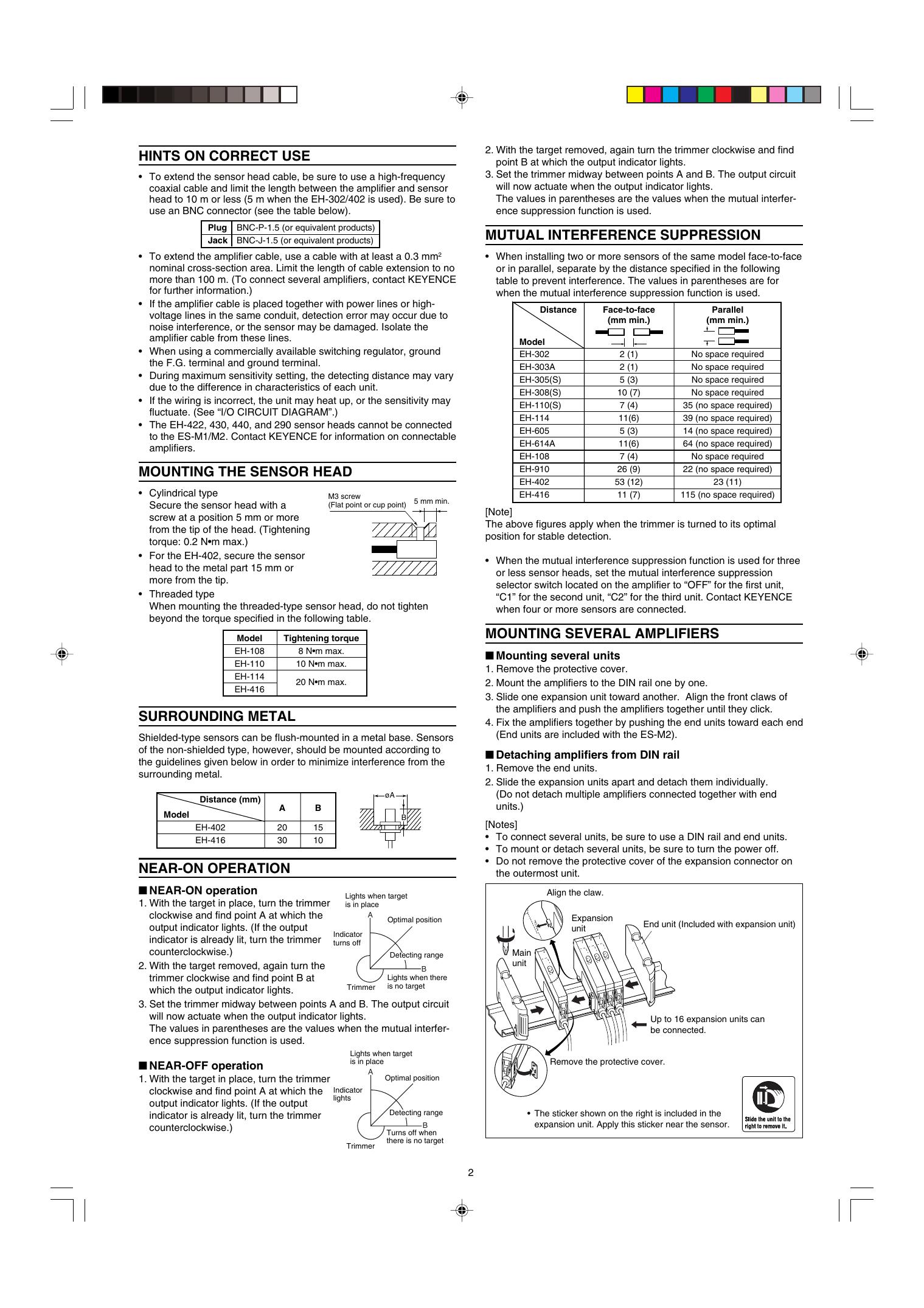

96M1093 FEATURES ■ One-line connection system See “MOUNTING SEVERAL AMPLIFIERS” on page 2. Separate-amplifier Proximity Sensor A wire-saving sensor system can be established by combining other one-line connection amplifiers such as the FS-V10 Series or LV Series. ES-M1(P)/M2(P) ■ Easy connection with the European terminal Instruction Manual The sensor head is connected to the amplifier through the European terminal, allowing easy and quick connection. See “SENSOR HEAD CONNECTION” on page 1. ■ Disconnection alarm indicator & output See “PART NAMES AND FUNCTIONS” on page 1. The alarm indicator and output turn on when the sensor head is disconnected, enabling quick discovery of abnormal condition. (The ES-M2 features the indicator only.) ■ Mutual interference suppression function See “MUTUAL INTERFERENCE SUPPRESSION” on page 2. Mutual interference among several sensors that are used in close proximity can be suppressed by a simple operation. ACCESSORIES Instruction Manual: 1 Metal screwdriver: 1 Mounting bracket: 1 (ES-M1 only) Read this manual before using the product in order to achieve maximum performance. Keep this manual in a safe place after reading it so that it can be used at any time. SENSOR HEAD CONNECTION 1. Modify the end of the sensor cable as illustrated on the right. Be sure to tightly twist the shield wire and core wire separately. WARNING • The ES-M1/M2 are intended for target detection. Do not use these products in a safety circuit for protecting the human body. • The ES-M1/M2 are not explosion-proof. Do not use these products in an environment where inflammable gas, liquid or powder is present. Sensor cable insertion port C2 C1 OFF OUT OUT ALM SENS Operating indicator (Red) Disconnection alarm indicator (Yellow) Sensitivity adjustment trimmer ALM SENS 1. Output timer selector switch Output delay: 10 ms N.C. Output timer OFF N.O. Output mode selector switch ES-M1 Expansion N.C. (NEAR-OFF) connector N.O. (NEAR-ON) 1. In N.O. operation mode: OFF-delay timer 10 ms In N.C. operation mode: ON-delay timer 10 ms 10ms OFF 10ms OFF N.C. N.O. ES-M2 ES-M1 100mA max Load 5 to 40 VDC (Disconnection alarm output) Blue Main circuit Orange 5 to 40 VDC Black 100mA max Load 5 to 40 VDC Mounting (Control output) ES-M1P 12 to 24 VDC Detaching Main circuit 100mA max Load 100mA max Orange Load (Disconnection alarm output) Blue Using the side holes of the supplied mounting bracket (ES-M1 only), fix the amplifier with screws. 12 to 24 VDC Overcurrent protection circuit Main circuit 4 Terminal block tightening screws ■ Side mounting ES-M2P Brown Overcurrent protection circuit Core wire 0V ■ PNP Black (Control output) 3 Hook the claw located at the amplifier cable side onto the DIN rail, and then hook the front side claw to the rail while pressing the amplifier forward. To detach the amplifier, unhook the front claw by lifting the amplifier front side while pressing it forward. 12 to 24 VDC 100mA max Load Overcurrent protection circuit Main circuit Overcurrent protection circuit Black (Control output) Shield wire ■ Mounting/Detaching the amplifier to/from a DIN rail or the mounting bracket ES-M2 Brown Terminal block tightening screws MOUNTING AMPLIFIER I/O CIRCUIT DIAGRAM ■ NPN 2 2. Turn the terminal block tightening screws counterclockwise to loosen them. 3. Insert the sensor cable straight into the insertion port of the amplifier. Make sure that the core wire and shield wire are inserted into the correct ports and that the cable does not twist. 4. Turn the terminal block tightening screws clockwise to tighten them. Be sure to limit the tightening torque to 0.15 N•m. 5. Turn ON the amplifier and check that the disconnection alarm indicator remains OFF. If the indicator is ON, go back to step 1 and repeat the procedure again. ES-M2 (Expansion unit) Mutual interference suppression selector switch 5 ±1 mm 14 ±1 mm * When the outer sheath is stripped, the shield wire appears around the core wire. Separate the core wire and shield wire before modifying the cable. Terminal block tightening screws C2 C1 OFF Shield wire Outer sheath Core wire PART NAMES AND FUNCTIONS ES-M1 (Main unit) End unit: 2 (ES-M2 only) Cautions sticker: 1 (ES-M2 only) M3 screw 100mA max Black Load OV (Control output) OV 1 2. With the target removed, again turn the trimmer clockwise and find point B at which the output indicator lights. 3. Set the trimmer midway between points A and B. The output circuit will now actuate when the output indicator lights. The values in parentheses are the values when the mutual interference suppression function is used. HINTS ON CORRECT USE • To extend the sensor head cable, be sure to use a high-frequency coaxial cable and limit the length between the amplifier and sensor head to 10 m or less (5 m when the EH-302/402 is used). Be sure to use an BNC connector (see the table below). Plug Jack BNC-P-1.5 (or equivalent products) BNC-J-1.5 (or equivalent products) MUTUAL INTERFERENCE SUPPRESSION 2 • To extend the amplifier cable, use a cable with at least a 0.3 mm nominal cross-section area. Limit the length of cable extension to no more than 100 m. (To connect several amplifiers, contact KEYENCE for further information.) • If the amplifier cable is placed together with power lines or highvoltage lines in the same conduit, detection error may occur due to noise interference, or the sensor may be damaged. Isolate the amplifier cable from these lines. • When using a commercially available switching regulator, ground the F.G. terminal and ground terminal. • During maximum sensitivity setting, the detecting distance may vary due to the difference in characteristics of each unit. • If the wiring is incorrect, the unit may heat up, or the sensitivity may fluctuate. (See “I/O CIRCUIT DIAGRAM”.) • The EH-422, 430, 440, and 290 sensor heads cannot be connected to the ES-M1/M2. Contact KEYENCE for information on connectable amplifiers. • When installing two or more sensors of the same model face-to-face or in parallel, separate by the distance specified in the following table to prevent interference. The values in parentheses are for when the mutual interference suppression function is used. Distance • Cylindrical type M3 screw (Flat point or cup point) 5 mm min. Secure the sensor head with a screw at a position 5 mm or more from the tip of the head. (Tightening torque: 0.2 N•m max.) • For the EH-402, secure the sensor head to the metal part 15 mm or more from the tip. • Threaded type When mounting the threaded-type sensor head, do not tighten beyond the torque specified in the following table. MOUNTING SEVERAL AMPLIFIERS ■ Mounting several units 1. Remove the protective cover. 2. Mount the amplifiers to the DIN rail one by one. 3. Slide one expansion unit toward another. Align the front claws of the amplifiers and push the amplifiers together until they click. 4. Fix the amplifiers together by pushing the end units toward each end (End units are included with the ES-M2). SURROUNDING METAL Shielded-type sensors can be flush-mounted in a metal base. Sensors of the non-shielded type, however, should be mounted according to the guidelines given below in order to minimize interference from the surrounding metal. Model ■ Detaching amplifiers from DIN rail 1. Remove the end units. 2. Slide the expansion units apart and detach them individually. (Do not detach multiple amplifiers connected together with end units.) øA B 20 30 15 10 B EH-402 EH-416 [Notes] • To connect several units, be sure to use a DIN rail and end units. • To mount or detach several units, be sure to turn the power off. • Do not remove the protective cover of the expansion connector on the outermost unit. NEAR-ON OPERATION ■ NEAR-ON operation Align the claw. Lights when target 1. With the target in place, turn the trimmer is in place A clockwise and find point A at which the Optimal position output indicator lights. (If the output Indicator indicator is already lit, turn the trimmer turns off counterclockwise.) Detecting range 2. With the target removed, again turn the B Lights when there trimmer clockwise and find point B at is no target Trimmer which the output indicator lights. 3. Set the trimmer midway between points A and B. The output circuit will now actuate when the output indicator lights. The values in parentheses are the values when the mutual interference suppression function is used. ■ NEAR-OFF operation 1. With the target in place, turn the trimmer clockwise and find point A at which the output indicator lights. (If the output indicator is already lit, turn the trimmer counterclockwise.) No space required No space required No space required No space required 35 (no space required) 39 (no space required) 14 (no space required) 64 (no space required) No space required 22 (no space required) 23 (11) 115 (no space required) • When the mutual interference suppression function is used for three or less sensor heads, set the mutual interference suppression selector switch located on the amplifier to “OFF” for the first unit, “C1” for the second unit, “C2” for the third unit. Contact KEYENCE when four or more sensors are connected. 20 N•m max. A 2 (1) 2 (1) 5 (3) 10 (7) 7 (4) 11(6) 5 (3) 11(6) 7 (4) 26 (9) 53 (12) 11 (7) [Note] The above figures apply when the trimmer is turned to its optimal position for stable detection. Tightening torque 8 N•m max. 10 N•m max. Distance (mm) Parallel (mm min.) Model EH-302 EH-303A EH-305(S) EH-308(S) EH-110(S) EH-114 EH-605 EH-614A EH-108 EH-910 EH-402 EH-416 MOUNTING THE SENSOR HEAD Model EH-108 EH-110 EH-114 EH-416 Face-to-face (mm min.) Expansion unit End unit (Included with expansion unit) Main unit Up to 16 expansion units can be connected. Lights when target is in place A Optimal position Remove the protective cover. Indicator lights Detecting range Trimmer • The sticker shown on the right is included in the expansion unit. Apply this sticker near the sensor. B Turns off when there is no target 2 DIMENSIONS ■ Sensor head EH-308 12 EH-108 EH-114 18 EH-302 18 3000 3000 3000 25 ø3.2 coaxial cable ø8 3000 M8 x P1 Across-flats: 12, t=3 ø3.2 coaxial cable ø2.8 ø2 coaxial cable M14 x P1 EH-308S 18 1000 2000 8 18 ø3.2 ø7 ø5.8 coaxial cable coaxial cable *Minimum bending radius: 21.5 ø8 ø2.6 coaxial cable ø3.8 4 18 18 EH-402 18 EH-110 EH-305 20 10 3000 1 ø5.4 M10 x P1 ø3.2 coaxial cable Across-flats: 14, t=3 18 1000 2000 ø5.4 14 18 18 1000 2000 4 3 10 30 6 2.7 1.6 2 1.3 DIN-rail mounting (Maximum when the cover is opened) 87.4 135° max. 3 36.5 1.3 8 (33) 28.5 22.8 25.6 30.8 3.8 (12.5) 20.7 ES-M2 35.4 66 25.4 2 x ø3.4, Spot facing: ø6, 2.7 (d) 9 ø2.6 single-core x 0.34 mm2 Cable length: 2 m 15 31 9 End unit (accessory for ES-M1) DIN-rail mounting (Maximum when the cover is opened) 87.4 3 6 1.3 DIN-rail mounting (338)28.5 (22.6) 20.8 (12.5) 20.7 35.4 66 9.2 11 min. 35.4 53.8 SPECIFICATIONS ■ Sensor head Standard Type Shape Model Stable detecting range Maximum detecting distance 1. Shielded EH-302 0 to 0.6 mm 1.2 mm Cylindrical EH-303A EH-305 0 to 0.8 0 to 1 mm mm 2 mm Highly oil- Chemicalresistant resistant Type 3 mm Threaded Threaded EH-110 EH-114 0 to 2 mm 5 mm Stainless-spiral tube Shielded Shape EH-308 Cylindrical EH-605 Thin EH-614A 0 to 5 mm 0 to 1 mm 0 to 5 mm 8 mm 3 mm 8 mm Standard Non-shielded Cylindrical Threaded Cylindrical and Threaded EH-110S EH-402 EH-416 Model EH-108 2. EH-910 EH305S EH-308S Stable detecting 0 to 1.5 0 to 2 mm 0 to 1 mm 0 to 2 mm range mm Maximum detecting 2 . 5 m m 4 . 5 m m 3 m m 5 mm distance 1. 16 12 min. 2 x (4.4 x 3.4), Spot facing: ø7, 4 (d) 12 min. 3000 M16 x P1 Across-flats: 21, t=4 ø3.2 coaxial cable WARRANTIES AND DISCLAMERS 3 9 14 6 4.8 ø3.9, 4-core x Brown/Blue: 0.34 mm 2 Black/Orange: 0.18 mm Cable length: 2 m ES-M1 6 2 x ø3.3 mounting hole 10 ø14.5 Detecting surface ø3.2 ø5.8 spiral tube ø7 coaxial cable Across-flats: *Minimum bending radius: 21.5 14, t=3 ø2 coaxial cable EH-416 ø3.2 coaxial cable 7 12 ø3.2 ø4.1 spiral tube ø5.4 coaxial cable *Minimum bending radius: 15 M10 x P1 ø2.8 3000 2.5 EH-110S EH-305S 2 EH-614A ø3.2 coaxial cable 3000 10 3.5 3000 3000 ø2.5 coaxial cable 2 2 x ø2.3 mounting hole 6 6 (4) 26 ø3 coaxial cable ø10 ø2 coaxial cable 6 4 3000 EH-910 3000 EH-605 12 EH-303A Across-flats: 19, t=3.5 (1) KEYENCE warrants the Products to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment. If any models or samples were shown to Buyer, such models or samples were used merely to illustrate the general type and quality of the Products and not to represent that the Products would necessarily conform to said models or samples. Any Products found to be defective must be shipped to KEYENCE with all shipping costs paid by Buyer or offered to KEYENCE for inspection and examination. Upon examination by KEYENCE, KEYENCE, at its sole option, will refund the purchase price of, or repair or replace at no charge any Products found to be defective. This warranty does not apply to any defects resulting from any action of Buyer, including but not limited to improper installation, improper interfacing, improper repair, unauthorized modification, misapplication and mishandling, such as exposure to excessive current, heat, coldness, moisture, vibration or outdoors air. Components which wear are not warranted. (2) KEYENCE is pleased to offer suggestions on the use of its various Products. They are only suggestions, and it is Buyer's responsibility to ascertain the fitness of the Products for Buyer's intended use. KEYENCE will not be responsible for any damages that may result from the use of the Products. (3) The Products and any samples ("Products/Samples") supplied to Buyer are not to be used internally in humans, for human transportation, as safety devices or fail-safe systems, unless their written specifications state otherwise. Should any Products/Samples be used in such a manner or misused in any way, KEYENCE assumes no responsibility, and additionally Buyer will indemnify KEYENCE and hold KEYENCE harmless from any liability or damage whatsoever arising out of any misuse of the Products/Samples. (4) OTHER THAN AS STATED HEREIN, THE PRODUCTS/SAMPLES ARE PROVIDED WITH NO OTHER WARRANTIES WHATSOEVER. ALL EXPRESS, IMPLIED, AND STATUTORY WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF PROPRIETARY RIGHTS, ARE EXPRESSLY DISCLAIMED. IN NO EVENT SHALL KEYENCE AND ITS A FFILIATED ENTITIES BE LIABLE TO ANY PERSON OR ENTITY FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, ANY DAMAGES RESULTING FROM LOSS OF USE, BUSINESS INTERRUPTION, LOSS OF INFORMATION, LOSS OR INACCURACY OF DATA, LOSS OF PROFITS, LOSS OF SAVINGS, THE COST OF PROCUREMENT OF SUBSTITUTED GOODS, SERVICES OR TECHNOLOGIES, OR FOR ANY MATTER ARISING OUT OF OR IN CONNECTION WITH THE USE OR INABILITY TO USE THE PRODUCTS, EVEN IF KEYENCE OR ONE OF ITS AFFILIATED ENTITIES WAS ADVISED OF A POSSIBLE THIRD PARTY'S CLAIM FOR DAMAGES OR ANY OTHER CLAIM AGAINST BUYER. In some jurisdictions, some of the foregoing warranty disclaimers or damage limitations may not apply. E 1110-2 0 to 3 mm 0 to 6 mm 7 mm 13 mm 1. Shows the maximum detecting distance obtained at constant temperature of +23°C (73.4°F) while accuracy is ignored. 2. Although the EH-109 is designed to be highly oil-resistant, do not immerse it in oil. Contact KEYENCE for detailed specifications of the sensor heads. ■ Amplifier NPN output PNP output Sensitivity adjustment Response time Operation mode Indicators Timer function Model Output Temperature fluctuation Control output Disconnection alarm output 1. Protection circuit Power supply voltage Current consumption Ambient temperature Relative humidity Weight (including 2 m cable) ES-M1 ES-M1P ES-M2 ES-M2P 25-turn trimmer 1 ms max. N.O./N.C. switch selectable Output indicator: Red, Disconnection alarm indicator: Yellow Delay: 10 ms/Timer OFF ±8% or less of the detecting distance at +23°C (73.4°F) within the temperature range of 0 to +50°C (32 to 122°F) NPN or PNP open-collector 100 mA max. (NPN: 40 V max, PNP: 26.4 V max), Residual voltage: 1 V max NPN or PNP open-collector 100 mA max — (40 V max.), Residual voltage: 1 V max. Reverse polarity protection, over-current protection, surge absorber 12 to 24 VDC, Ripple (P-P) 10% max. 25 mA max. 0 to +50°C (32 to 122°F), No freezing 2. 35 to 85%, No condensation Approx. 65 g Approx. 35 g 1. The ES-M2 does not include the disconnection alarm output. It allows monitoring with the disconnection alarm indicator only. 2. When several units are connected, the ambient temperature requirement varies depending on the total number of units connected as shown below. To connect several units, be sure to mount them to a metallic DIN rail. Make sure that the output current does not exceed 20 mA. When 1 to 10 units are connected: 0 to +50°C (32 to 122°F) When 11 to 16 units are connected: 0 to +45°C (32 to 113°F) 3 Copyright (c) 2003 KEYENCE CORPORATION. All rights reserved. 1093E 1031-4 96M1093 Printed in Japan
