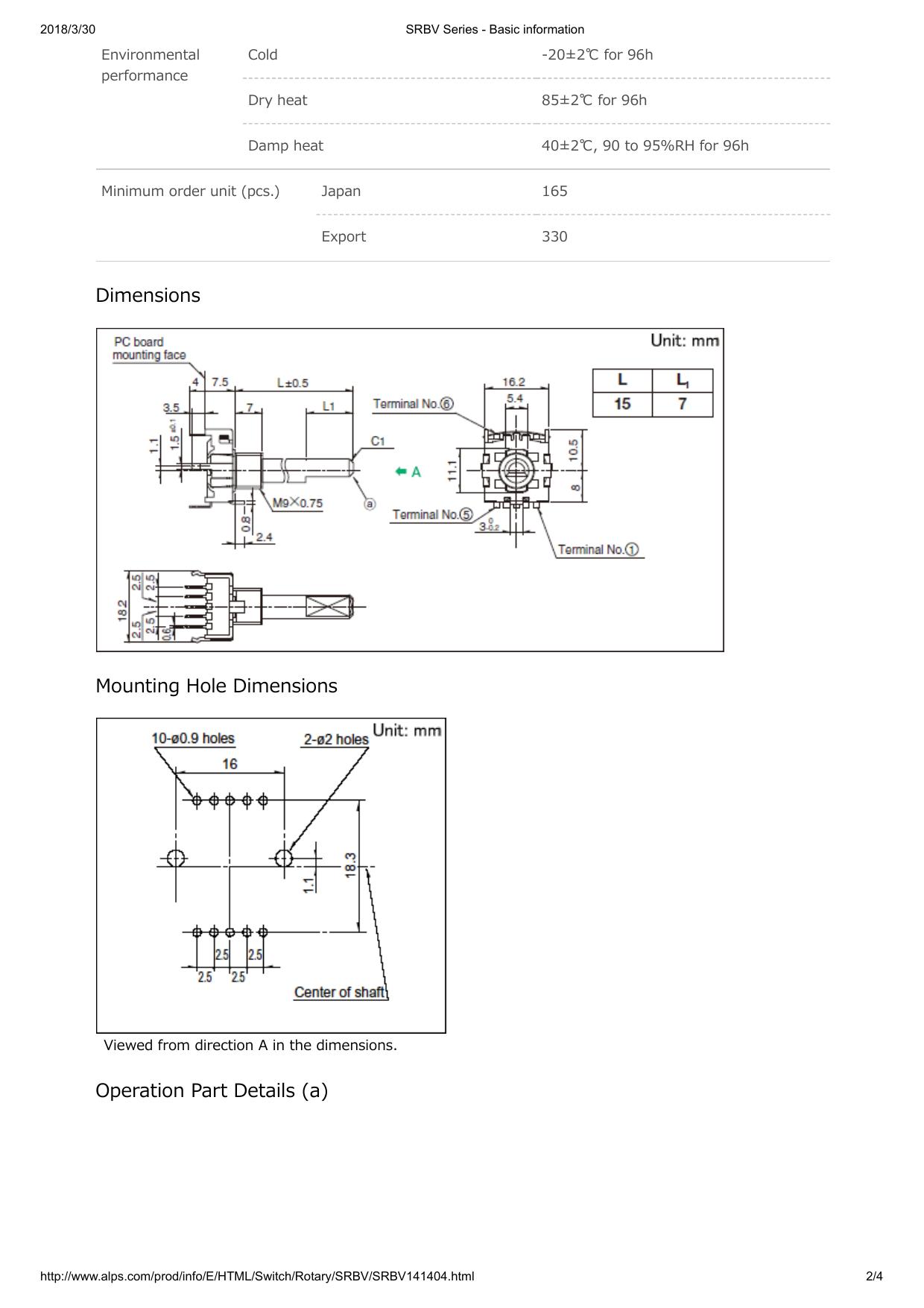

2018/3/30 SRBV Series - Basic information 8-positions Low-profile Vertical Type SRBV Series Poles 1 Positions 4 Changeover angle 30±3° Changeover timing Non shorting Rotational torque 30±15mN·m Actuator configuration Flat Actuator length L: 15mm Operating temperature range -10℃ to +85℃ Rating (max.)/(min.) (Resistive load) 0.3A 16V DC/50µA 3V DC Electrical performance Contact resistance (Initial performance/After lifetime) 50mΩ max./150mΩ max. Insulation resistance 100MΩ min. 100V DC Voltage proof 100V AC for 1 minute Terminal strength 5N for 1 minute Mechanical performance Actuator strength Wobble of actuator (load at the tip of shaft: 1N) Rotational direction 0.6N·m Push direction 100N Measuring position from mounting surface 10mm Shaft wobble (max. 0.2mm max. value) Applicable mounting 15mm dimension Durability Operating life without load 10,000 cycles 100mΩ max. Operating life with load (at max. rated 10,000 cycles 150mΩ max. load) http://www.alps.com/prod/info/E/HTML/Switch/Rotary/SRBV/SRBV141404.html 1/4 2018/3/30 SRBV Series - Basic information Environmental performance Cold -20±2℃ for 96h Dry heat 85±2℃ for 96h Damp heat 40±2℃, 90 to 95%RH for 96h Minimum order unit (pcs.) Japan 165 Export 330 Dimensions Mounting Hole Dimensions Viewed from direction A in the dimensions. Operation Part Details (a) http://www.alps.com/prod/info/E/HTML/Switch/Rotary/SRBV/SRBV141404.html 2/4 2018/3/30 SRBV Series - Basic information Circuit Diagram and Dummy Terminals Packing Specifications Bulk Number of packages 1 case / Japan 165 (pcs.) 1 case / export 330 packing Export package measurements (mm) 400×270×185 Attached Parts http://www.alps.com/prod/info/E/HTML/Switch/Rotary/SRBV/SRBV141404.html 3/4 2018/3/30 SRBV Series - Basic information The following parts are included with the product. Soldering Conditions Reference for Dip Soldering Items Dip soldering Preheating temperature - Preheating time - Soldering temperature 260±5℃ Duration of immersion 10±1s Reference for Hand Soldering Soldering temperature 350±10℃ Soldering time 3+1/0s Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. 4. This products can be used in vehicles. Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. http://www.alps.com/prod/info/E/HTML/Switch/Rotary/SRBV/SRBV141404.html 4/4
