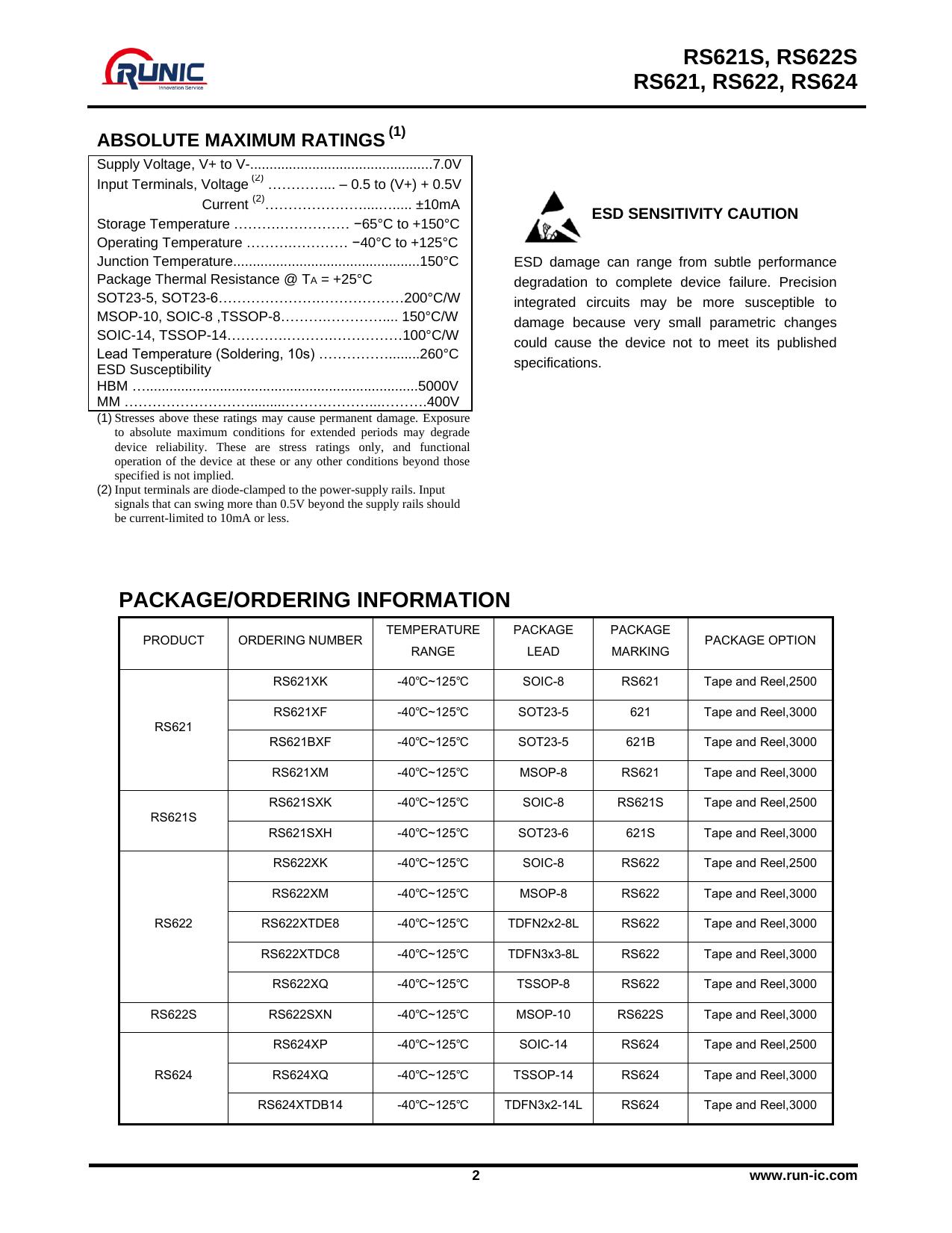

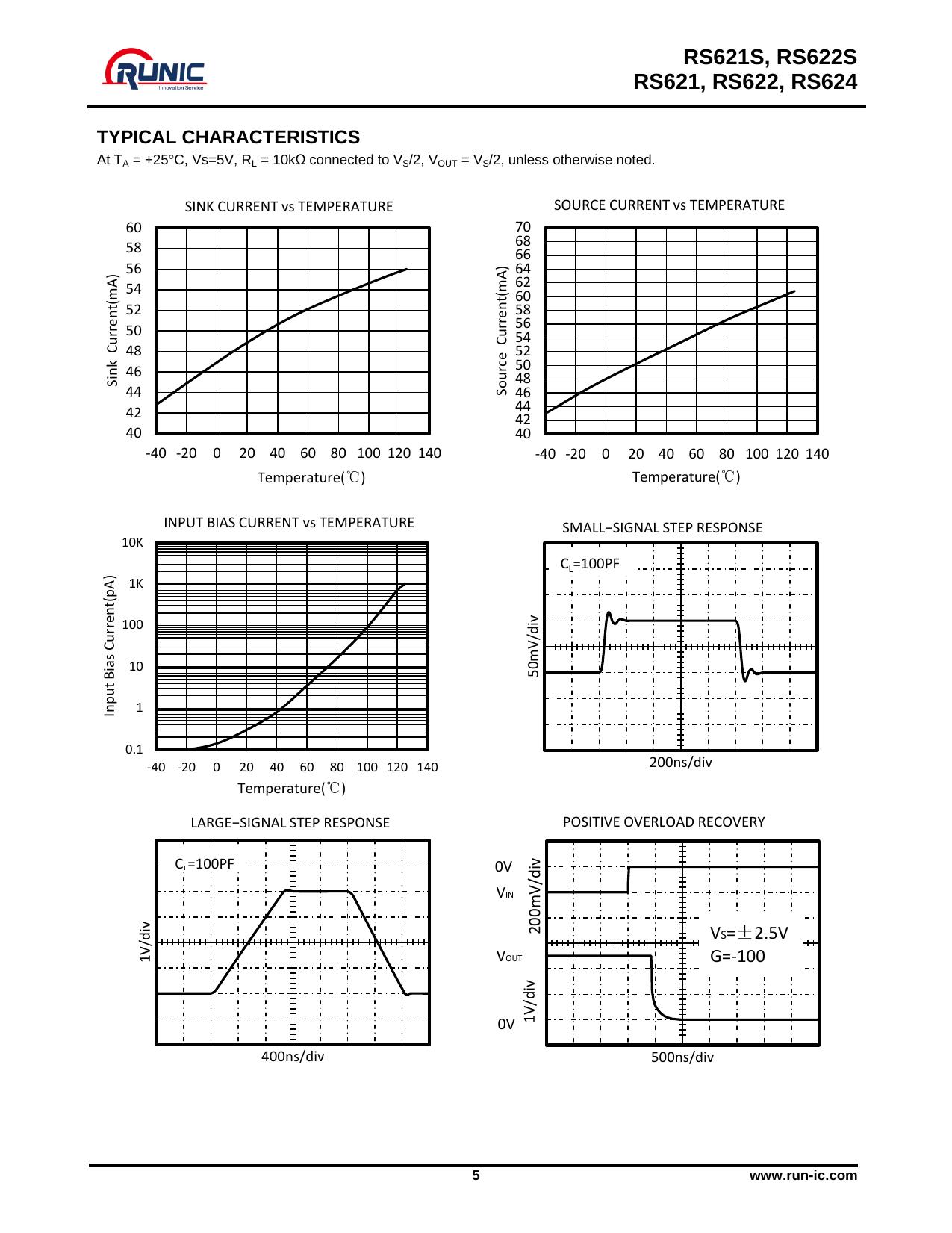

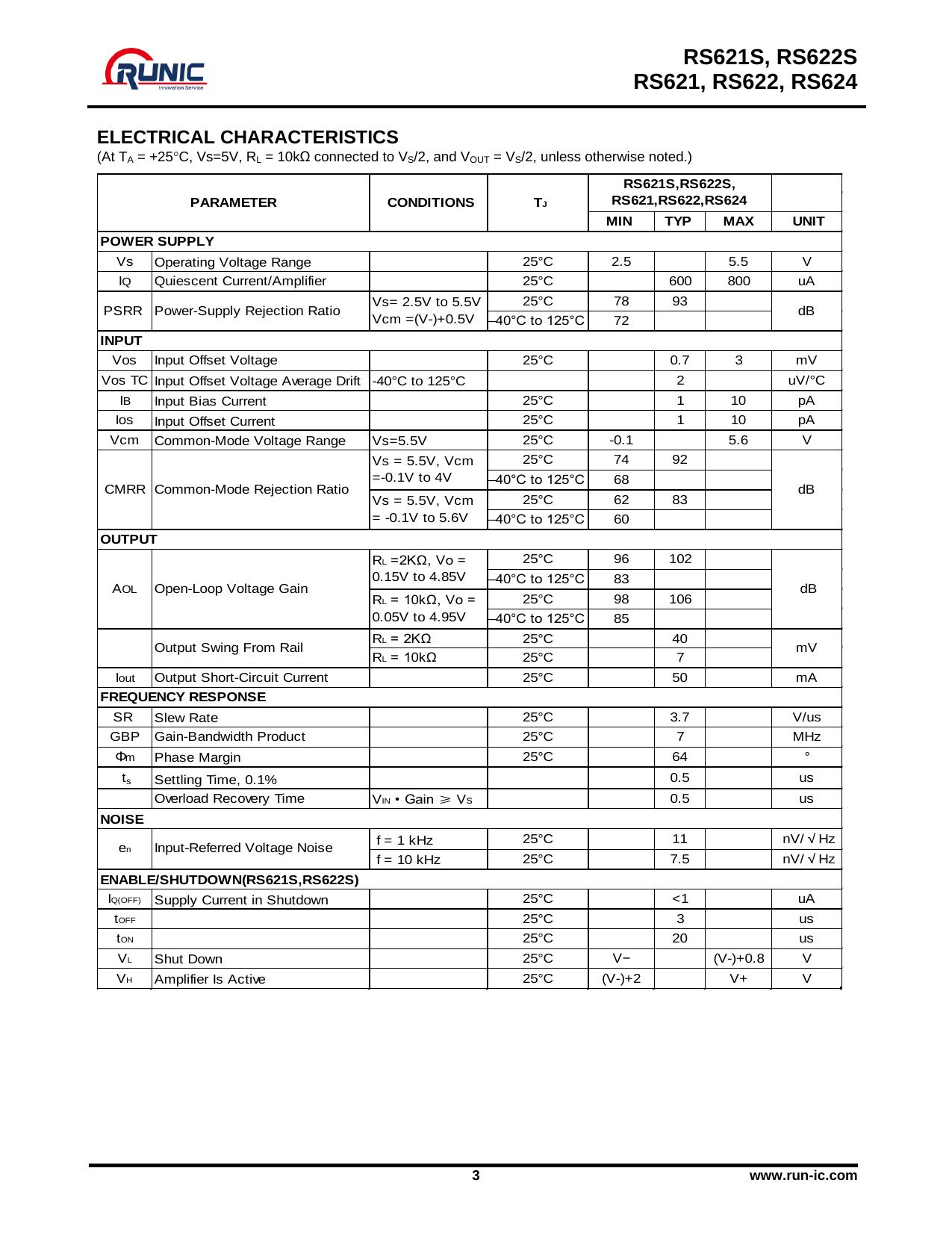

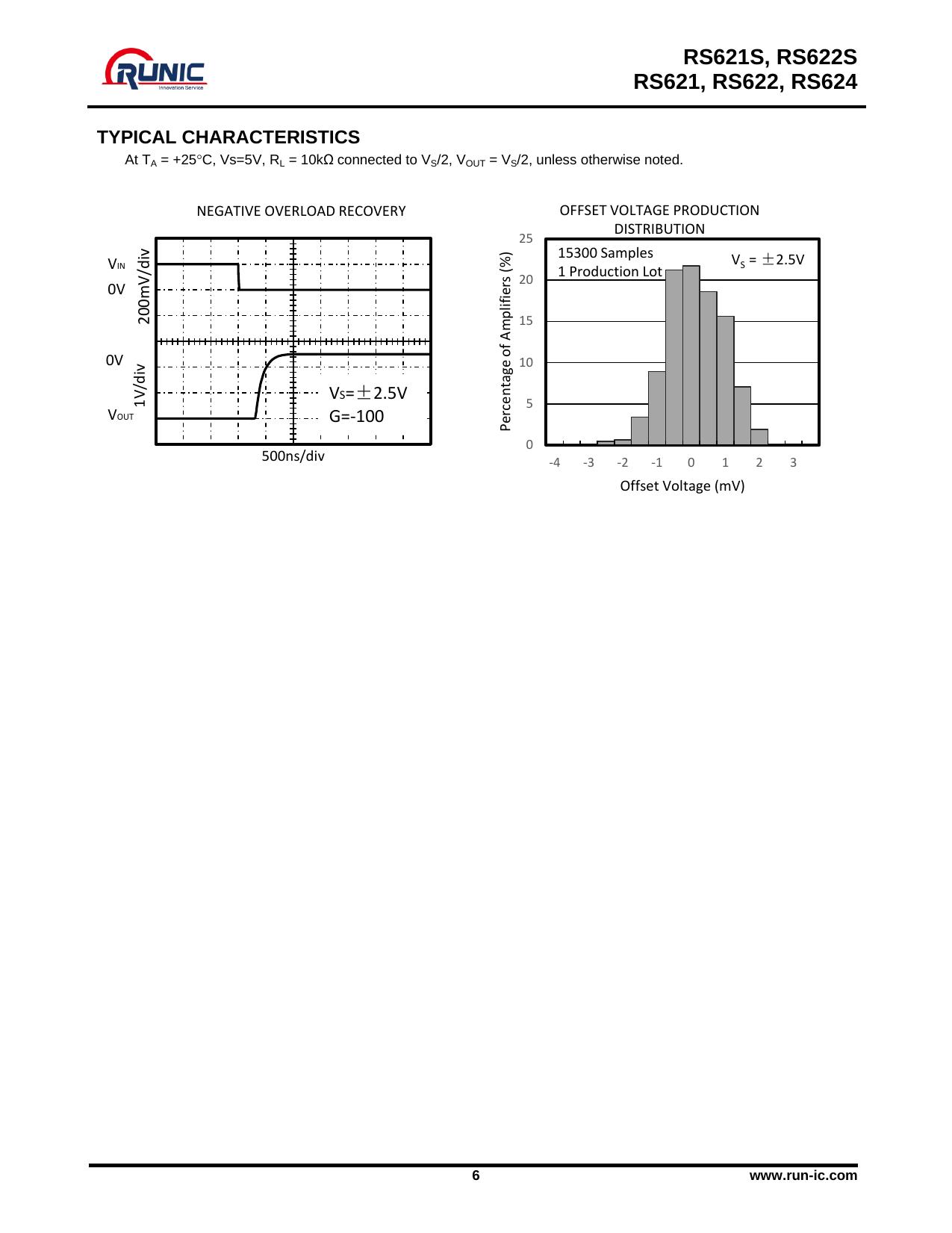

RS621S, RS622S RS621, RS622, RS624 7MHz, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES DESCRIPTION HIGH GAIN BANDWIDTH:7MHz RAIL-TO-RAIL INPUT AND OUTPUT 0.7mV Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V SUPPLY RANGE: +2.5V to +5.5V SHUTDOWN: RS621S/RS622S SPECIFIED UP TO +125°C MicroSIZE The RS62X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 3.7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS621S, RS622S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The RS62X families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V. PACKAGES: SOT23-5, SOT23-6 APPLICATIONS SENSORS PHOTODIODE AMPLIFICATION ACTIVE FILTERS TEST EQUIPMENT DRIVING A/D CONVERTERS PIN CONFIGURATIONS +IN 3 + - 4 -IN 6 1 V- 2 +IN 3 + - NC V+ 5 EN -IN 2 4 -IN +IN 3 V- 8 1 NC 7 V+ 6 OUT 5 4 OUT A 2 - +IN A 3 V- 4 En A 5 NC V+ 9 OUT B - 8 -IN B 7 +IN B 6 En B 14 OUT D 13 -IN D 1 -IN A SOT23-6 SOT23-5 10 + 2 OUT + V- V+ - 5 1 RS621 + OUT RS622S RS621S RS621 A B SOIC-8,MSOP-8 MSOP-10 RS621B V+ 1 -IN 2 + NC V- - IN 2 - 3 4 OUT +IN 3 V- 4 8 + 5 1 - + IN RS624 RS622 RS621S 7 EN V+ 6 OUT 5 NC OUT A -IN A 2 +IN A 3 SOT23-5 V- 8 1 + A B+ 4 7 OUTB 6 -IN B 5 SOIC-8 SOIC-8,MSOP-8,TSSOP-8, TDFN2x2-8L,TDFN3x3-8L Note: NC indicates no internal connection V+ +IN B OUT A 1 -IN A 2 +IN A 3 12 +IN D V+ 4 11 V- +IN B 5 10 +IN C -IN B 6 9 -IN C OUT B 7 8 OUT C A - + - + B D + - + C SOIC-14,TSSOP-14, TDFN3x2-14L REV B.5 1 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 ABSOLUTE MAXIMUM RATINGS (1) Supply Voltage, V+ to V-...............................................7.0V (2) Input Terminals, Voltage …………... – 0.5 to (V+) + 0.5V (2) Current …………………....…..... ±10mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….………… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C SOT23-5, SOT23-6………………….………………200°C/W MSOP-10, SOIC-8 ,TSSOP-8……….………….... 150°C/W SOIC-14, TSSOP-14………….……….……………100°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................5000V MM ……………………….........………………...……….400V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT RS621 RS621S RS622 RS622S RS624 TEMPERATURE PACKAGE PACKAGE RANGE LEAD MARKING RS621XK -40℃~125℃ SOIC-8 RS621 Tape and Reel,2500 RS621XF -40℃~125℃ SOT23-5 621 Tape and Reel,3000 RS621BXF -40℃~125℃ SOT23-5 621B Tape and Reel,3000 RS621XM -40℃~125℃ MSOP-8 RS621 Tape and Reel,3000 RS621SXK -40℃~125℃ SOIC-8 RS621S Tape and Reel,2500 RS621SXH -40℃~125℃ SOT23-6 621S Tape and Reel,3000 RS622XK -40℃~125℃ SOIC-8 RS622 Tape and Reel,2500 RS622XM -40℃~125℃ MSOP-8 RS622 Tape and Reel,3000 RS622XTDE8 -40℃~125℃ TDFN2x2-8L RS622 Tape and Reel,3000 RS622XTDC8 -40℃~125℃ TDFN3x3-8L RS622 Tape and Reel,3000 RS622XQ -40℃~125℃ TSSOP-8 RS622 Tape and Reel,3000 RS622SXN -40℃~125℃ MSOP-10 RS622S Tape and Reel,3000 RS624XP -40℃~125℃ SOIC-14 RS624 Tape and Reel,2500 RS624XQ -40℃~125℃ TSSOP-14 RS624 Tape and Reel,3000 RS624XTDB14 -40℃~125℃ TDFN3x2-14L RS624 Tape and Reel,3000 ORDERING NUMBER 2 PACKAGE OPTION www.run-ic.com RS621S, RS622S RS621, RS622, RS624 ELECTRICAL CHARACTERISTICS (At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted.) PARAMETER CONDITIONS TJ RS621S,RS622S, RS621,RS622,RS624 MIN TYP MAX UNIT 5.5 V 600 800 uA POWER SUPPLY Vs IQ 25°C Operating Voltage Range Quiescent Current/Amplifier PSRR Power-Supply Rejection Ratio 2.5 25°C 25°C Vs= 2.5V to 5.5V Vcm =(V-)+0.5V –40°C to 125°C 78 93 dB 72 INPUT Vos Input Offset Voltage 25°C Vos TC Input Offset Voltage Average Drift -40°C to 125°C IB Input Bias Current Ios Input Offset Current Vcm Common-Mode Voltage Range CMRR Common-Mode Rejection Ratio 0.7 3 mV 2 uV/°C 25°C 1 10 pA 25°C 1 10 pA 5.6 V Vs=5.5V 25°C -0.1 Vs = 5.5V, Vcm =-0.1V to 4V 25°C 74 –40°C to 125°C 68 Vs = 5.5V, Vcm = -0.1V to 5.6V 25°C 62 –40°C to 125°C 60 RL =2KΩ, Vo = 0.15V to 4.85V 25°C 96 –40°C to 125°C 83 25°C RL = 10kΩ, Vo = 0.05V to 4.95V –40°C to 125°C 98 92 dB 83 OUTPUT AOL Open-Loop Voltage Gain dB 106 85 25°C 25°C 40 7 mV 25°C 50 mA Slew Rate Gain-Bandwidth Product 25°C 3.7 V/us 25°C 7 MHz Phase Margin 25°C 64 ° 0.5 us 0.5 us Output Swing From Rail Iout RL = 2KΩ RL = 10kΩ 102 Output Short-Circuit Current FREQUENCY RESPONSE SR GBP Φm ts Settling Time, 0.1% Overload Recovery Time V IN • Gain ≥ V s NOISE en Input-Referred Voltage Noise f = 1 kHz 25°C 11 nV/√Hz f = 10 kHz 25°C 7.5 nV/√Hz ENABLE/SHUTDOWN(RS621S,RS622S) IQ(OFF) Supply Current in Shutdown 25°C <1 uA t OFF 25°C 3 us t ON 25°C 20 VL VH us Shut Down 25°C V− (V-)+0.8 V Amplifier Is Active 25°C (V-)+2 V+ V 3 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩconnected to VS/2, VOUT = VS/2, unless otherwise noted. COMMON−MODE REJECTION RATIO vs FREQUENCY OPEN−LOOP GAIN AND PHASE vs FREQUENCY Phase 100 120 80 100 60 80 40 60 20 40 0 20 -20 10 1K 100K 120 140 100 CMRR(dB) 120 Open-Loop Gain(dB) 160 Gain Phase Margin (°) 140 80 60 40 0 10M 20 1 10 Frequency(Hz) INPUT VOLTAGE NOISE SPECTRAL DENSITY vs FREQUENCY Voltage Noise (nV/√Hz) 1000 10K 100 PSRR(dB) 100 10 80 60 40 20 1 10 100 1K 10K 1 100K 10 100 1K 10K Frequency(KHz) Vs=5V Frequency(Hz) QUIESCENT CURRENT vs TEMPERATURE QUIESCENT CURRENT vs TEMPERATURE 0.8 0.8 Quiescent Current(mA) Quiescent Current(mA) 1K POWER−SUPPLY REJECTION RATIO vs FREQUENCY 120 | | 100 Frequency(KHz) Vs=5V 0.7 0.6 0.5 0.7 0.6 0.5 0.4 0.4 -40 -20 0 -40 -20 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 Temperature(℃) Vs=5V Temperature(℃) Vs=2.7V 4 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩconnected to VS/2, VOUT = VS/2, unless otherwise noted. SOURCE CURRENT vs TEMPERATURE 60 58 56 54 52 50 48 46 44 42 40 Source Current(mA) Sink Current(mA) SINK CURRENT vs TEMPERATURE -40 -20 0 70 68 66 64 62 60 58 56 54 52 50 48 46 44 42 40 20 40 60 80 100 120 140 -40 -20 0 Temperature(℃) INPUT BIAS CURRENT vs TEMPERATURE 20 40 60 80 100 120 140 Temperature(℃) SMALL−SIGNAL STEP RESPONSE 10K 50mV/div 100 10 1 0.1 -40 -20 0 20 40 60 200ns/div 80 100 120 140 Temperature(℃) POSITIVE OVERLOAD RECOVERY CL=100PF 200mV/div LARGE−SIGNAL STEP RESPONSE 0V VIN 1V/div VOUT 0V 400ns/div VS=±2.5V G=-100 1V/div Input Bias Current(pA) CL=100PF 1K 500ns/div 5 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩconnected to VS/2, VOUT = VS/2, unless otherwise noted. NEGATIVE OVERLOAD RECOVERY VIN 0V 1V/div 0V Percentage of Amplifiers (%) 200mV/div 25 VS=±2.5V G=-100 VOUT 20 OFFSET VOLTAGE PRODUCTION DISTRIBUTION 15300 Samples 1 Production Lot VS = ±2.5V 15 10 5 0 500ns/div -4 -3 -2 -1 0 1 2 3 Offset Voltage (mV) 6 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 APPLICATION NOTES The RS621, RS622, RS624, RS621S, RS622S are high precision, rail-to-rail operational amplifiers that can be run from a single-supply voltage 2.5V to 5.5V (±1.25V to ±2.75V). Supply voltages higher than 7V (absolute maximum) can permanently damage the amplifier. +Vs 10uF 0.1uF Vin Rail-to-rail input and output swing significantly increases dynamic range, especially in low-supply applications. Vip Vout RS62X 10uF 0.1uF Good layout practice mandates use of a 0.1uF capacitor place closely across the supply pins. -Vs RS621S/RS622S ENABLE FUNCTION Figure1. Amplifier with Bypass Capacitors The RS621S/RS622S includes a shutdown mode. Under logic control, the amplifiers can be switched from normal mode to a standby current of 1uA. When the Enable pin is connected to high, the amplifier is active. Connecting Enable low disables the amplifier, and places the amplifier, and place the output in a high-impedance state. INSTRUMENTATION AMPLIFIER In the three-op amp, instrumentation amplifier configuration shown in Figure2, V1 LAYOUT GUIDELINS RS62X Attention to good layout practices is always recommended. Keep traces short. When possible, use a PCB ground plane with surface-mount components placed as close to the device pins as possible. Place a 0.1uF capacitor closely across the supply pins. These guidelines should be applied throughout the analog circuit to improve performance and provide benefits such as reducing the EMI susceptibility. RS62X VOUT RS62X V2 Figure2. Amplifier instrumentation amplifier 7 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 PACKAGE OUTLINE DIMENSIONS SOT23-5 D 1.90 b 2.59 E1 E 0.99 0.69 0.95 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 L A1 Symbol c θ Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 8 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 SOT23-6 D 1.90 b 2.59 E E1 0.99 Pin1 Index Area 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 9 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 MSOP-8 b e E E1 4.8 1.02 D 0.65 0.41 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.250 0.380 0.010 0.015 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 e 0.650(BSC) 0.026(BSC) E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 10 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 MSOP-10 b e E 4.65 E1 1.02 0.31 D 0.5 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol A c L Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.180 0.280 0.007 0.011 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 e 0.50(BSC) 0.020(BSC) E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 11 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TSSOP-8 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol H C A θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 12 1° 7° www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TSSOP-14 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol H C A θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 4.860 5.100 0.191 0.201 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 13 1° 7° www.run-ic.com RS621S, RS622S RS621, RS622, RS624 SOIC-8 b e 5.2 E E1 2.2 D 1.27 0.6 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 c 0.170 0.250 0.007 0.010 D 4.800 5.000 0.189 0.197 e 1.270(BSC) 0.050(BSC) E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 14 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 SOIC-14 e b 5.2 1.27 E E1 0.6 D 1.27 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 c A θ L Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.310 0.510 0.012 0.020 c 0.100 0.250 0.004 0.010 D 8.450 8.850 0.333 0.348 e 1.270(BSC) 0.050(BSC) E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 15 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TDFN-2x2-8L E e D E1 L b D1 TOP VIEW BOTTOM VIEW 0.50 A1 0.70 1.95 A2 A 0.65 0.24 1.20 SIDE VIEW RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 0.700 0.800 0.028 0.031 A1 0.000 0.050 0.000 0.002 A2 0.203(TYP) 0.008(TYP) b 0.180 0.300 0.007 0.012 D 1.900 2.100 0.075 0.083 D1 1.100 1.300 0.043 0.051 E 1.900 2.100 0.075 0.083 E1 0.600 0.800 0.024 0.031 e L 0.500(TYP) 0.250 0.020(TYP) 0.450 16 0.010 0.018 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TDFN-3x3-8L E e D E1 L b D1 TOP VIEW BOTTOM VIEW 0.65 1.70 A1 2.86 A2 A 0.70 0.30 SIDE VIEW 2.40 RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 0.700 0.800 0.028 0.031 A1 0.000 0.050 0.000 0.002 A2 0.203 0.008 b 0.250 0.350 0.010 0.014 D 2.900 3.100 0.114 0.122 D1 2.350 2.450 0.093 0.096 E 2.900 3.100 0.114 0.122 E1 1.650 1.750 0.065 0.069 e L 0.650 TYP 0.370 0.026 TYP 0.470 17 0.015 0.019 www.run-ic.com RS621S, RS622S RS621, RS622, RS624 TDFN-3x2-14L D D1 b E E1 L e 2 1 BOTTOM VIEW 1 2 TOP VIEW 0.2 SIDE VIEW A2 A1 A 1.9 0.8 0.6 0.4 2.5 RECOMMENDED LAND PATTERN(Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 0.700 0.800 0.028 0.031 A1 0.000 0.050 0.000 0.002 A2 0.200 0.008 b 0.150 0.250 0.006 0.010 D 2.900 3.100 0.114 0.122 D1 2.400 2.600 0.094 0.102 E 1.900 2.100 0.075 0.083 E1 0.700 0.900 0.028 0.035 e L 0.400 TYP 0.300 0.016 TYP 0.400 18 0.012 0.016 www.run-ic.com
